Shunli Dc Gear Motor 3v 4v 6v 12v 12mm Gearbox Motor N20 DC Gear Motor Micro Gearmotor 400 80RPM 270RPM for Lock
Shunli Dc Gear Motor 3v 4v 6v 12v 12mm Gearbox Motor N20 DC Gear Motor Micro Gearmotor 400 80RPM 270RPM for Lock
Shunli Dc Gear Motor 3v 4v 6v 12v 12mm Gearbox Motor N20 DC Gear Motor Micro Gearmotor 400 80RPM 270RPM for Lock
Shunli Dc Gear Motor 3v 4v 6v 12v 12mm Gearbox Motor N20 DC Gear Motor Micro Gearmotor 400 80RPM 270RPM for Lock
Shunli Dc Gear Motor 3v 4v 6v 12v 12mm Gearbox Motor N20 DC Gear Motor Micro Gearmotor 400 80RPM 270RPM for Lock
1 / 5
Shunli Dc Gear Motor 3v 4v 6v 12v 12mm Gearbox Motor N20 DC Gear Motor Micro Gearmotor 400 80RPM 270RPM for Lock
Shunli Dc Gear Motor 3v 4v 6v 12v 12mm Gearbox Motor N20 DC Gear Motor Micro Gearmotor 400 80RPM 270RPM for Lock
Shunli Dc Gear Motor 3v 4v 6v 12v 12mm Gearbox Motor N20 DC Gear Motor Micro Gearmotor 400 80RPM 270RPM for Lock
Shunli Dc Gear Motor 3v 4v 6v 12v 12mm Gearbox Motor N20 DC Gear Motor Micro Gearmotor 400 80RPM 270RPM for Lock
Shunli Dc Gear Motor 3v 4v 6v 12v 12mm Gearbox Motor N20 DC Gear Motor Micro Gearmotor 400 80RPM 270RPM for Lock

Shunli Dc Gear Motor 3v 4v 6v 12v 12mm Gearbox Motor N20 DC Gear Motor Micro Gearmotor 400 80RPM 270RPM for Lock

Send Inquiry

Product Description

Product Overview

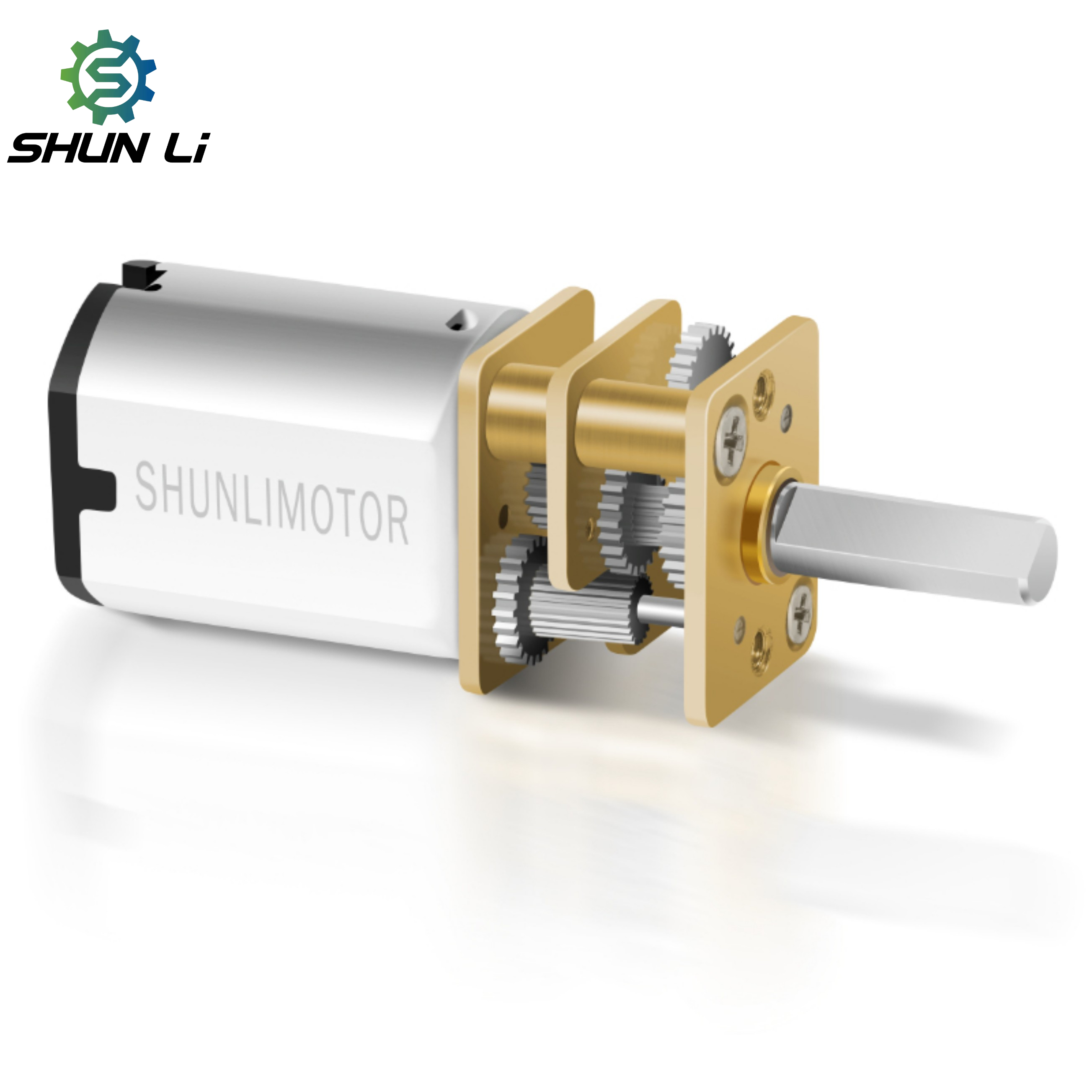

Product Dimensional Drawing
Product Model GM12AMN10/N20/N30
Gearbox Length 9mm-12.1mm
Speed 55RPM-2500RPM
Voltage 4.6V/4.5V/6V
Torque 5.5 N.m/2.8 N.m/4.0 N.m
Support Customization Transmission Dimensions And Motor Parameters Can Be Customized

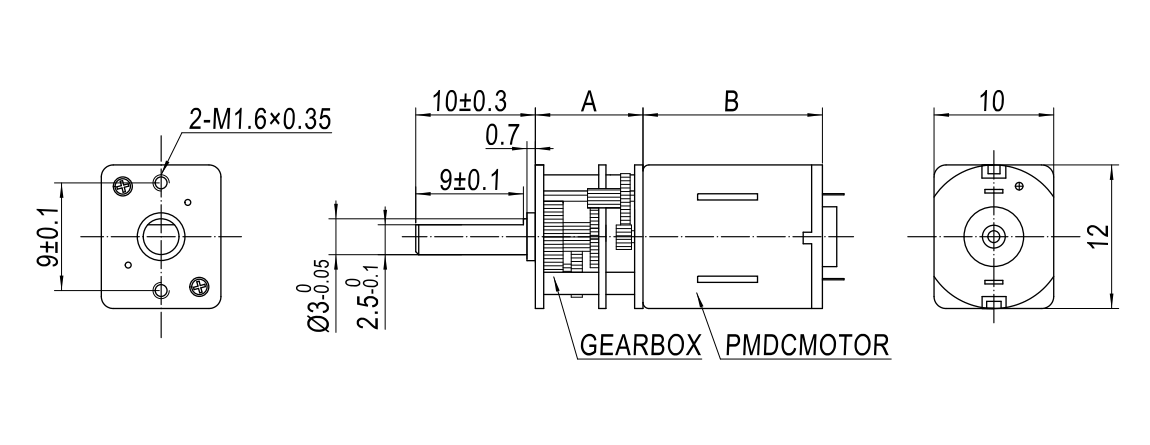

Technical Specifications 1

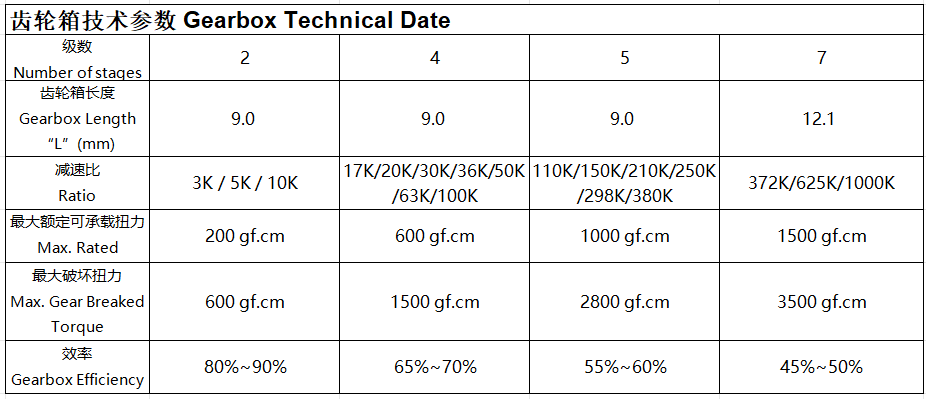

Technical Specifications 2

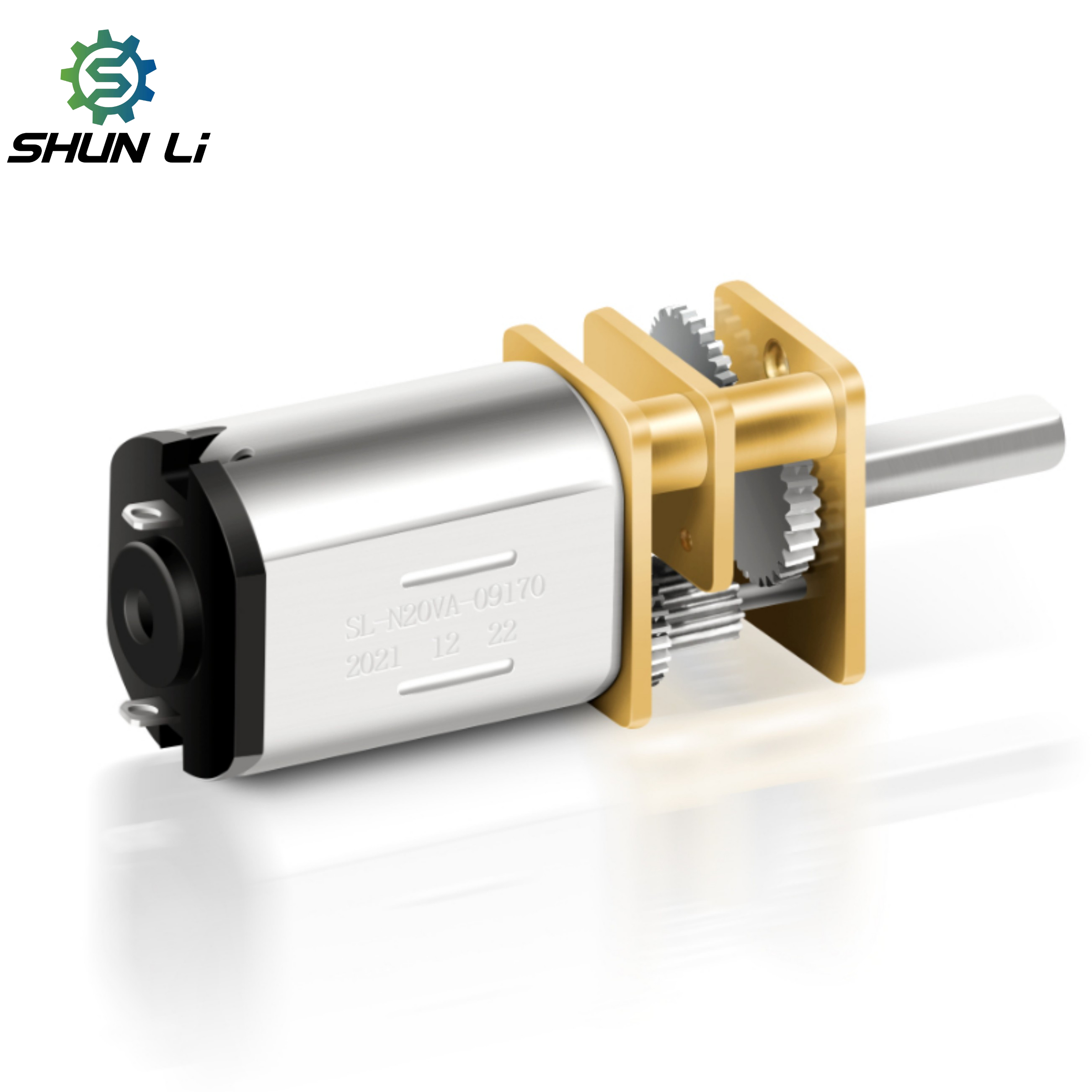

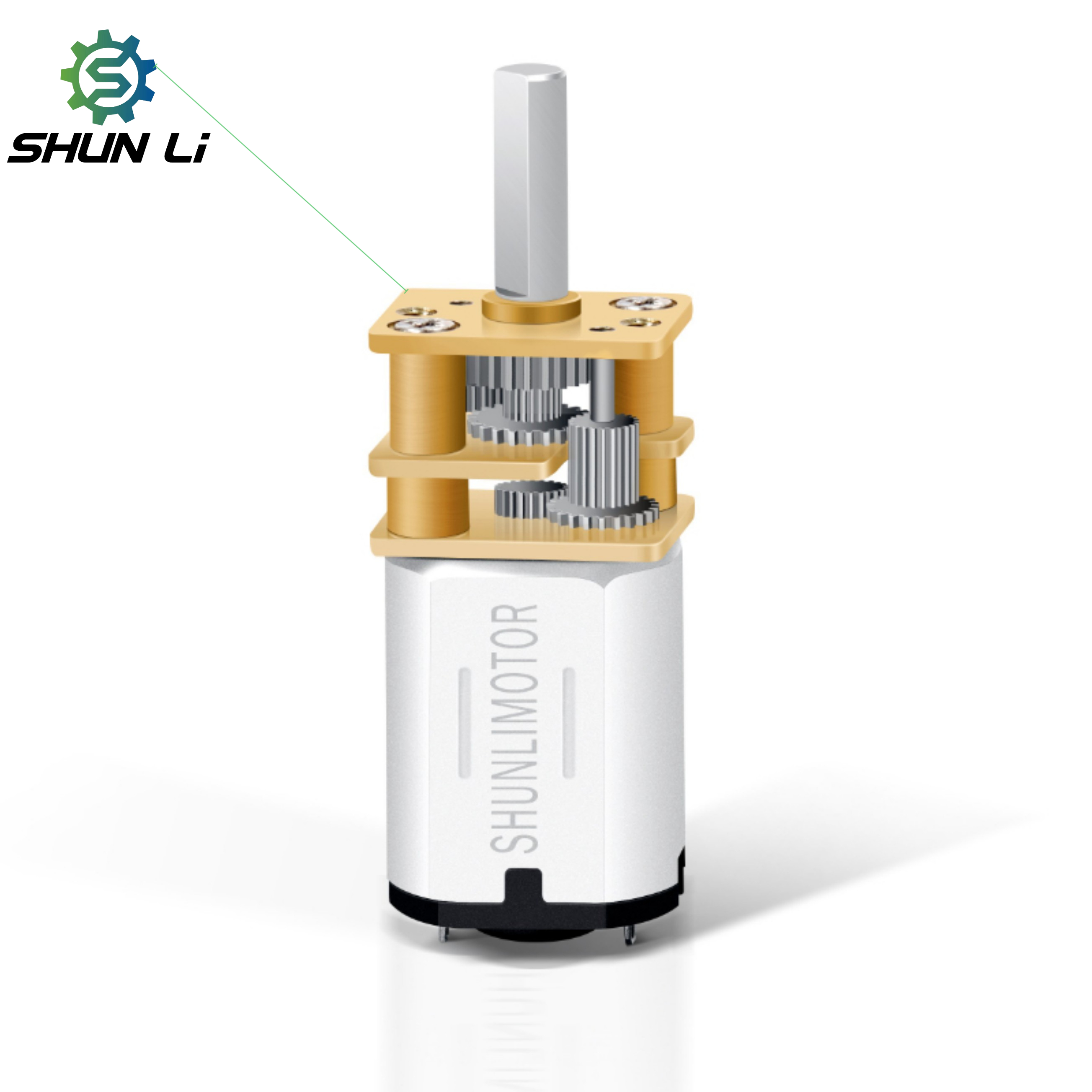

Product View 1 Product View 2 Product View 3 Product View 4 Product View 5 Product View 6
Frequently Asked Questions
1. Are you trading company or manufacturer? We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
2. What is the payment term for a new customer? We can draw up an Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customers can also pay with PayPal or TT etc.
3. I can't find a suitable motor on your website, can you customize the motor for me? Yes, we can customize a suitable motor according to our customer's requirements.
4. Do you have certificates for the motors? Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.
5. How is your Quality Control? We have professional checking staff on every production line process. After finishing the whole motor, we use precision machines for testing, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers etc.
