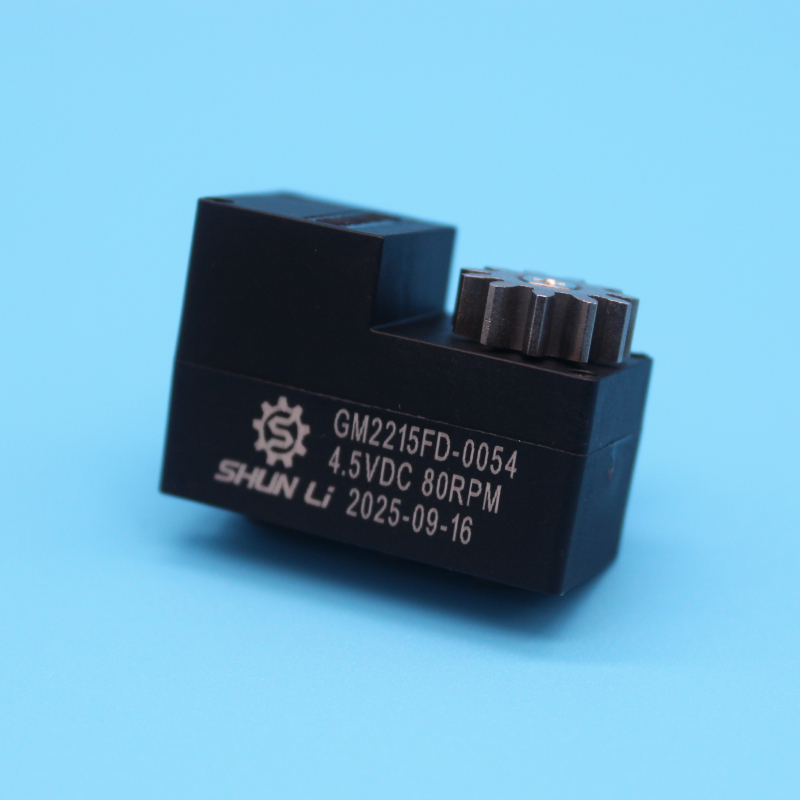

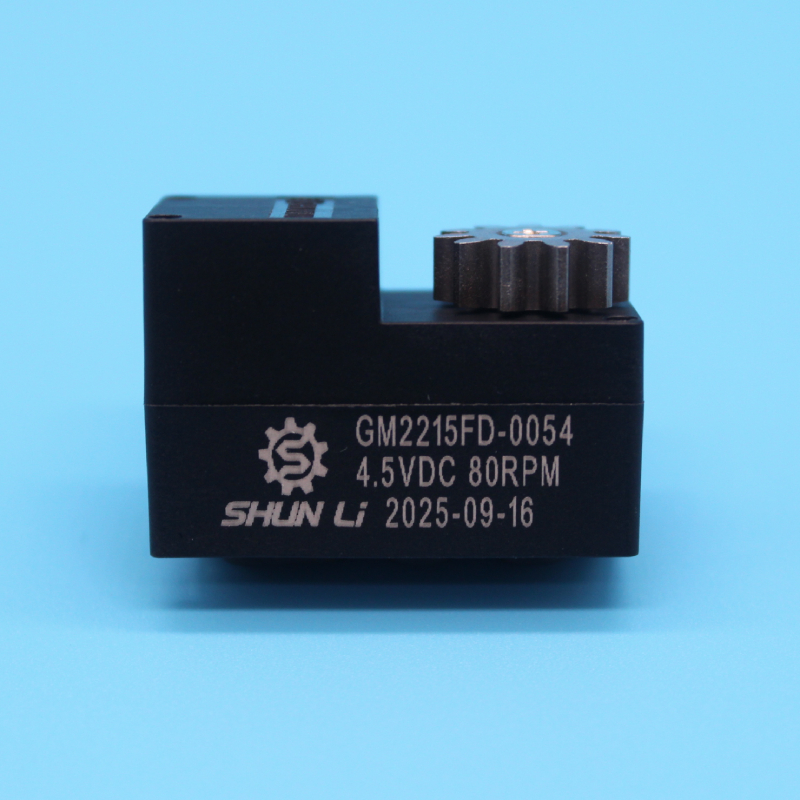

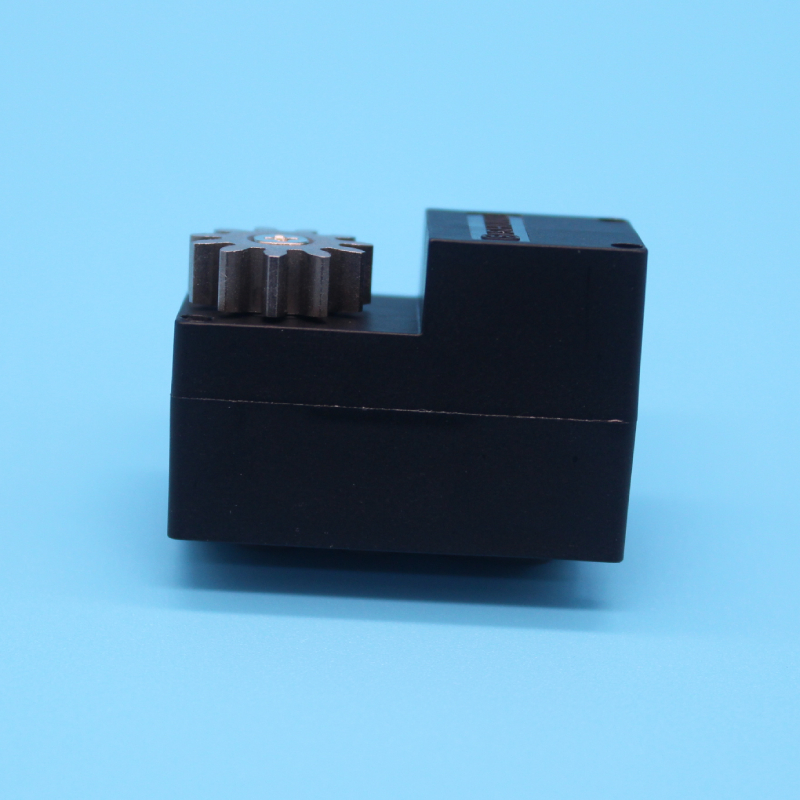

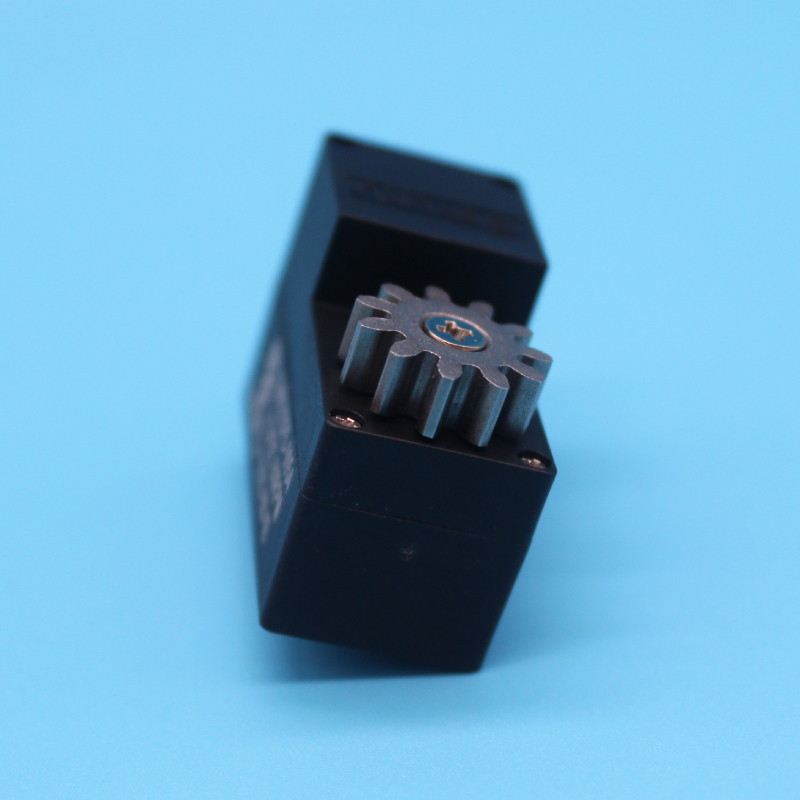

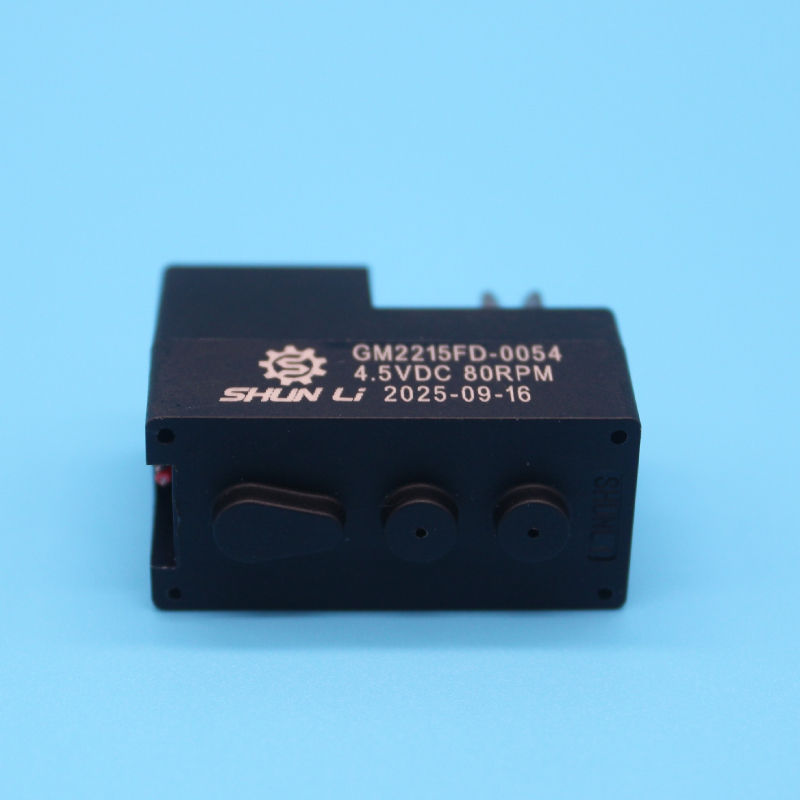

Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock

Product Description

Product Banner

Product Description

2215 smart lock motor steering gear automatic door lock micro motor gearbox reduction motor

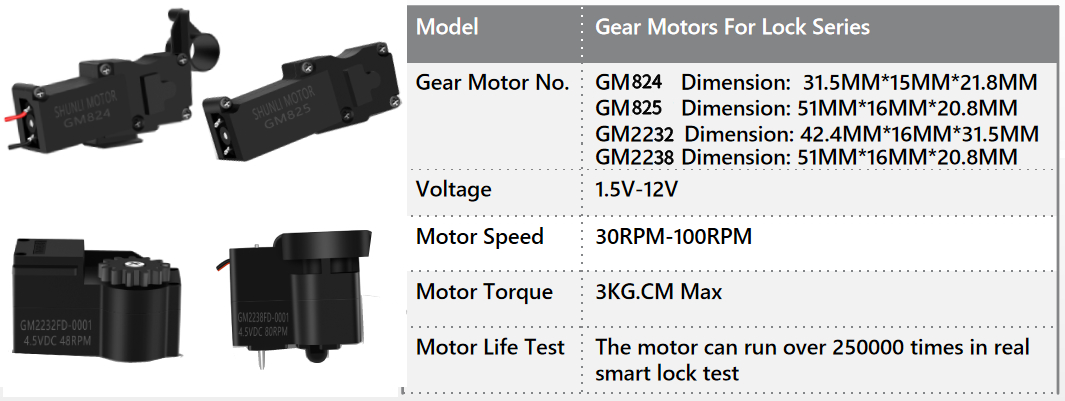

Smart Lock Motor

Customized Specification & Reference Drawings

For specific motor requirements and customized specifications, please reach out for technical support.
Model: GM2215

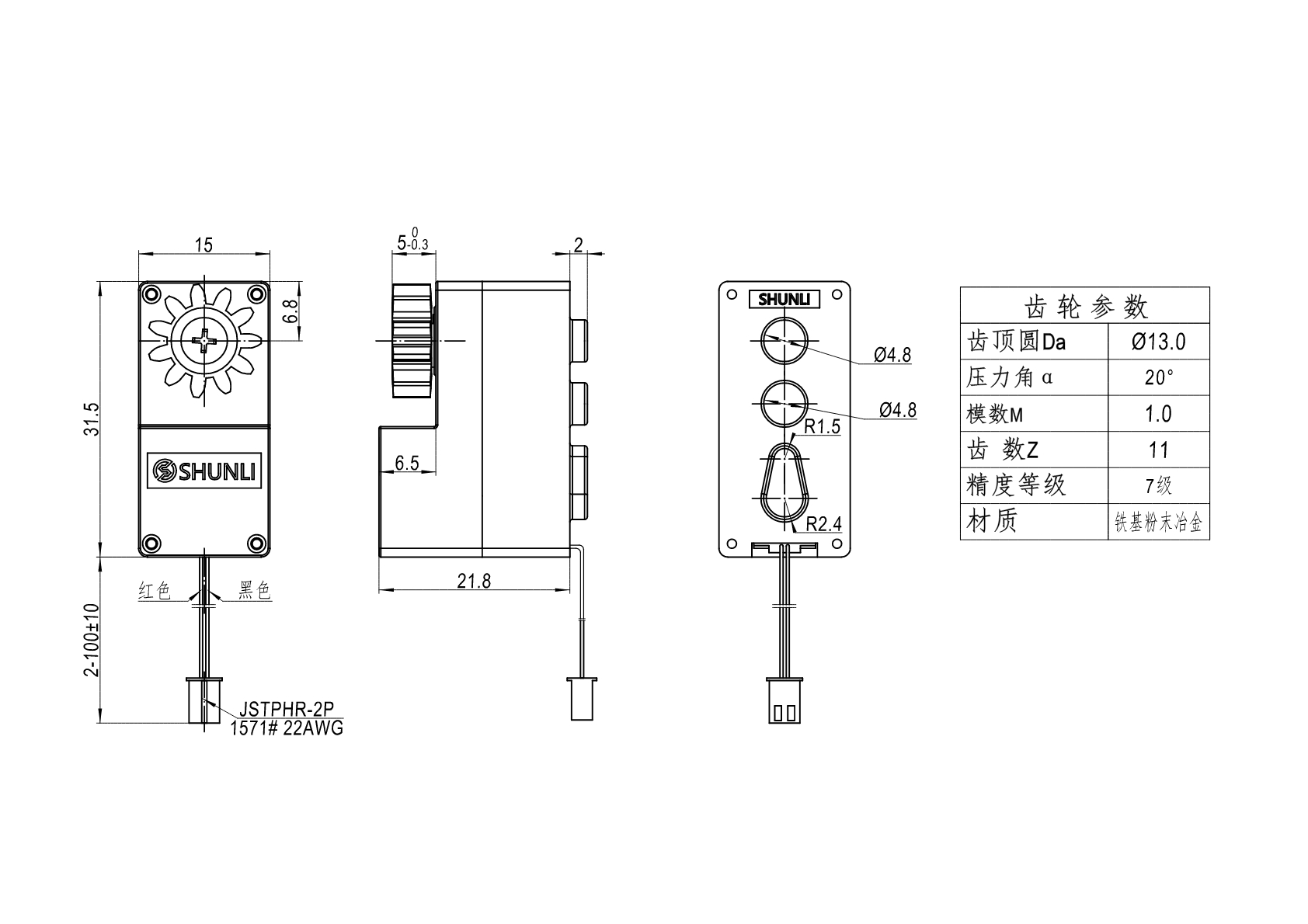

GM2215 Drawing
Model: GM2219

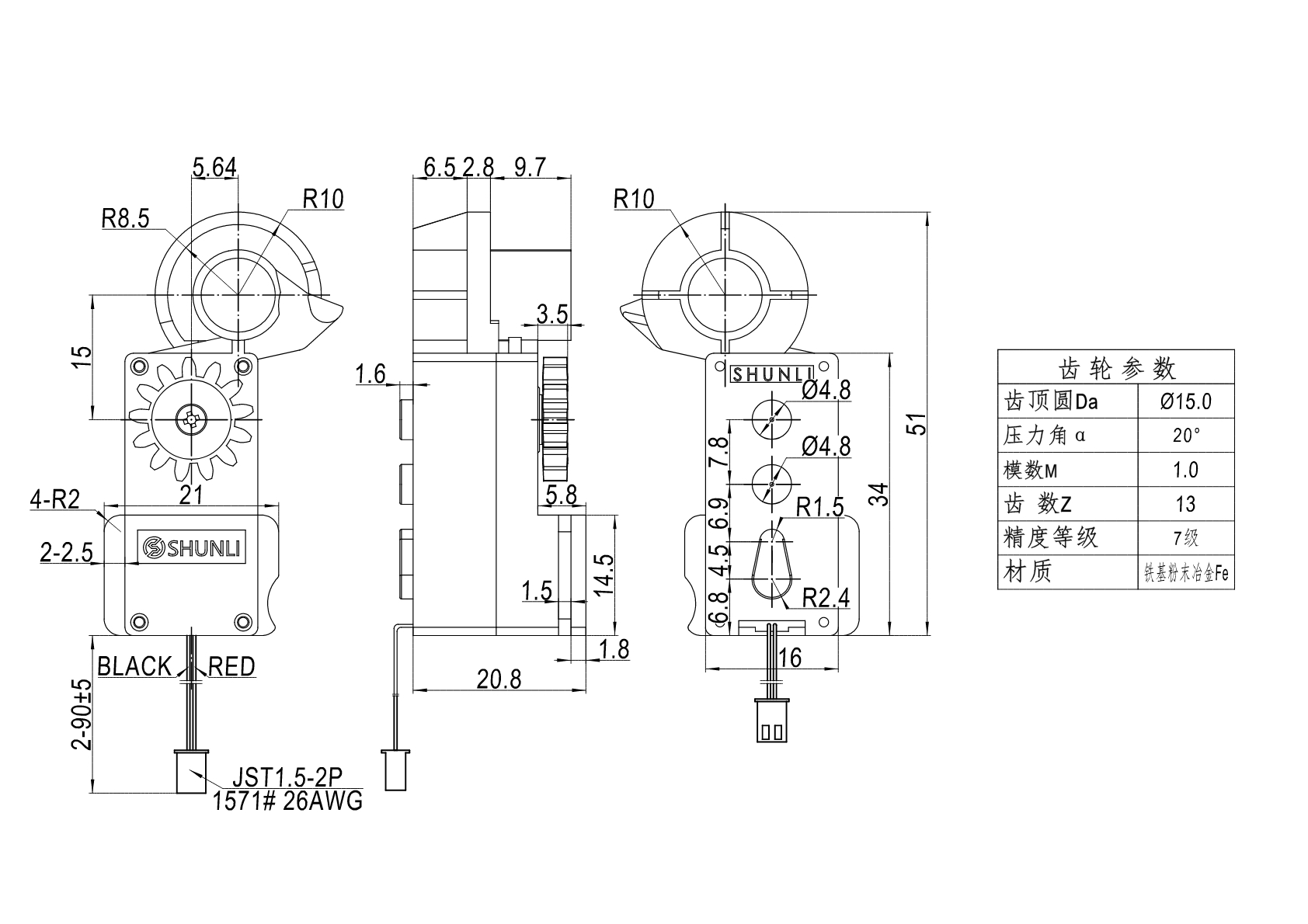

GM2219 Drawing

Reference Datasheet

Gearbox Technical Data

Ratio 199K / 241K / 265K
Max. Rated Torque 1.5~2.5 Kgf.cm
Max. Gear Breaked Torque 4~5 Kgf.cm
Gearbox Efficiency 45%~60%

Gearmotor Technical Data

Gearmotor Model Ratio Rated Voltage (V) No-Load Rated Stall
Speed (RPM) Current (mA) Speed (RPM) Current (mA) Torque (mN.m) Current (mA) Torque (Kgf.cm)
GM2215FMN20-199K 1:199 4.5 VDC 52 ≤ 50 40 ≤ 120 18 / 180 ≤ 350 0.18 / 1.8
GM2222FMN20-230K 1:230 4.5 VDC 58 ≤ 78 49 ≤ 135 24 / 240 ≤ 450 0.2 / 2.0
GM2219FMN20-265K 1:241 4.5 VDC 58 ≤ 65 50 ≤ 130 24 / 240 ≤ 680 0.2 / 2.0
GM2219FMN20-265K 1:265 4.5 VDC 62 ≤ 75 51 ≤ 140 35 / 350 ≤ 750 0.22 / 2.2

Product Application & Series

Series 1
Series 2
Detail 1

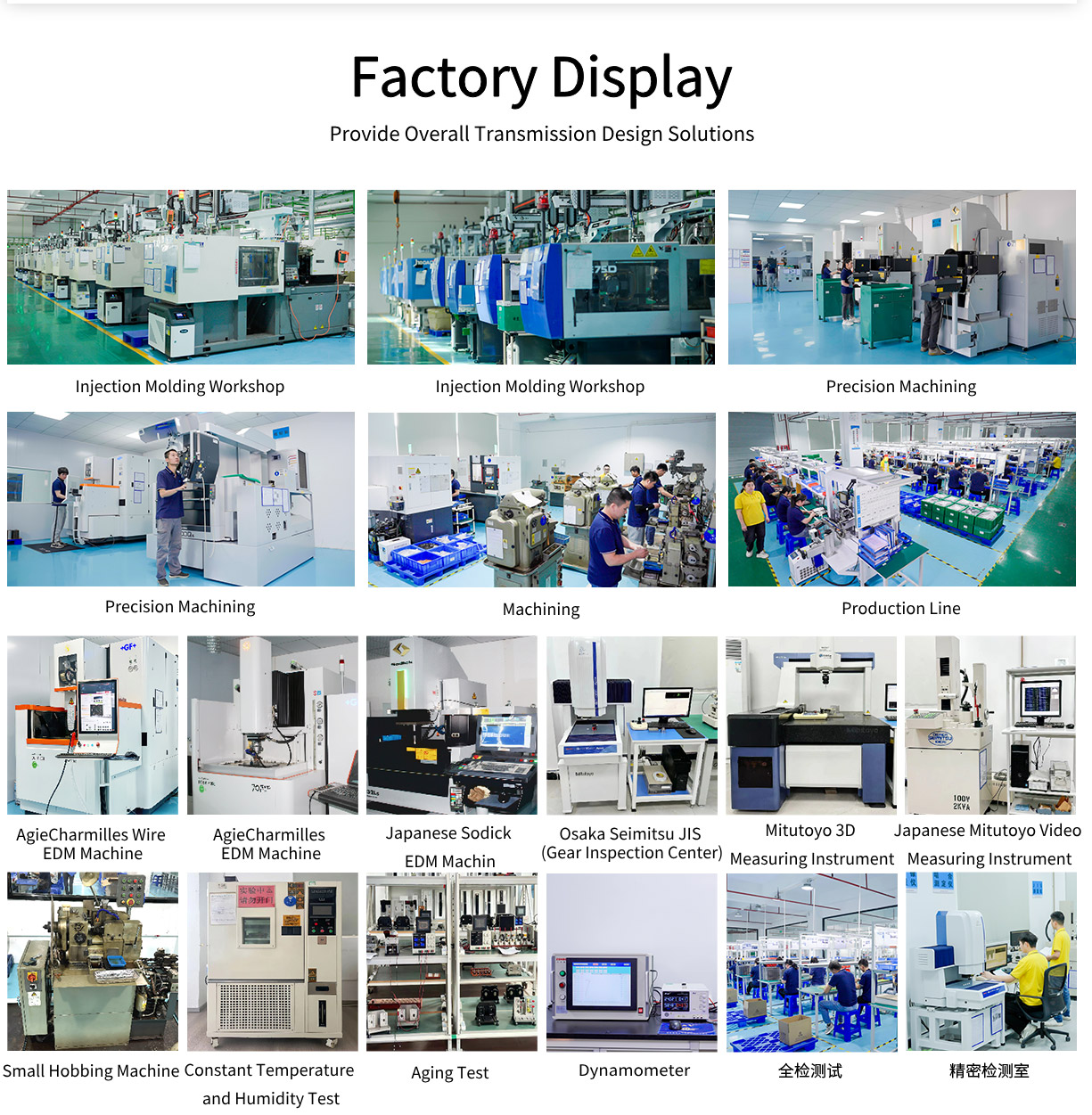

Detail 2
Detail 3
Testing Equipment

Frequently Asked Questions

Are you a trading company or a manufacturer?
We are a professional factory specializing in micro DC motors and DC gear motors with over 14 years of experience.
What are the available payment terms for new customers?
We support multiple payment methods including online Assurance Orders (MasterCard, Visa, etc.), PayPal, and TT transfers for your convenience.
Can you provide customization if I cannot find a suitable motor?
Yes, we specialize in customizing motor specifications to meet our customers' unique application requirements.
What certifications do your motors hold?
Our motors are certified with CE, FCC, and ISO standards. We can also apply for other specific certificates if required by your market.
How do you ensure product quality control?
We maintain professional inspection staff on every production line. Finished motors undergo rigorous testing using Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.
Is technical support available for motor integration?
Yes, our engineering team provides full technical documentation and support to help integrate our motors into your smart lock or automation systems.
