28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v
28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v
28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v
28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v
1 / 4
28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v
28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v
28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v
28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v

28mm Diameter Gear Motor with Reducer and Encorder Dc Planetary Gear Motor 12v 36v

Send Inquiry

Product Description

Product Banner

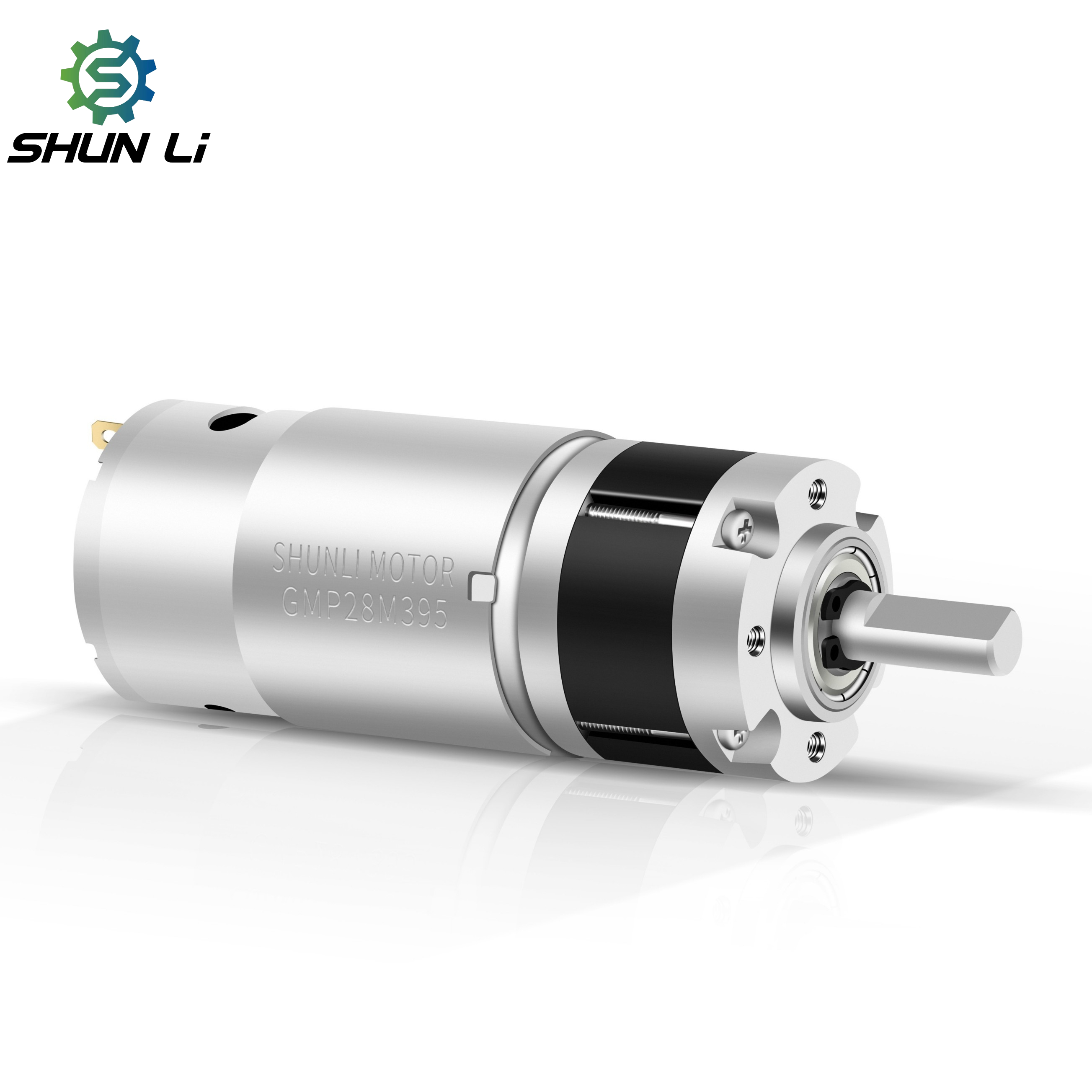

Product View
Technical Specifications
Product Model GMP28M365/385/395
Gearbox Length 21.7~44.8mm
Speed 23.5RPM-885RPM
Voltage 12V
Torque 0.36 N.m/0.06 N.m/1.5 N.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized

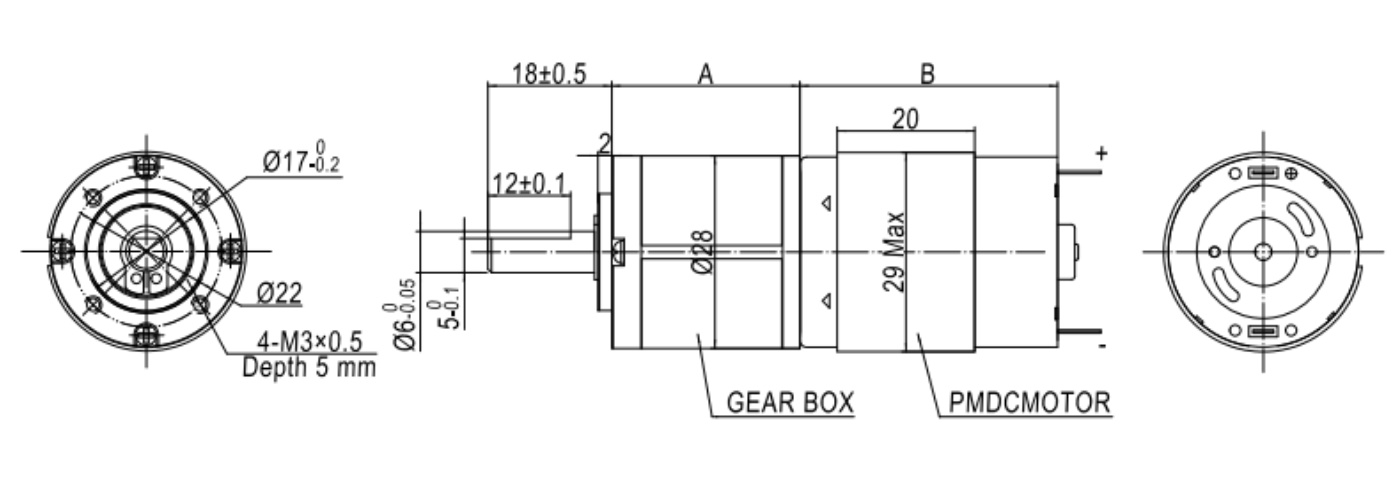

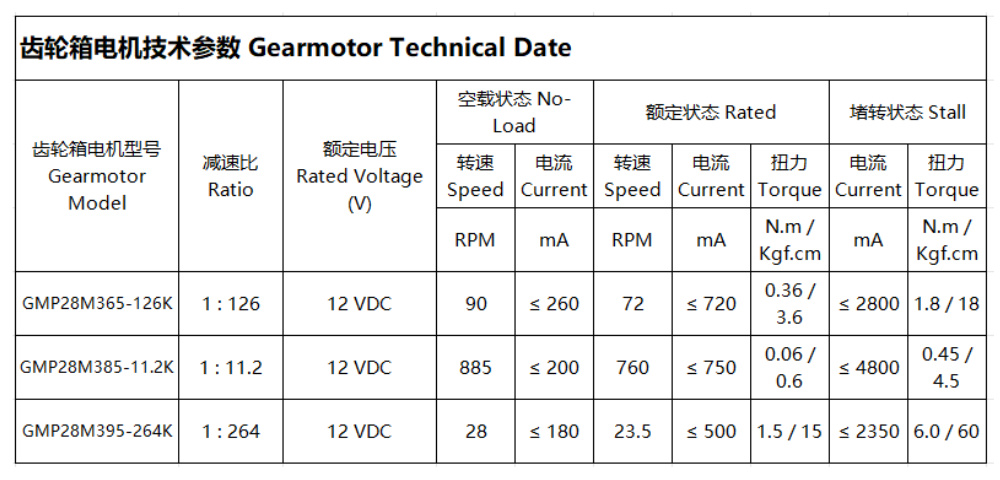

Dimensions Drawing Performance Data

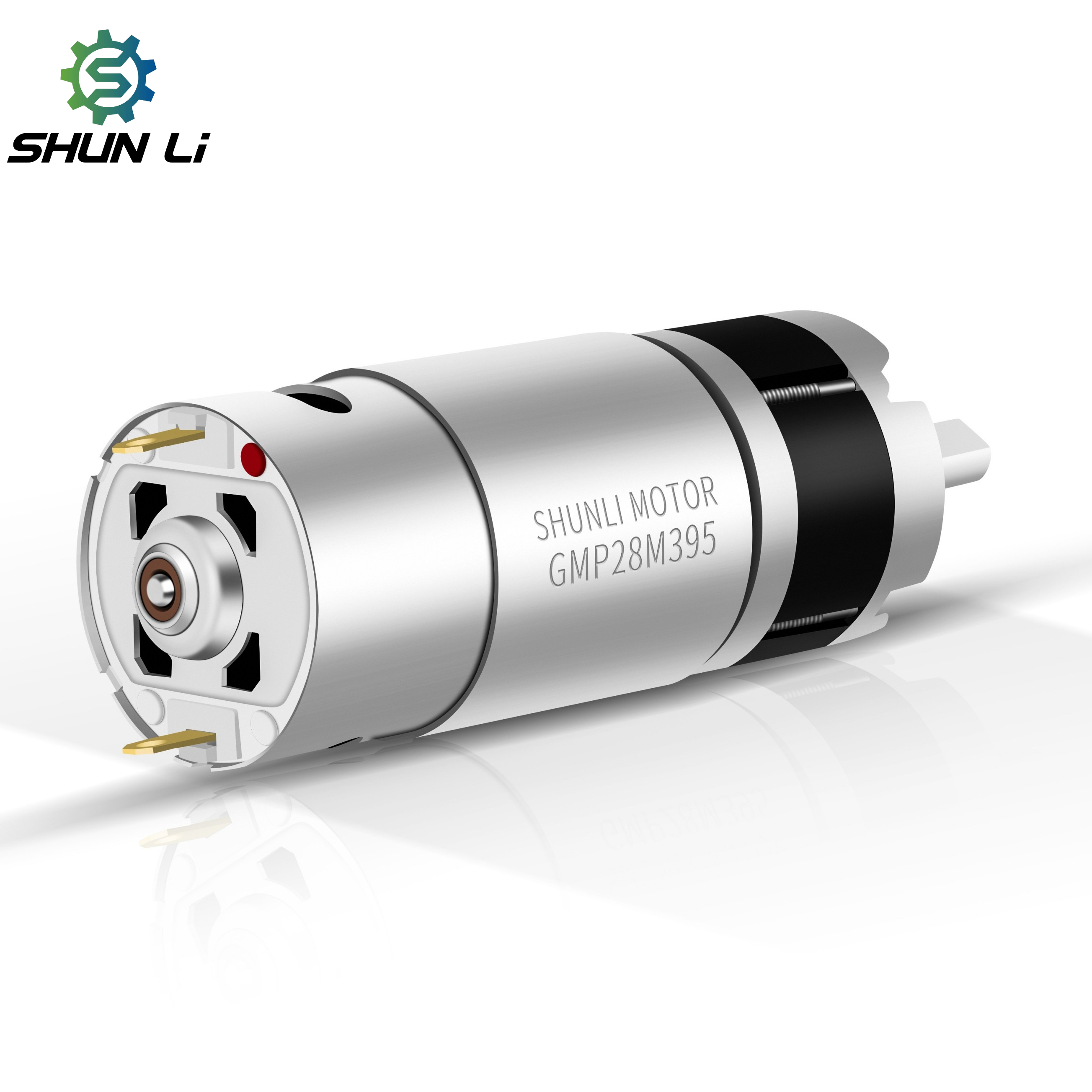

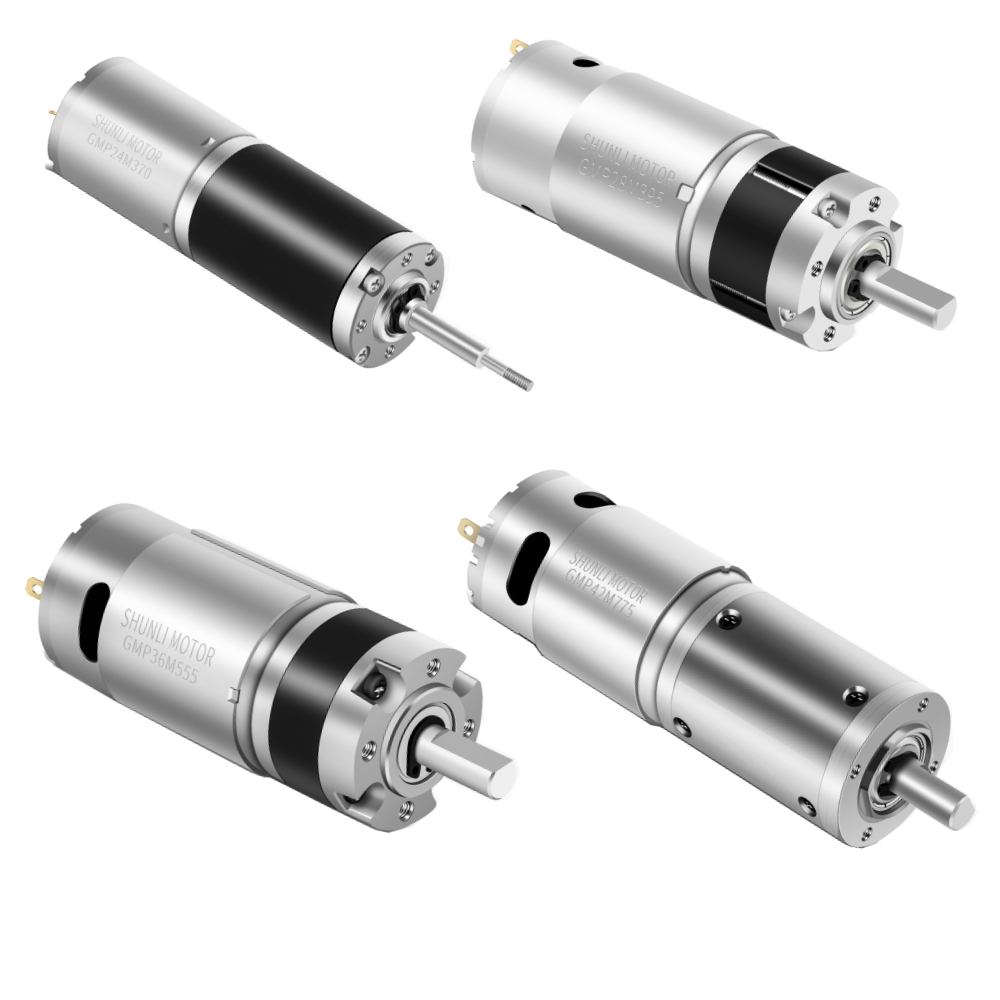

Product Display
Motor Detail 1 Motor Detail 2 Motor Detail 3 Motor Detail 4 Motor Detail 5 Motor Detail 6
Frequently Asked Questions
Are you trading company or manufacturer?
We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
What is the payment term for a new customer?
We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's requirements.
Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.
How is your Quality Control?
We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
What is the standard lead time for production?
Lead times depend on the specific motor model and order quantity. Generally, standard samples are prepared quickly, while bulk orders follow a scheduled production timeline to ensure quality.
