90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
1 / 5
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products
90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products

90 Degree Gearbox N20 5v Micro Dc Worm Gear Motor for Electric Products

Send Inquiry

Product Description

Product Overview
Product Close-up

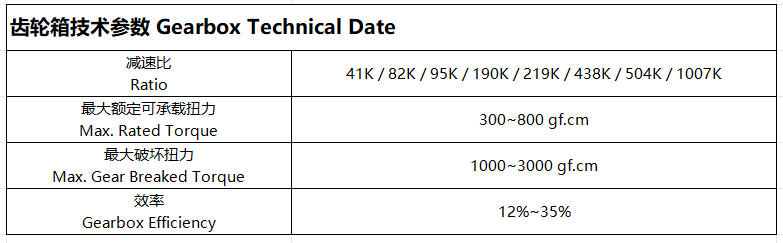

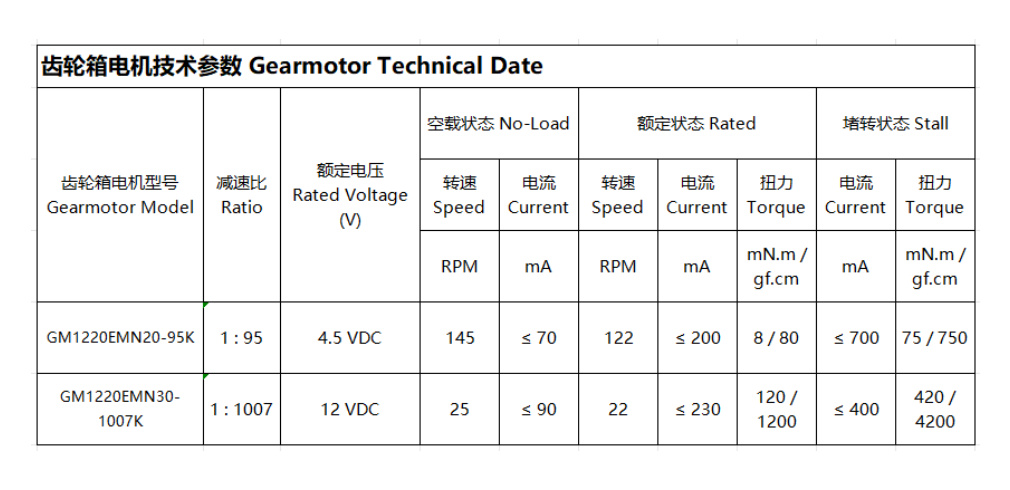

Technical Specifications
Product Model GM1220EMN20/N30
Gearbox Length 20±0.2mm
Speed 22RPM-145RPM
Voltage 4.5V~12V
Rated Torque 8 mN.m/120 mN.m
Support Customization The Transmission Dimensions And Motor Parameters Can Be Customized

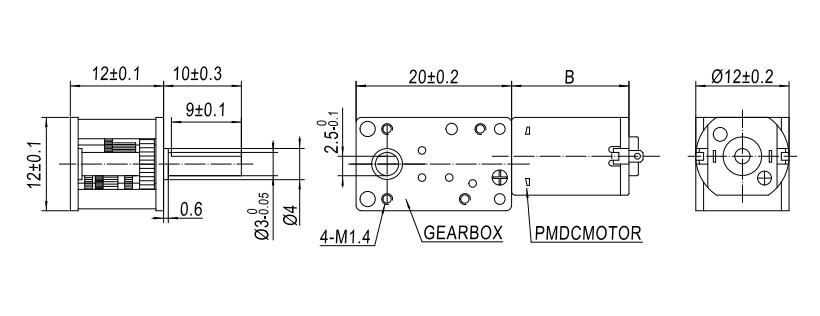

Dimensions Drawing
Performance Curve
High Quality Motor Display
Product Application & Details
Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
What are the payment terms for new customers?
We support online assurance orders which can be paid via Mastercard, Visa, etc. We also accept PayPal and TT (Telegraphic Transfer).
Can you customize a motor if I can't find a suitable one on your website?
Yes, we can customize a suitable motor according to your specific requirements, including dimensions and electrical parameters.
Do your motors carry any certifications?
Yes, our motors are certified with CE, FCC, ISO, and other relevant standards. We can apply for additional certifications if required.
How do you ensure quality control?
We utilize professional inspection staff on every production line. Our quality testing equipment includes Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
What is the standard lead time for customized orders?
Lead times depend on the complexity of the customization and quantity. Please contact our technical team for a detailed production schedule based on your project needs.
