China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
1 / 5
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate
China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate

China High Torque Brushed 12v 24V Dc Gear Reduction Motor for Sliding Gate

Send Inquiry

Product Description

Product Overview
Motor Details
Product Model GM37BM545/555/575
Gearbox Length 50mm-65mm
Speed 17.5RPM-240RPM
Voltage 24V/24V/12V
Torque 0.85 N.m/1.8 N.m/2.0 N.m
Customization Dimensions and Parameters can be customized
i
Technical Specifications & Dimensions

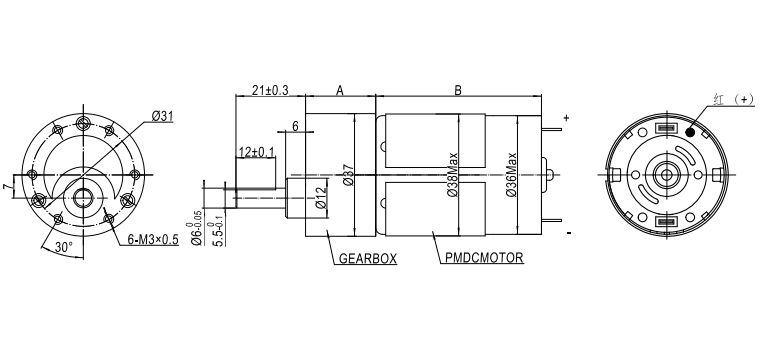

Technical Drawing 1

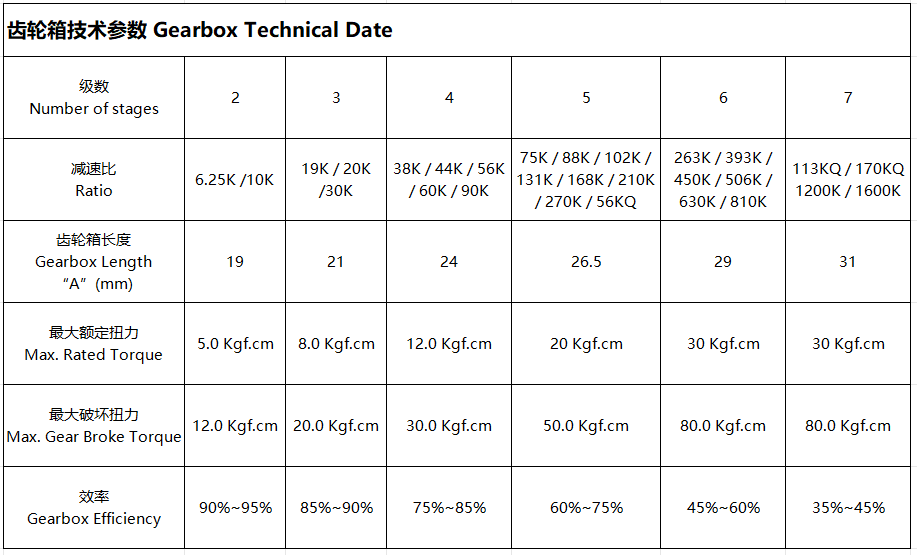

Technical Drawing 2

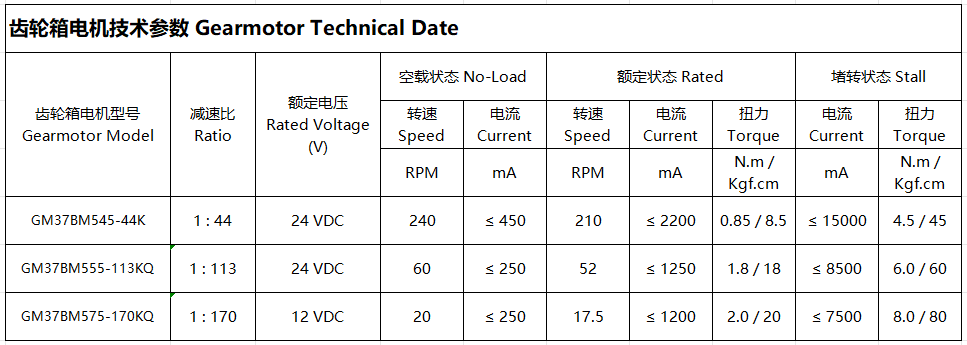

Technical Drawing 3
★

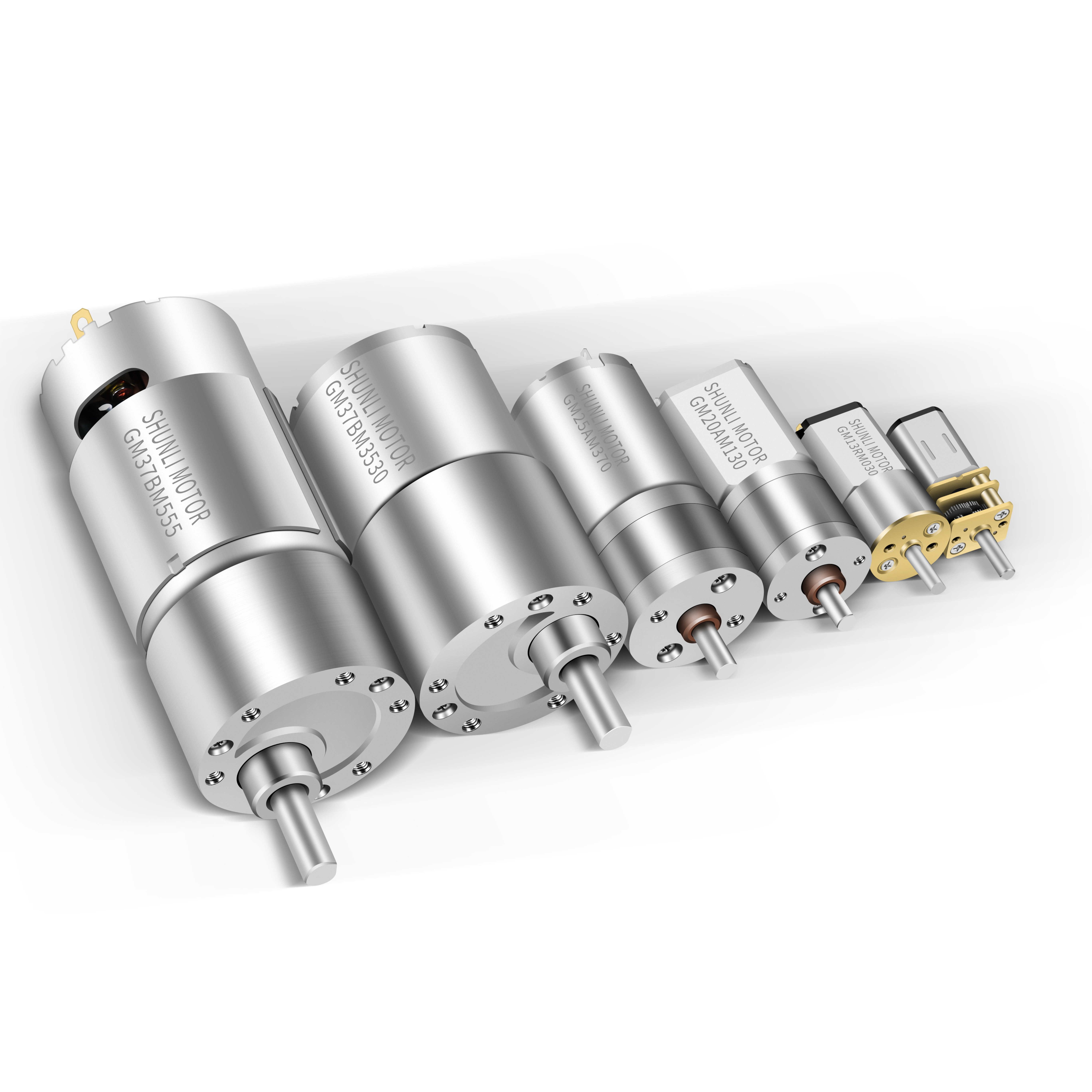

Product Application & Variety
Gallery 1
Gallery 2
Gallery 3
Gallery 4
Gallery 5
Gallery 6
Frequently Asked Questions
1. Are you a trading company or a manufacturer? We are a specialized factory focused on micro DC motors and DC gear motors for over 14 years.
2. What are the payment terms for new customers? New customers can pay online via major cards like Mastercard and Visa, or use PayPal and TT (Telegraphic Transfer).
3. Can you customize a motor if I cannot find a suitable one? Yes, we provide full customization services to modify motor parameters and dimensions according to your specific requirements.
4. What certifications do your motors carry? Our products are certified with CE, FCC, ISO, and other relevant standards. We can also apply for specific certificates if required.
5. How do you handle quality control? We employ professional inspectors on every production line and use advanced testing equipment including hardness testers, 2.5D image testers, salt spray chambers, life testers, and noise testers.
6. What is the typical lead time for customized orders? Lead times depend on the level of customization required, but we maintain efficient production processes to ensure timely delivery for all factory-direct orders.
