Flat Reduction 0.3Nm - 5Nm 12volt Gearbox Motor Dc Gear Motor Gearbox 24v 12v Dc High Torque Electric Motor Gears
Flat Reduction 0.3Nm - 5Nm 12volt Gearbox Motor Dc Gear Motor Gearbox 24v 12v Dc High Torque Electric Motor Gears
Flat Reduction 0.3Nm - 5Nm 12volt Gearbox Motor Dc Gear Motor Gearbox 24v 12v Dc High Torque Electric Motor Gears
Flat Reduction 0.3Nm - 5Nm 12volt Gearbox Motor Dc Gear Motor Gearbox 24v 12v Dc High Torque Electric Motor Gears
Flat Reduction 0.3Nm - 5Nm 12volt Gearbox Motor Dc Gear Motor Gearbox 24v 12v Dc High Torque Electric Motor Gears
1 / 5
Flat Reduction 0.3Nm - 5Nm 12volt Gearbox Motor Dc Gear Motor Gearbox 24v 12v Dc High Torque Electric Motor Gears
Flat Reduction 0.3Nm - 5Nm 12volt Gearbox Motor Dc Gear Motor Gearbox 24v 12v Dc High Torque Electric Motor Gears
Flat Reduction 0.3Nm - 5Nm 12volt Gearbox Motor Dc Gear Motor Gearbox 24v 12v Dc High Torque Electric Motor Gears
Flat Reduction 0.3Nm - 5Nm 12volt Gearbox Motor Dc Gear Motor Gearbox 24v 12v Dc High Torque Electric Motor Gears
Flat Reduction 0.3Nm - 5Nm 12volt Gearbox Motor Dc Gear Motor Gearbox 24v 12v Dc High Torque Electric Motor Gears

Flat Reduction 0.3Nm - 5Nm 12volt Gearbox Motor Dc Gear Motor Gearbox 24v 12v Dc High Torque Electric Motor Gears

Send Inquiry

Product Description

Product Overview

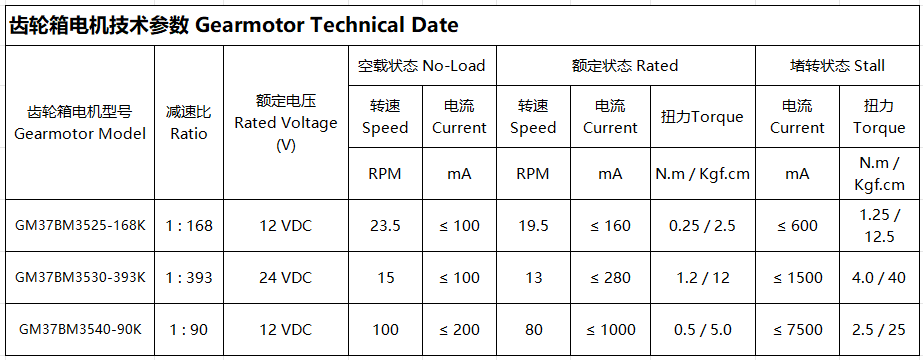

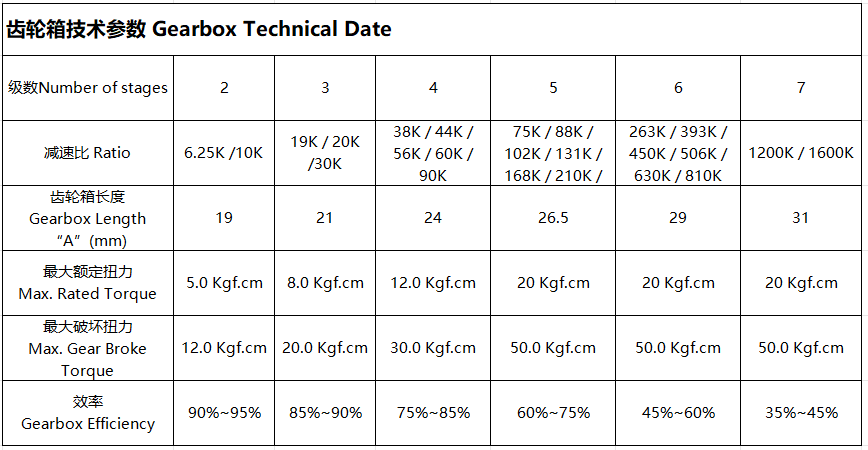

PRODUCT SPECIFICATIONS

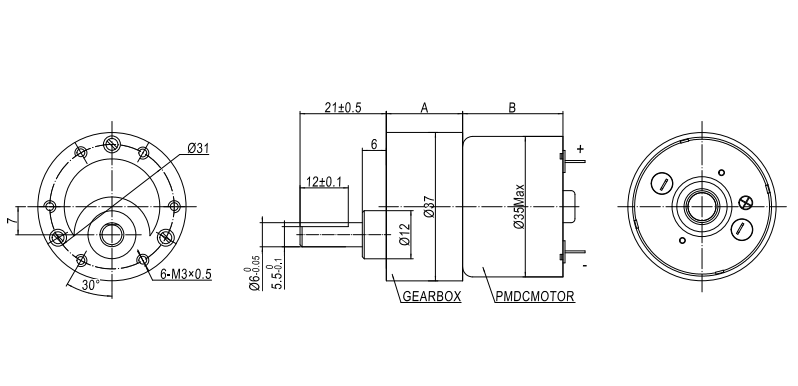

Technical Drawing
Product Model GM37BM3525/3530/3540
Gearbox Length 25mm-40mm
Speed 13RPM-100RPM
Voltage 12V/24V/12V
Torque 0.25 N.m/1.2 N.m/0.5 N.m
Customization Dimensions & Motor Parameters Supported
KEY FEATURES & PERFORMANCE
Feature 1
Feature 2
Feature 3
PRODUCTION GALLERY
Gallery 1
Gallery 2
Gallery 3
Gallery 4
Gallery 5
Gallery 6
FREQUENTLY ASKED QUESTIONS
Are you a trading company or manufacturer?
We're a factory specializing in micro DC motors and DC gear motors for more than 14 years.
What is the payment term for a new customer?
We can process Assurance Orders online, supporting payment via Master Card, Visa, etc. Customers can also pay via PayPal or TT.
Can you customize a motor if I can't find a suitable one on the website?
Yes, we can customize a suitable motor according to our customer's specific technical requirements.
Do you have certificates for the motors?
Yes, we hold CE, FCC, ISO, and other relevant certifications. We can apply for additional certificates if required.
How is your Quality Control managed?
We employ professional inspection staff on every production line. Finished motors undergo rigorous testing using Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.
What is the typical support for technical inquiries?
Our engineering team provides full technical data sheets and integration support for all customized motor solutions to ensure perfect compatibility.
