13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
1 / 5
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment
13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment

13mm 6v 12v 24v Geared Dc Motor Micro Dc Geared Motor High Speed 300rpm for Screwdrivers / Medical Equipment/ Cosmetic Equipment

Send Inquiry

Product Description

Product Overview
⚙️ Product Technical Specifications

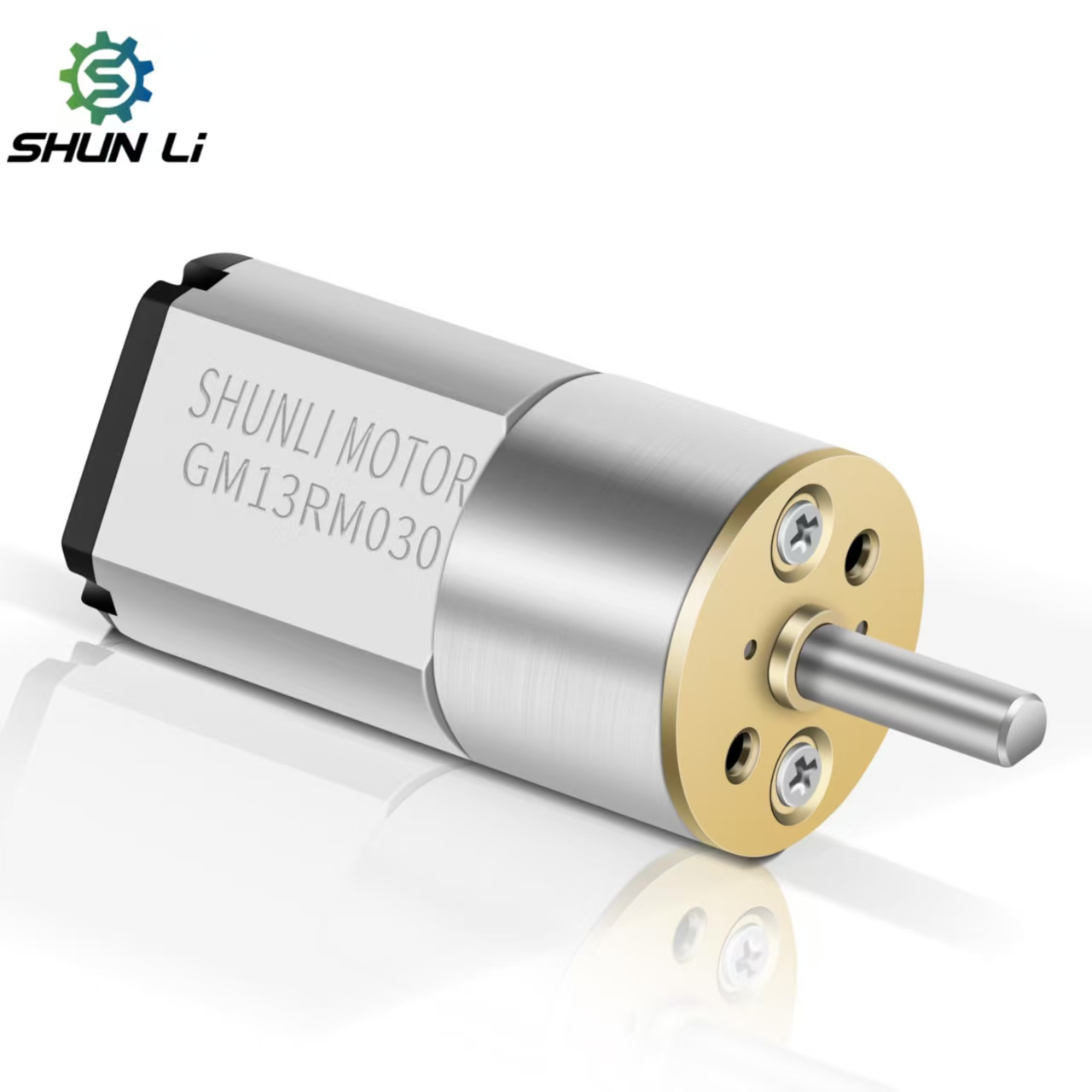

Gear Motor Detail
Product Model GM13RM030/050
Gearbox Length 21±0.3mm
Speed 80RPM-325RPM
Voltage 3.7V
Torque 12mN.m/60mN.m
Customization The Transmission Dimensions and Motor Parameters Can Be Customized
📊 Engineering Drawings

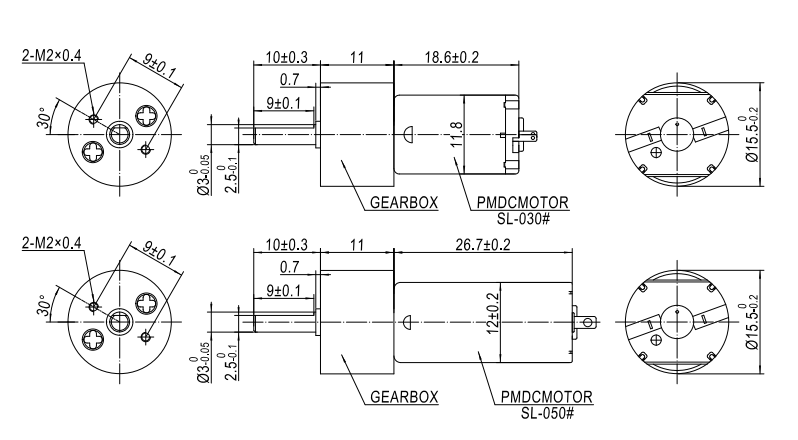

Engineering Drawing 1

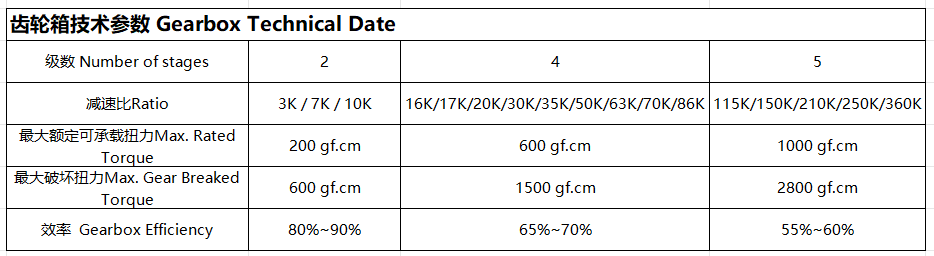

Engineering Drawing 2

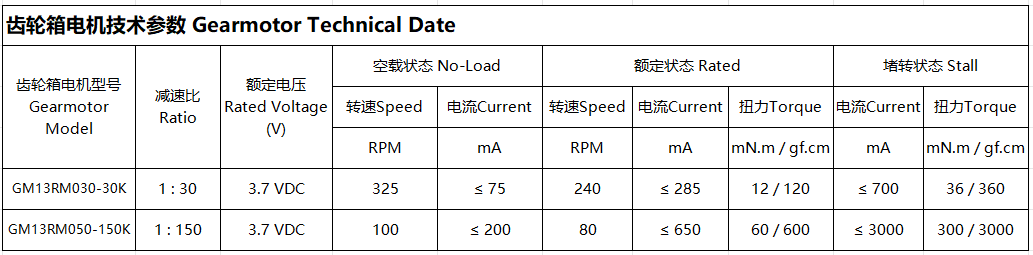

Engineering Drawing 3
🔍 Product Showcase

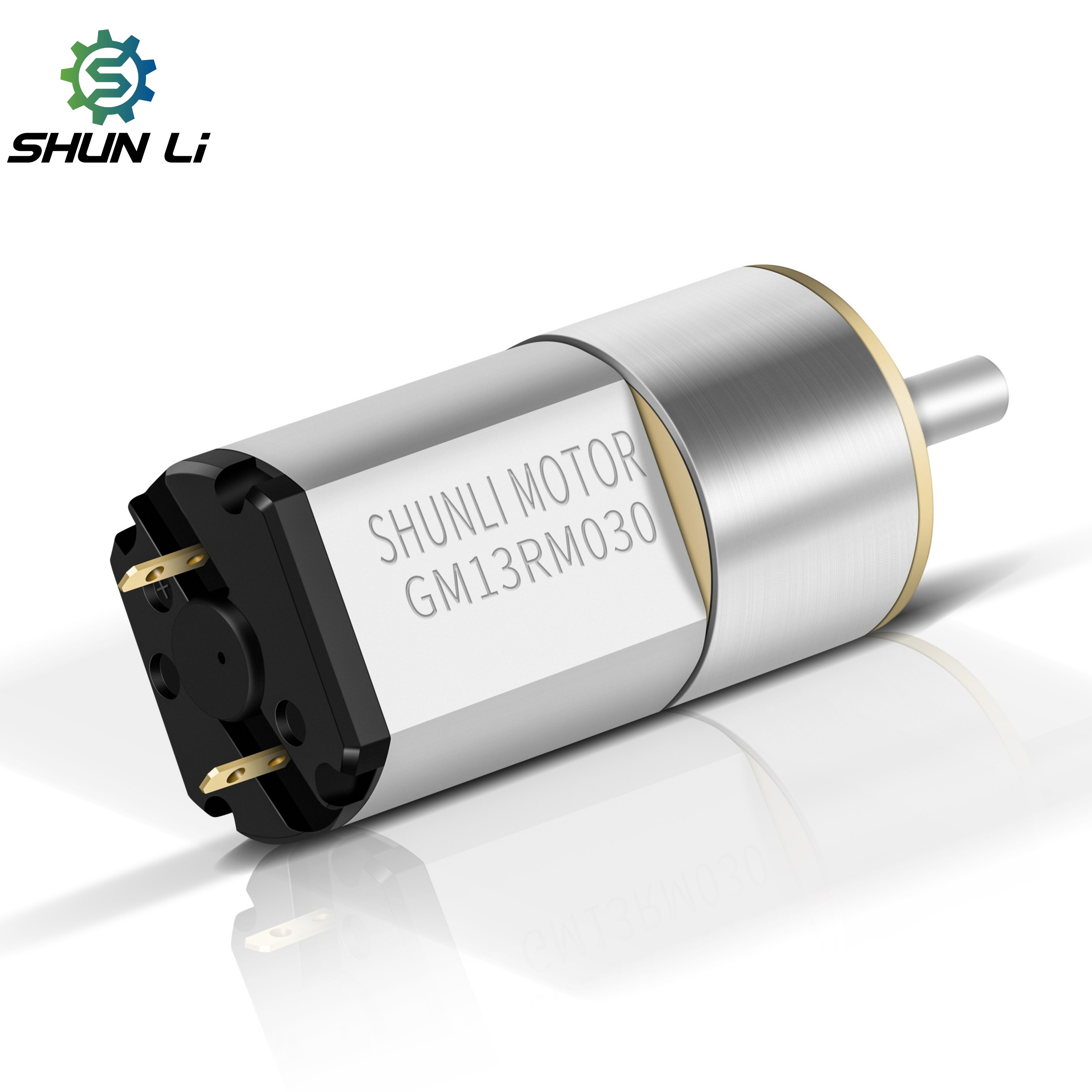

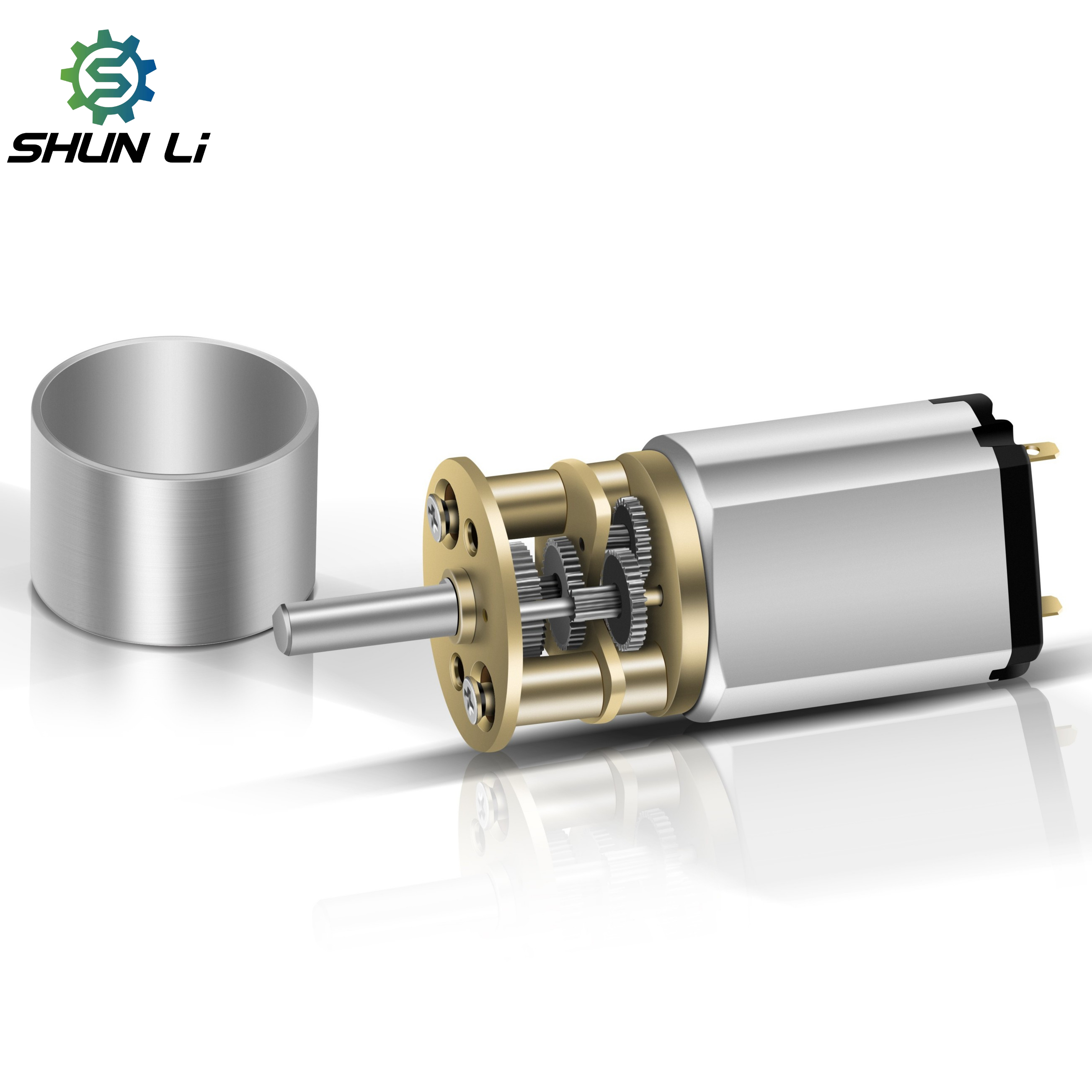

Motor View 1
Motor View 2
Motor View 3
Motor View 4
Motor View 5
Motor View 6
❓ Frequently Asked Questions
1. Are you a trading company or a manufacturer?
We are a specialized factory focusing on micro DC motors and DC gear motors with over 14 years of industry experience.
2. What are the payment terms for new customers?
We support multiple payment methods including secure online orders (Master Card, Visa), PayPal, and T/T bank transfers for your convenience.
3. Can you customize a motor if I can't find a suitable one?
Yes, we provide full customization services. We can adjust the motor parameters and transmission dimensions according to your specific requirements.
4. Do your motors have quality certifications?
Yes, our products are certified with CE, FCC, ISO, and other standards. We can also apply for additional certifications if required by your region.
5. How do you ensure product quality?
We have professional inspection staff on every production line. Every finished motor undergoes comprehensive testing before shipment.
6. What kind of testing equipment do you use?
Our quality control facility includes Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
