Spiro Gear
Spiro Gear
| Ratio | 3.4K - 5184K |
| Max. Rated Torque | 0.5~120Kgf.cm |
| Max. Gear Breaked Torque | 180 Kgf.cm |
| Gearbox Efficiency | 45%~95% |
| Model | Ratio | Voltage | No-Load | Rated | Stall | ||||
| Speed (RPM) | Current (mA) | Speed (RPM) | Current (mA) | Torque (mN.m) | Current (mA) | Torque (Kgf.cm) | |||

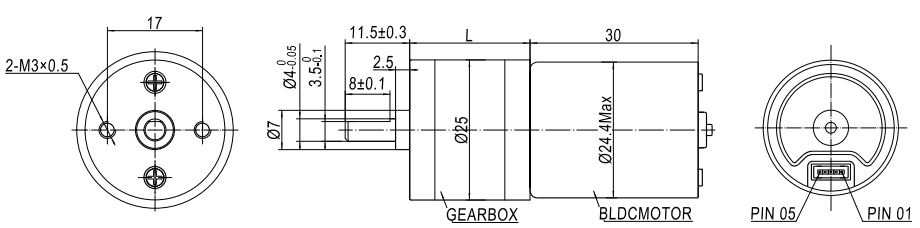

| GM25AMBL2430-217K | 1 : 217 | 12 VDC | 18 | ≤ 120 | 15 | ≤ 200 | 0.45 / 4.5 | ≤ 950 | 0.21 / 2.1 |

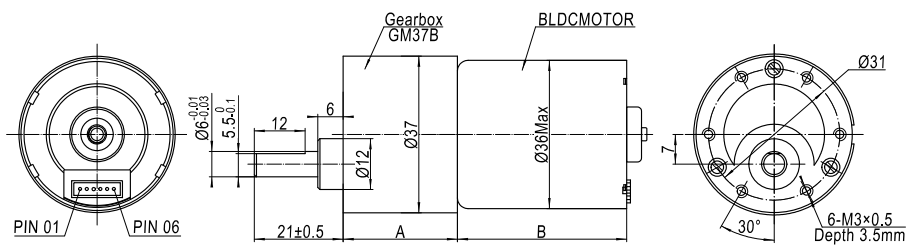

| GM37BMBL3657-113QK | 1 : 113 | 24 VDC | 58 | ≤ 400 | 48.5 | ≤ 1400 | 3.0 / 30 | ≤ 7000 | 10 / 100 |

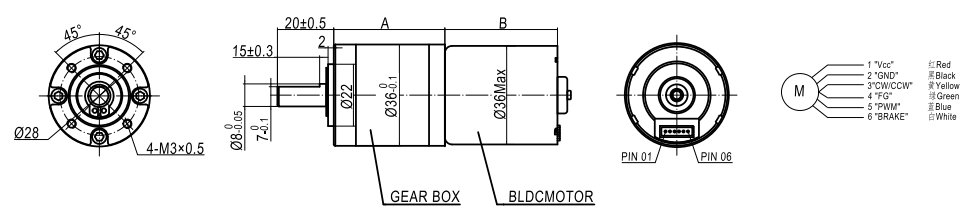

| GMP36MBL3640-27K | 1 : 27 | 24 VDC | 185 | ≤ 300 | 150 | ≤ 750 | 0.45 / 4.5 | ≤ 3000 | 2.25 / 22.5 |

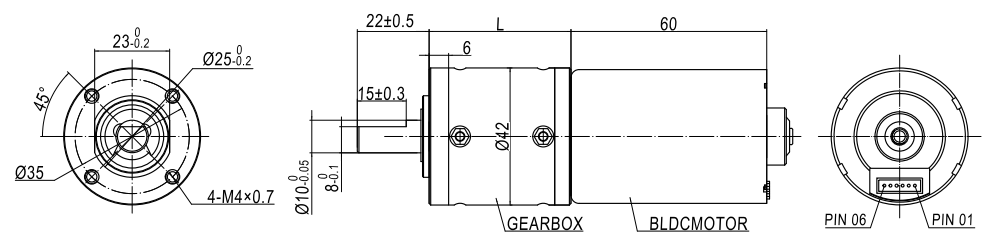

| GMP42MBL4260-325K | 1 : 245 | 24 VDC | 10 | ≤ 300 | 8 | ≤ 1200 | 6N.m / 60Kg | ≤ 4800 | 20 / 200 |
A high-tech enterprise integrating research, development, production, and sales of various micro DC motors, geared motors, and planetary gearboxes. Products are widely utilized in automobiles, smart homes, medical equipment, and intelligent security systems, reaching over 50 countries globally.

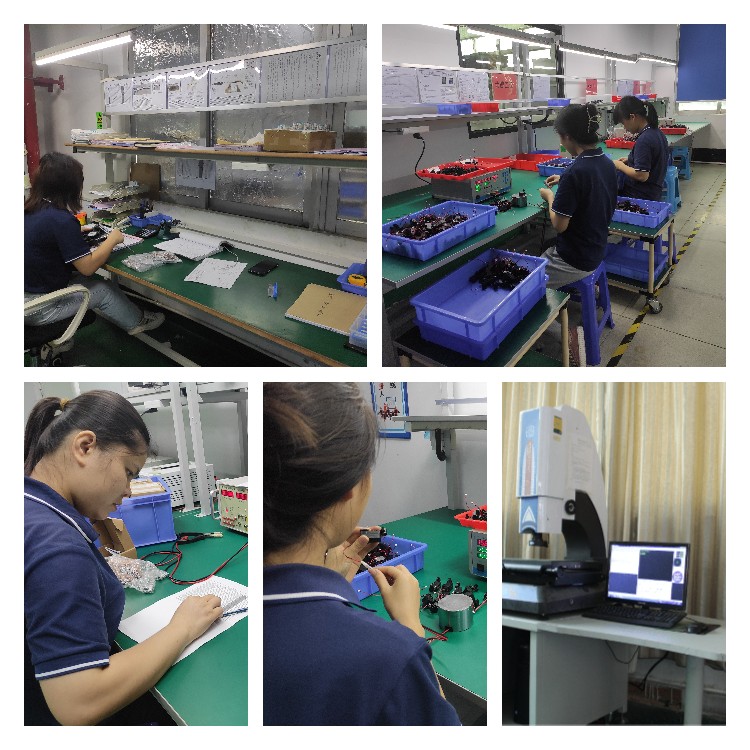

Strict checking at every step from raw material receipt to final shipment. Quality is the foundation of our development.
