Home > Motor In Stock > Shunli Customized Brush Brushless 22mm 12V Dc Motor High Torque Planetary Gearbox Dc Motor Geared
Shunli Customized Brush Brushless 22mm 12V Dc Motor High Torque Planetary Gearbox Dc Motor Geared
Shunli Customized Brush Brushless 22mm 12V Dc Motor High Torque Planetary Gearbox Dc Motor Geared
Shunli Customized Brush Brushless 22mm 12V Dc Motor High Torque Planetary Gearbox Dc Motor Geared
Shunli Customized Brush Brushless 22mm 12V Dc Motor High Torque Planetary Gearbox Dc Motor Geared
Shunli Customized Brush Brushless 22mm 12V Dc Motor High Torque Planetary Gearbox Dc Motor Geared
1 / 5
Shunli Customized Brush Brushless 22mm 12V Dc Motor High Torque Planetary Gearbox Dc Motor Geared
Shunli Customized Brush Brushless 22mm 12V Dc Motor High Torque Planetary Gearbox Dc Motor Geared
Shunli Customized Brush Brushless 22mm 12V Dc Motor High Torque Planetary Gearbox Dc Motor Geared
Shunli Customized Brush Brushless 22mm 12V Dc Motor High Torque Planetary Gearbox Dc Motor Geared
Shunli Customized Brush Brushless 22mm 12V Dc Motor High Torque Planetary Gearbox Dc Motor Geared

Shunli Customized Brush Brushless 22mm 12V Dc Motor High Torque Planetary Gearbox Dc Motor Geared

Send Inquiry

Product Description

Main Product View
✓ Product Specifications
Product Feature
Product Model GMP22M130/180
Gearbox Length 13.3~27.3MM
Speed 30RPM-138RPM
Voltage 6V/5V
Torque 0.095 N.m/0.32 N.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized
⚙ Technical Parameters & Dimensions

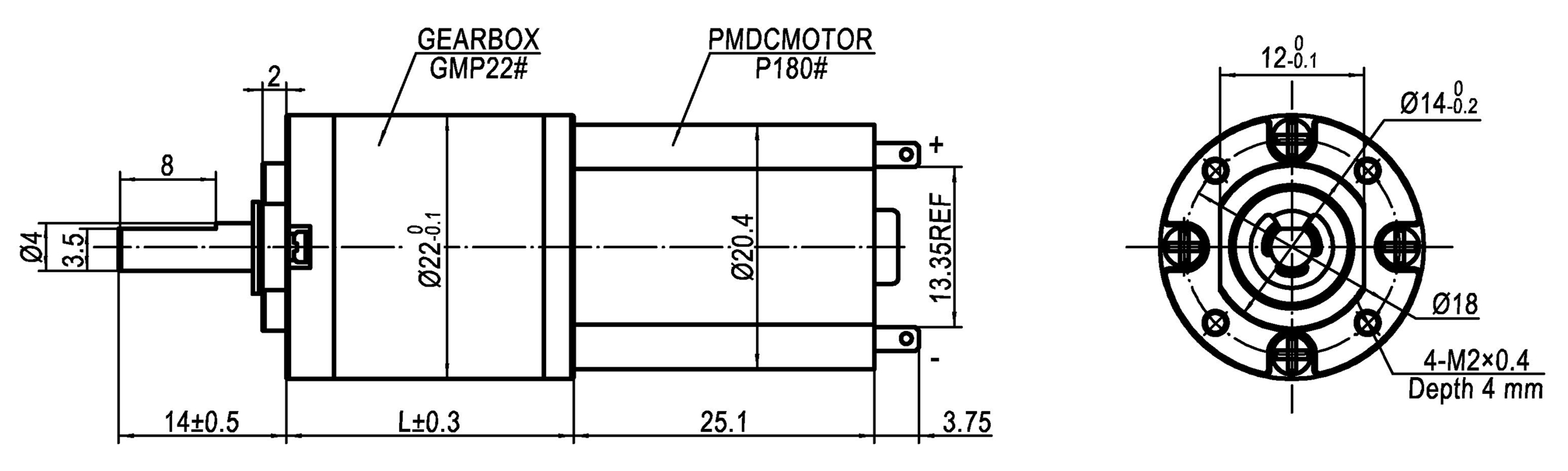

Technical Drawing

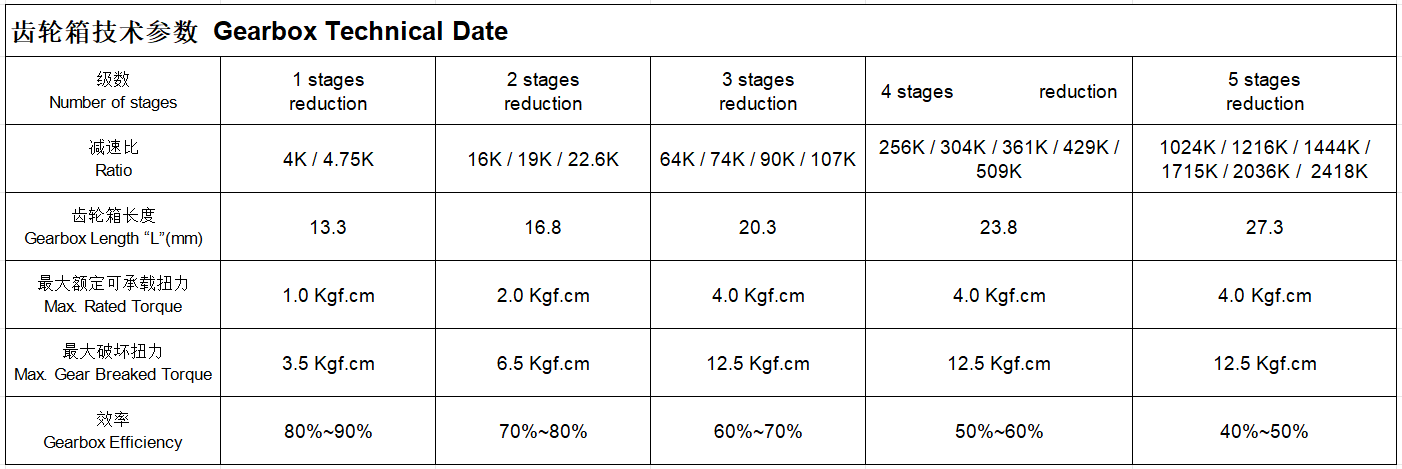

Specification Chart 1

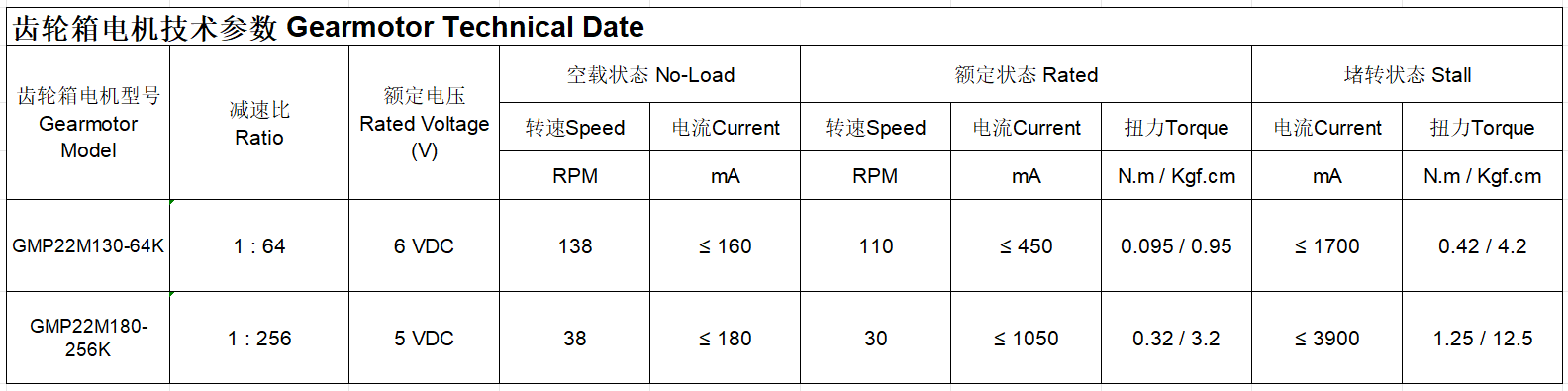

Specification Chart 2
📷 Product Gallery
Product View 1 Product View 2 Product View 3 Product View 4 Product View 5 Product View 6
? Frequently Asked Questions
Are you a trading company or manufacturer?
We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
What is the payment term for a new customer?
We can facilitate online assurance orders which allow payment via Master Card, Visa, etc. We also accept PayPal or TT transfers.
Can you customize a motor if I can't find a suitable one on the website?
Yes, we can customize motors according to our customers' specific requirements, including dimensions and parameters.
Do you have certificates for your motors?
Yes, we hold CE, FCC, ISO, and other relevant certificates. We can also apply for other specific certifications if required.
How is your Quality Control process handled?
We employ professional inspection staff on every production line. Finished motors undergo rigorous testing using equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
What is the typical lead time for customized orders?
Lead times depend on the specific customization requirements. Generally, we ensure a streamlined process to meet customer deadlines while maintaining high-quality standards.
