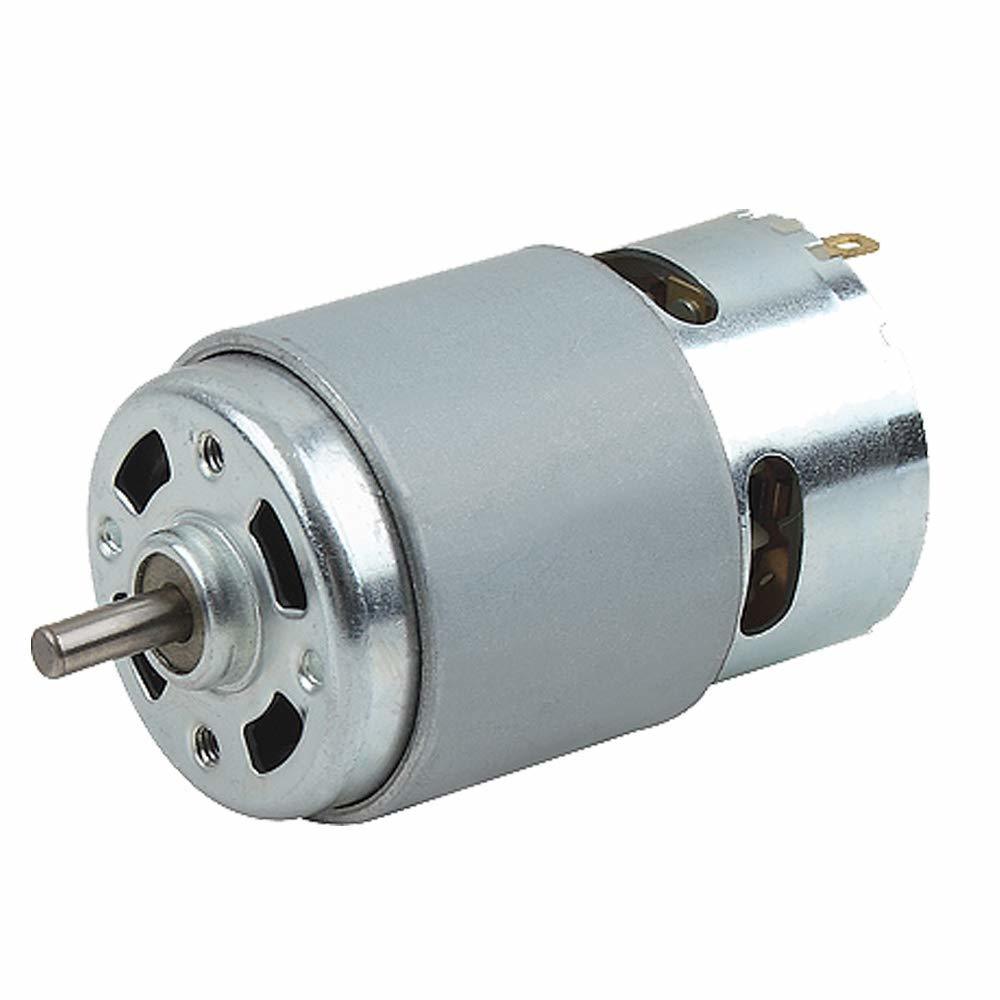

Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
1 / 4
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project
Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project

Shunli Custom RS775 High RPM Torque 24V Brushed DC Big Strong MotorFor DIY Project

Send Inquiry

Product Description

Product Overview
Technical Specifications

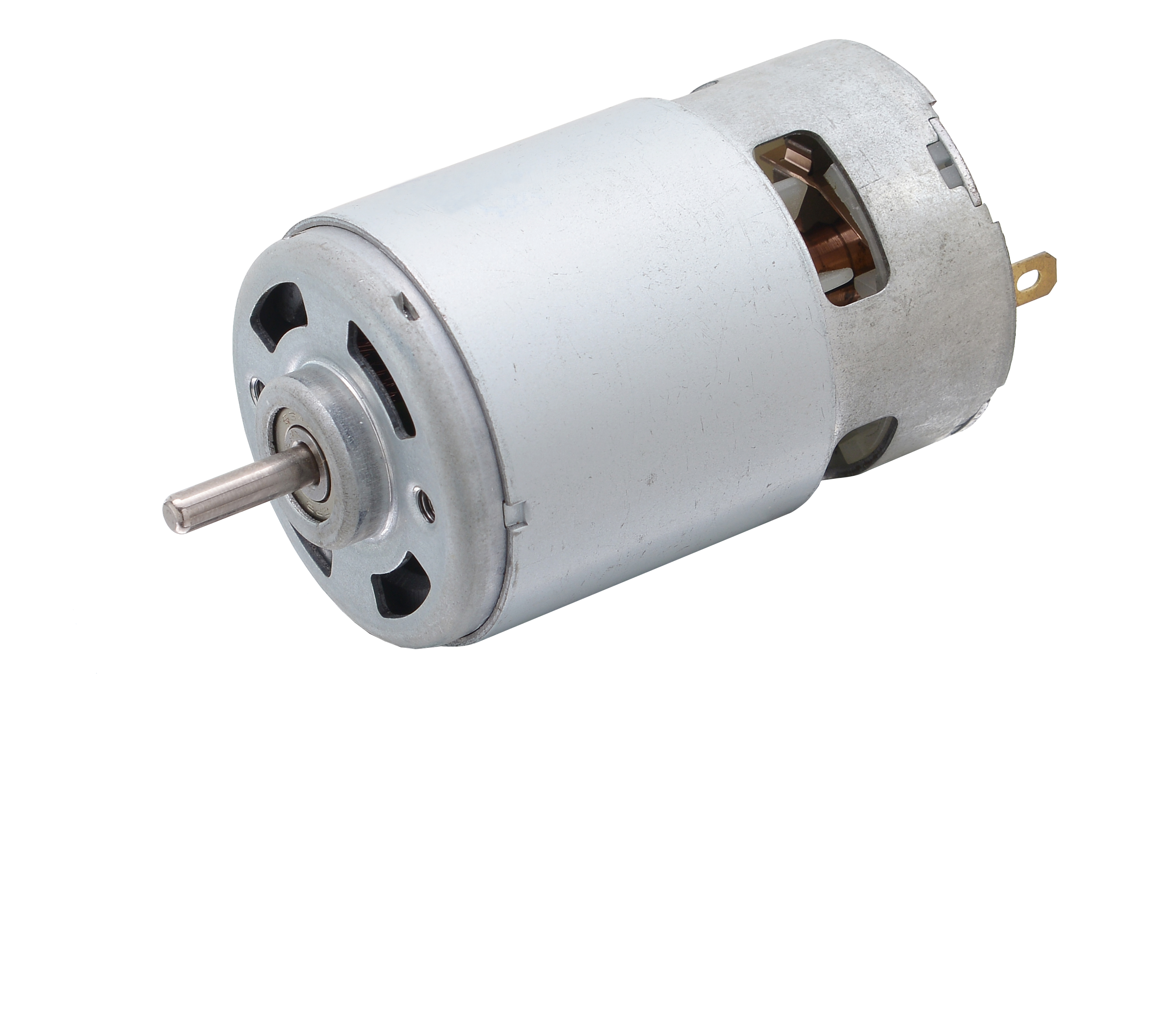

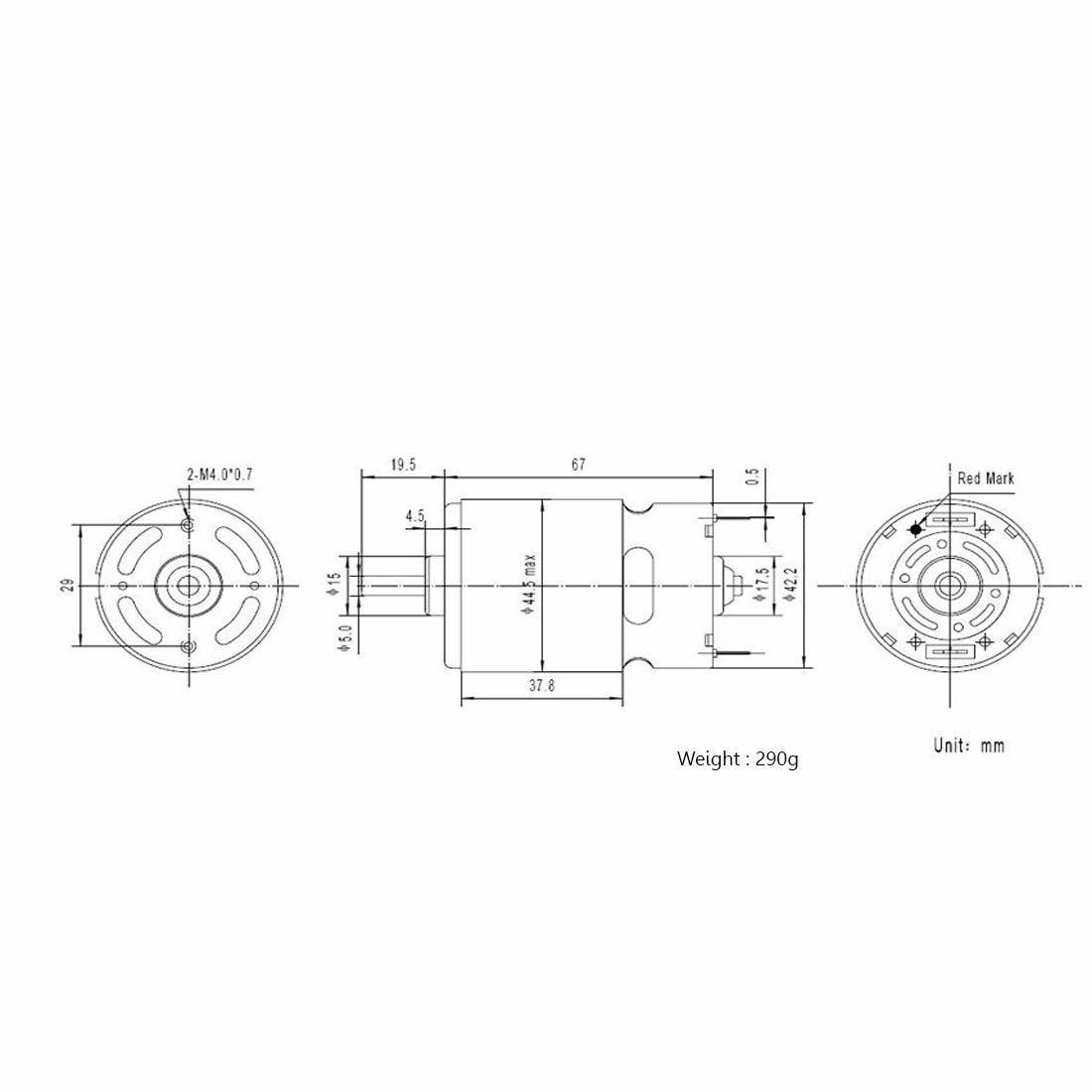

Dimensional Drawing
Product Model 7 Series
Motor Diameter 42.3 mm (With protecting magnetic ring: 45 mm)
Motor Length 755 motor: 59mm
775 motor: 66 mm
Motor Voltage 7.2-48VDC
Motor Speed 3000-20000RPM
Motor Shaft Standard 5mm D shaft (Shape and length can be customized)

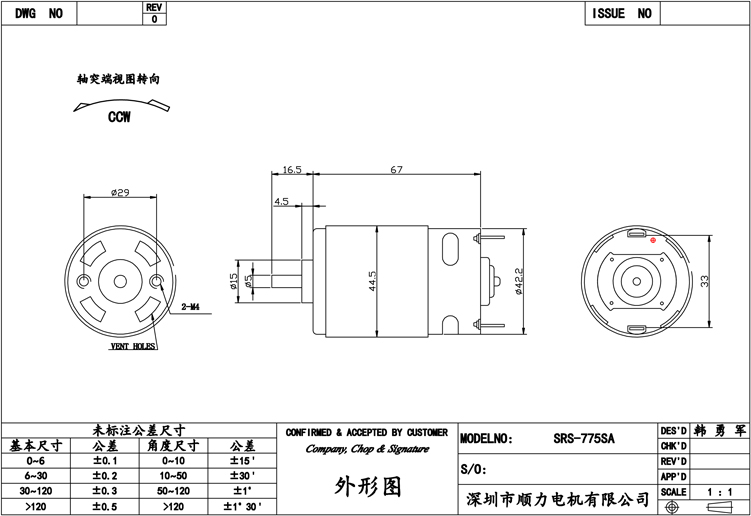

Motor Detail 1

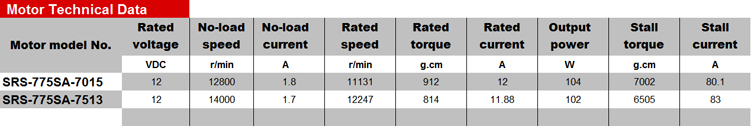

Motor Detail 2
Product Display
Motor View 1 Motor View 2 Motor View 3 Motor View 4 Motor View 5 Motor View 6
Frequently Asked Questions
Q1: Are you a trading company or a manufacturer?
A: We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
Q2: What is the payment term for a new customer?
A: We can arrange an Assurance Order online for new customers, which supports payment via Master Card, Visa, etc. Customers can also pay via PayPal or TT.
Q3: Can you customize a motor if I cannot find a suitable one on the website?
A: Yes, we can customize a suitable motor according to our customer's specific requirements regarding voltage, speed, and shaft dimensions.
Q4: Do you have certificates for your motors?
A: Yes, we have CE, FCC, ISO, and other relevant certificates. If you require specific certification, we can apply for it for you.
Q5: How do you ensure quality control?
A: We have professional inspection staff on every production line. Finished motors undergo rigorous testing using machines such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
Q6: What is the standard lead time for orders?
A: Lead times vary depending on the order volume and customization requirements. Please contact our support team for a specific timeline based on your project needs.
