Spiro Gear
Spiro Gear
| Model | Voltage | No-load | Load | Stall | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working Voltage | Rated voltage | Speed | Current | Speed | Current | Torque | Power output | Stall torque | Current | |||
| V | rpm | A | rpm | A | N.m | Kg.m | W | N.m | Kg.m | A | ||
| SGP01S-A130-14150-120 | 3-12.0V | 4.5 | 100 | 0.2 | 87 | 0.5 | 0.066 | 0.675 | 0.4 | 0.265 | 2.7 | 1.25 |
| SGP01S-A130-18100-220 | 3-12.0V | 3.0 | 50 | 0.2 | 40 | 0.3 | 0.120 | 1.233 | 0.6 | 0.393 | 4.003 | 2.15 |
What is the operating voltage range for these yellow DC gear motors?
The operating voltage range for these motors is 3V to 12.0V, making them highly versatile for various toy car projects and DIY electronics.
What are the specifications of the SGP01S-A130-14150-120 model?
This model features a rated voltage of 4.5V, a no-load speed of 100 rpm, and a load torque of 0.066 N.m with a stall current of 1.25 A.
How does the SGP01S-A130-18100-220 model compare in terms of torque?
The SGP01S-A130-18100-220 model has a higher load torque of 0.120 N.m and a stall torque of 0.393 N.m (4.003 Kg.m) at a rated voltage of 3.0V.

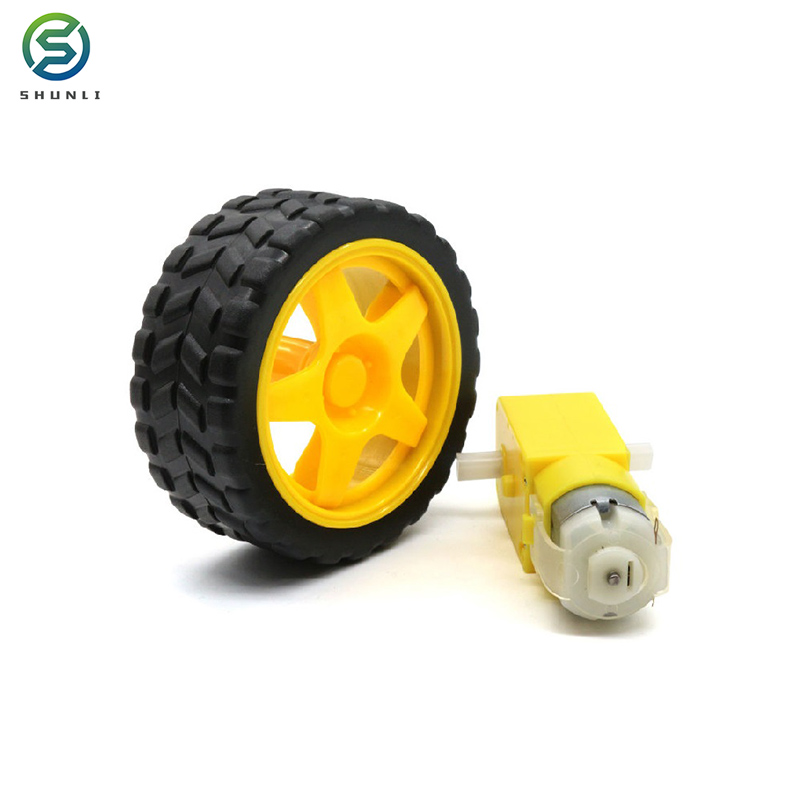

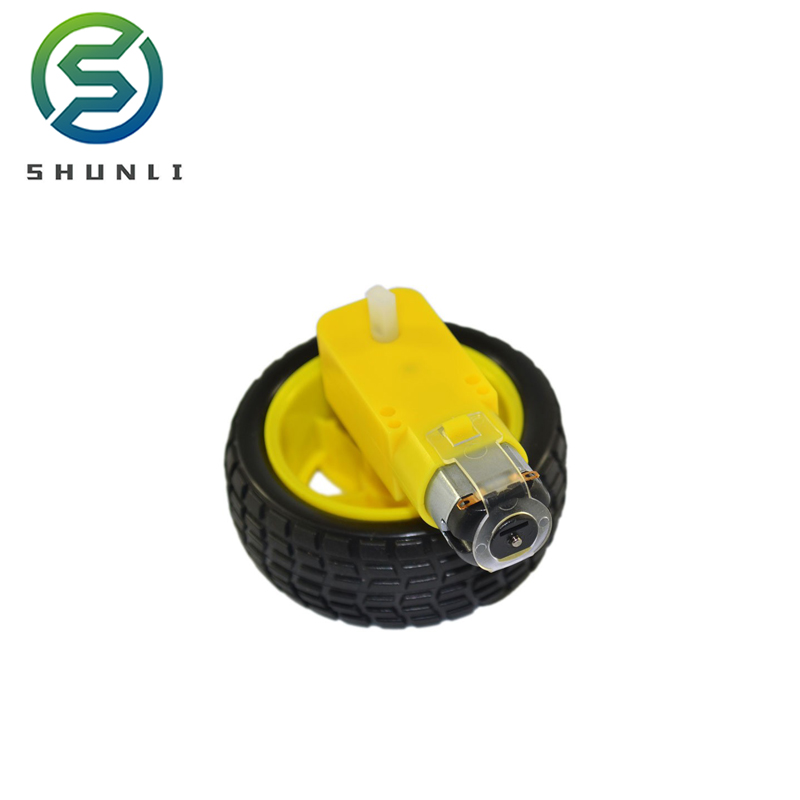

Are plastic wheels included with the DC gear motor?
Yes, this yellow DC gear motor set comes with compatible plastic wheels designed specifically for toy cars and smart robot platforms.
What is the typical current draw under no-load conditions?
Both the listed models (SGP01S-A130-14150-120 and SGP01S-A130-18100-220) have a low no-load current of approximately 0.2 A.
