Spiro Gear
Spiro Gear
Motor Customized Specification available upon request.

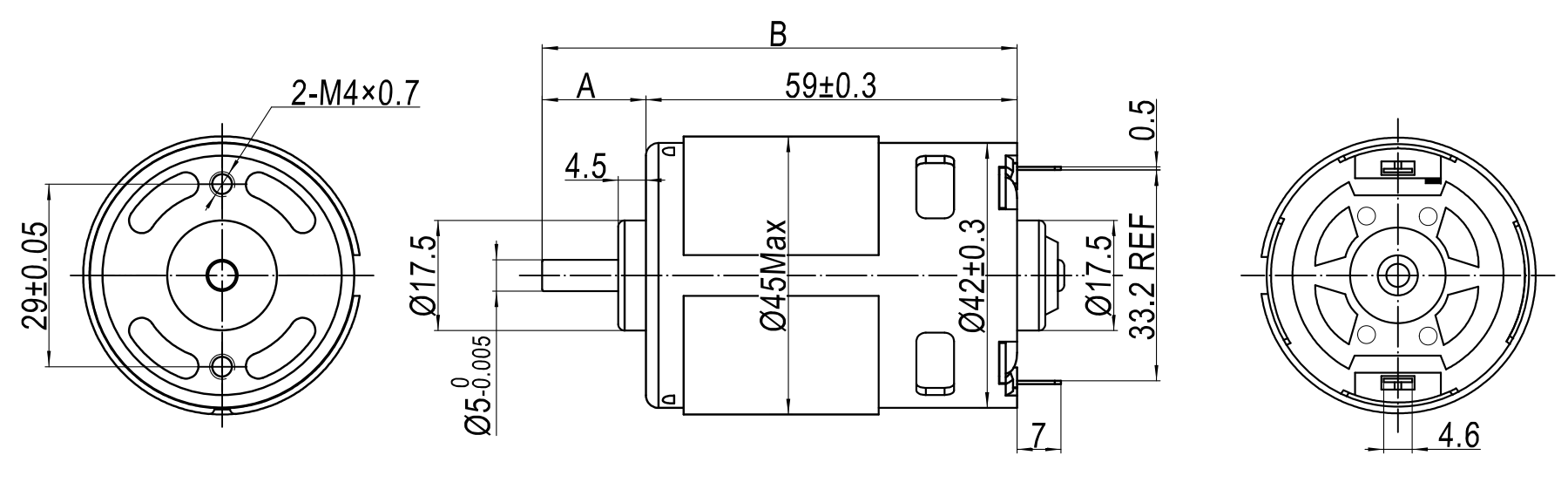

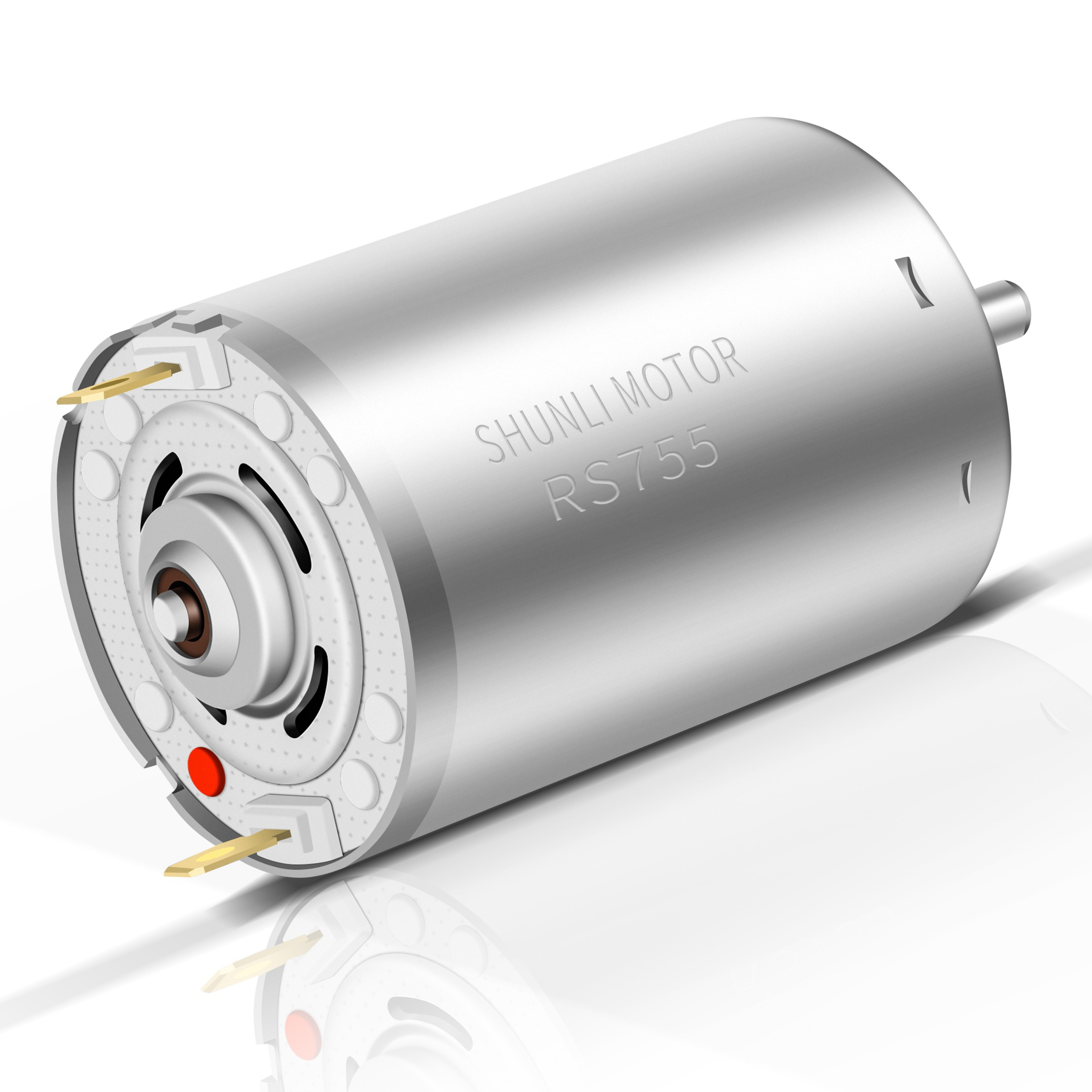

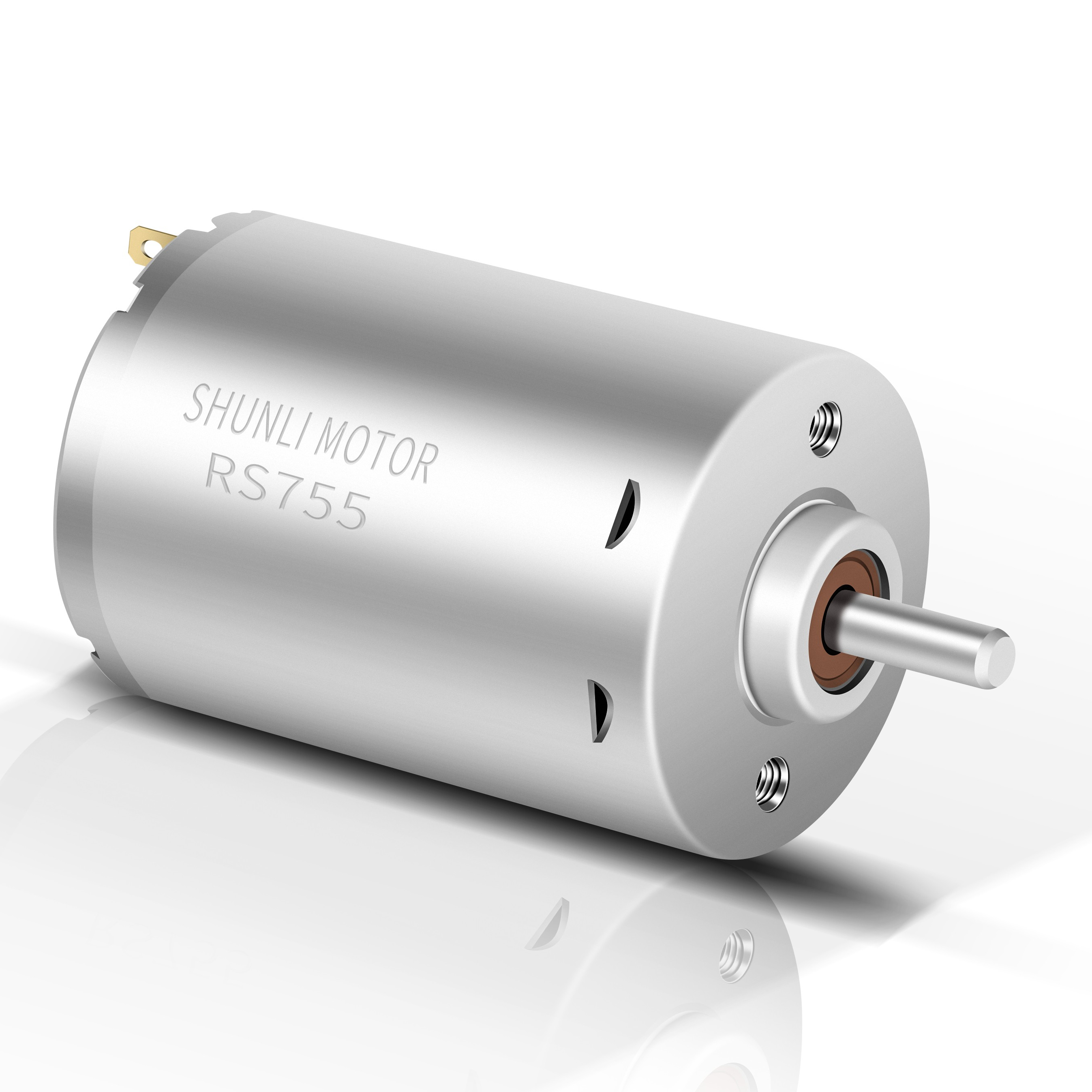

RS - 755 H
RS - 775 H
The length of the shaft can be customized.
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|
| Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m) | Power (W) | Current (A) | Torque (mN.m) | ||
| RS-770H | 12 VDC | 15000 | 2.2 | 13177 | 15.91 | 81 | 111.8 | 115 | 666.9 |
| RS-775H | 24 VDC | 3478 | 0.15 | 2925 | 0.75 | 44.4 | 13.35 | 4.07 | 245.7 |
