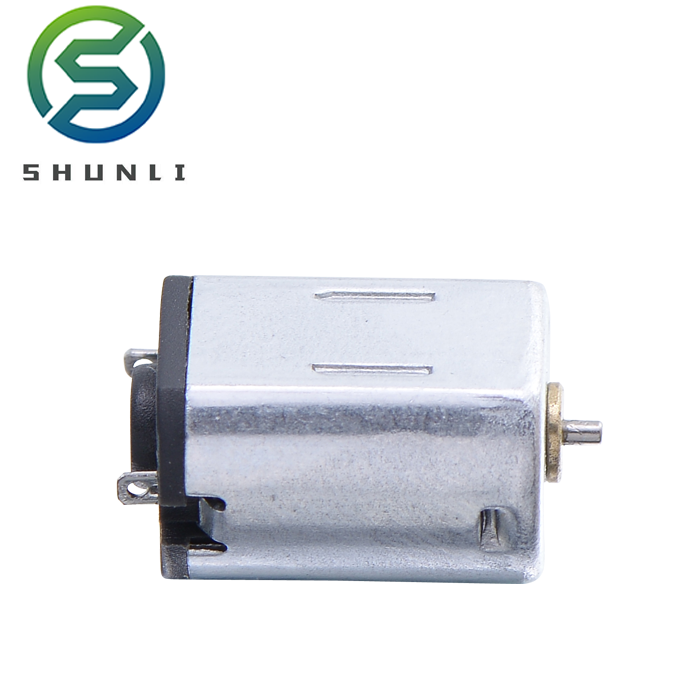

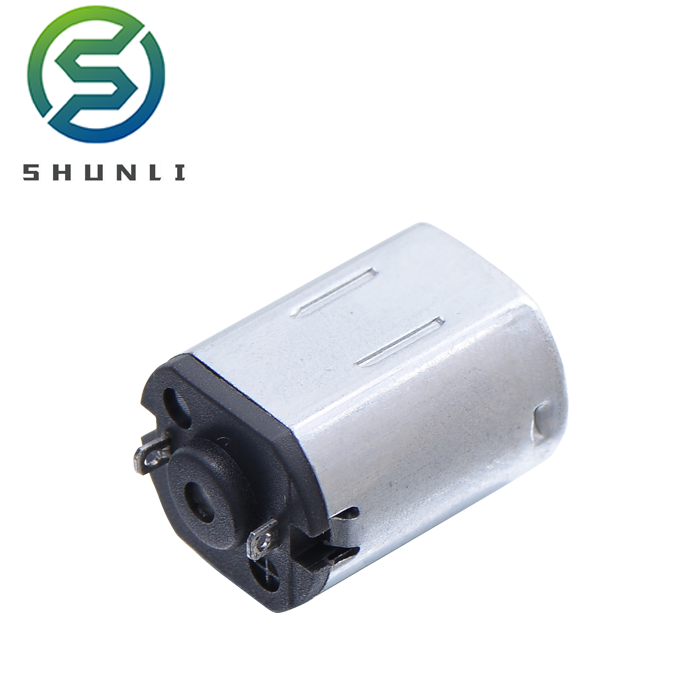

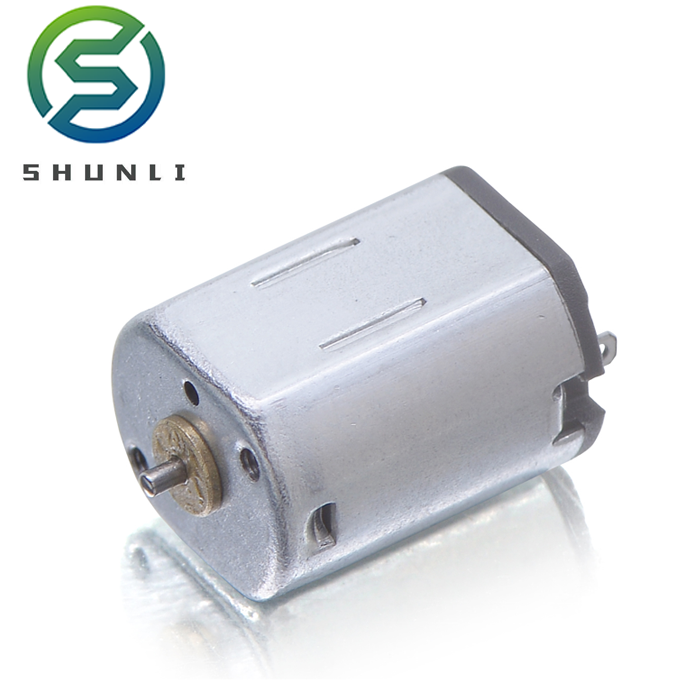

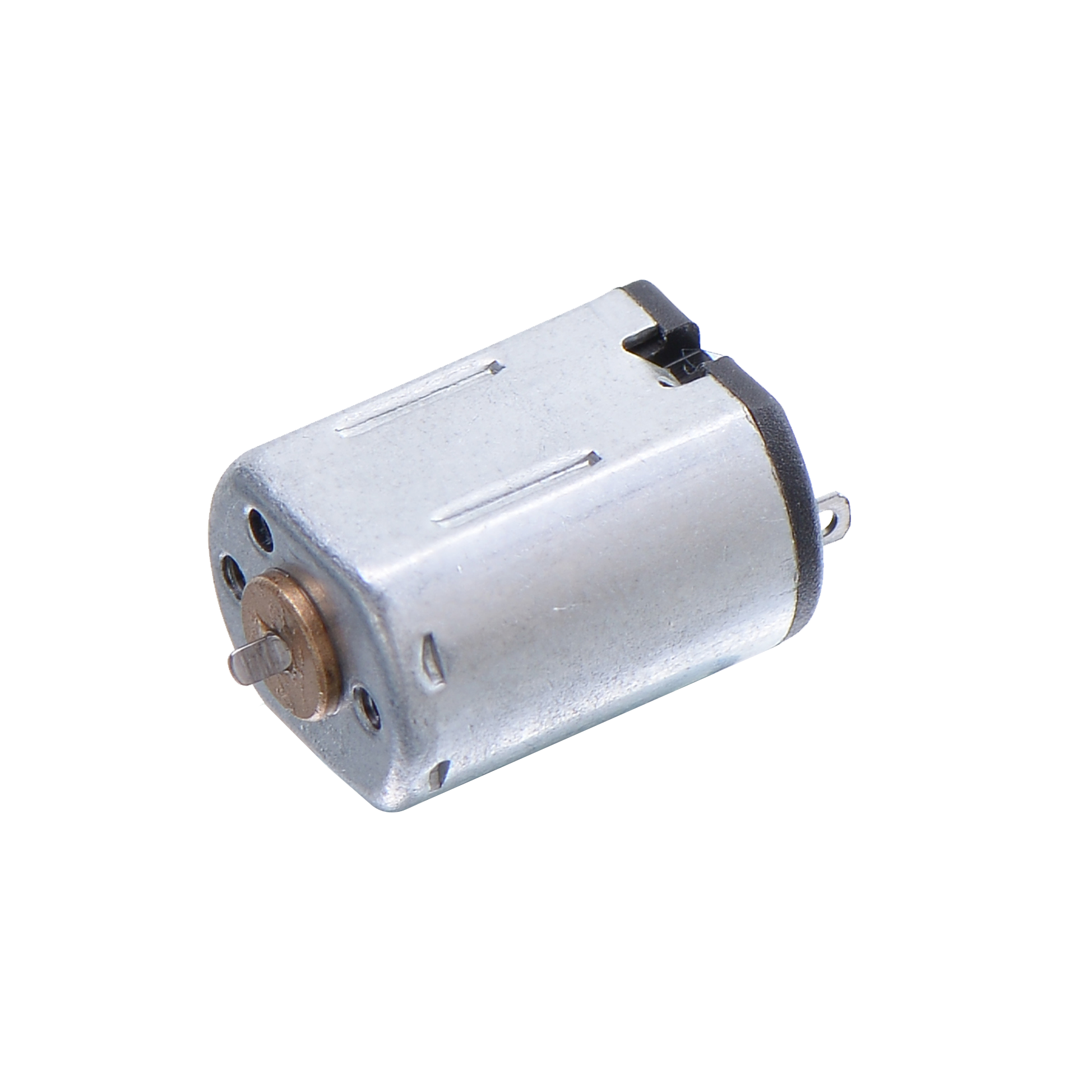

Customized 1.5v 3v 4.5v SFF-N20VA Brush Lock Mini Electric Motor

1 / 4

Customized 1.5v 3v 4.5v SFF-N20VA Brush Lock Mini Electric Motor

Send Inquiry

Product Description

High-Performance Motors: Our motors feature long life, high efficiency, and exceptional stability. With the drive inserted inside the motor, data capture is more accurate than ever.

Product Description

Model	Voltage Range (V)	Nominal (V)	No-Load		Rated			Stall
Model	Voltage Range (V)	Nominal (V)	Speed (RPM)	Current (mA)	Speed (RPM)	Current (mA)	Torque (mN.m)	Current (mA)	Torque (mN.m)
FF-N20VA-05240	3.0~12.0	12 VDC	16100	15	12240	60	0.3	210	1.2
FF-N20VA-08260	2.0~5.0	5 VDC	14600	30	11800	110	0.26	470	1.3
FF-N20TA-2818	0.8~1.5	1.2 VDC	34000	70	31000	1140	0.2	6000	1.6

Application & Product Range

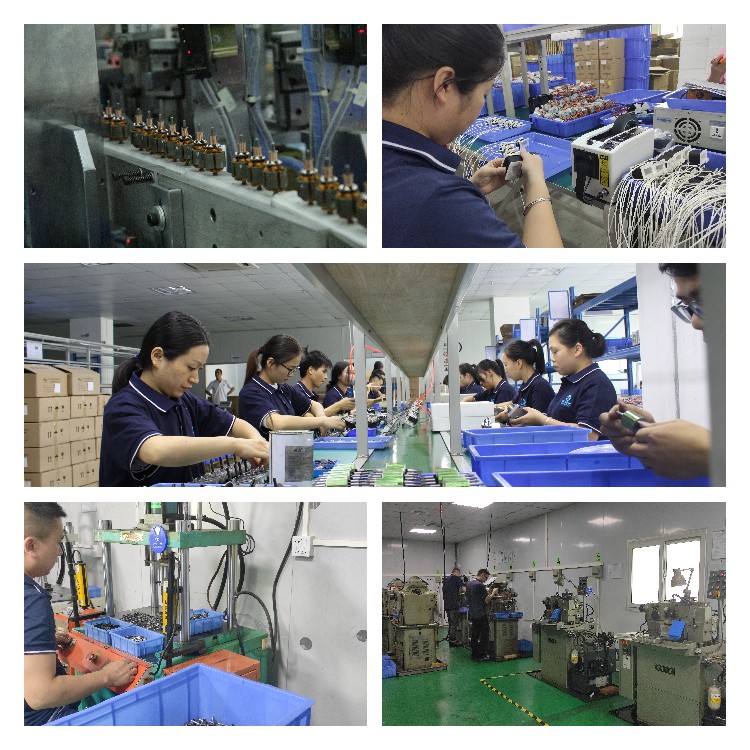

Manufacturing Excellence & Quality Control

Expert factory specializing in motor production for over 14 years with a professional R&D team.

Strict quality control from raw materials to final shipment to ensure superior performance.

Our Core Services

High Credibility: Recognized as a trusted gold-standard seller in the motor industry.

100% On-Time Delivery: We guarantee timely arrival for all your product orders.

Rapid Sampling: Standard samples within 2 weeks; customized samples produced within 3 weeks.

Fast Response: All inquiries and messages will receive a professional reply within 2 hours.

Frequently Asked Questions

1. Are you a trading company or a manufacturer?

We are a specialized factory. We have focused on micro DC motors and DC gear motors for more than 14 years.

2. Can you customize a motor if I can't find a suitable one on your list?

Yes, we provide full customization services to design a motor that meets your specific technical requirements.

3. What are the payment terms for new customers?

We offer flexible payment options including Online Assurance Orders (Credit Card/Visa), PayPal, and TT (Telegraphic Transfer).

4. Do your motors have official certifications?

Yes, our motors are certified with CE, FCC, and ISO standards. We can also apply for other specific certificates if required.

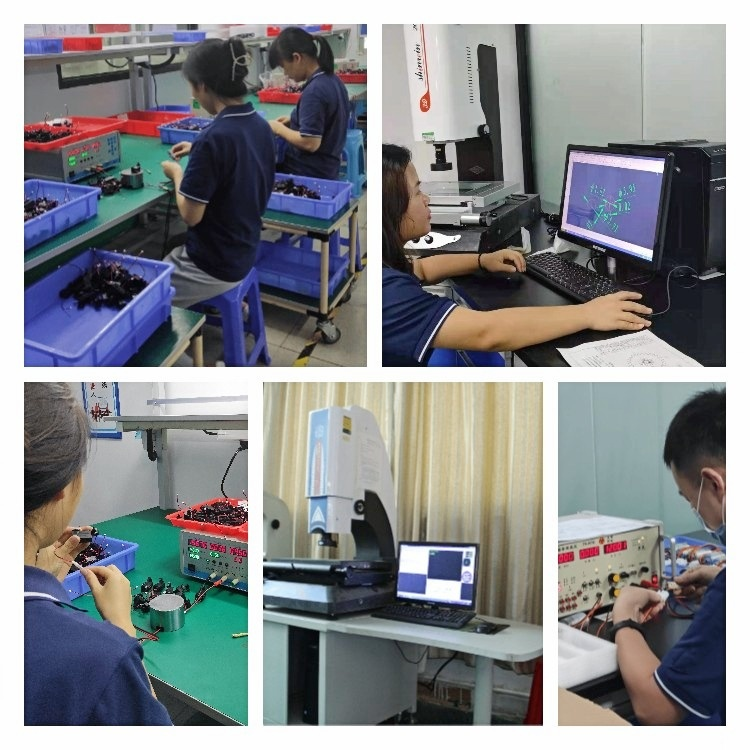

5. How do you handle quality control?

We utilize professional inspection staff at every production stage. Final products undergo rigorous testing using Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.

6. How long does it take for sample production?

Standard samples are generally completed within 14 days, while complex customized samples take approximately 21 days.
