Spiro Gear
Spiro Gear
Motor Customized Specification is available upon request.

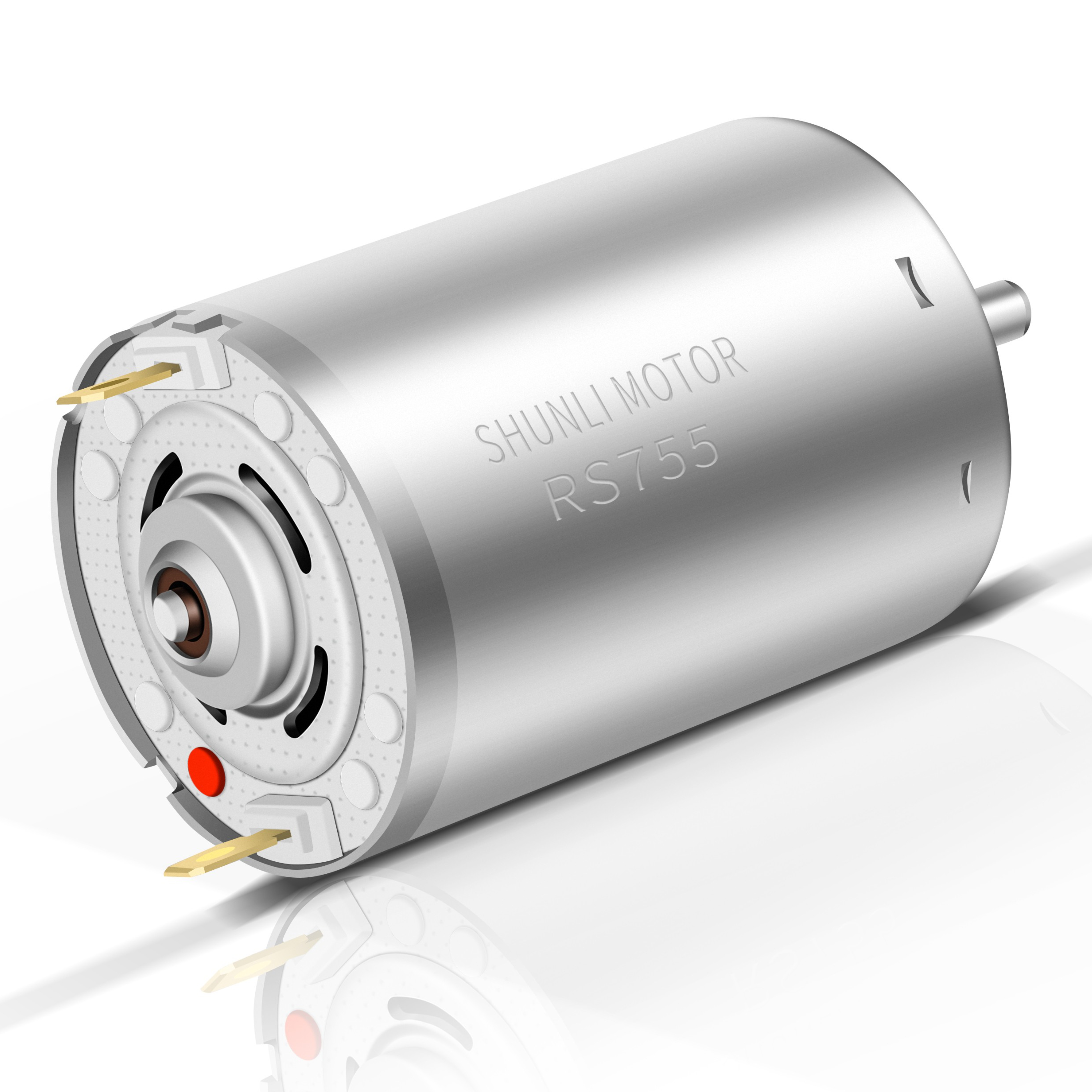

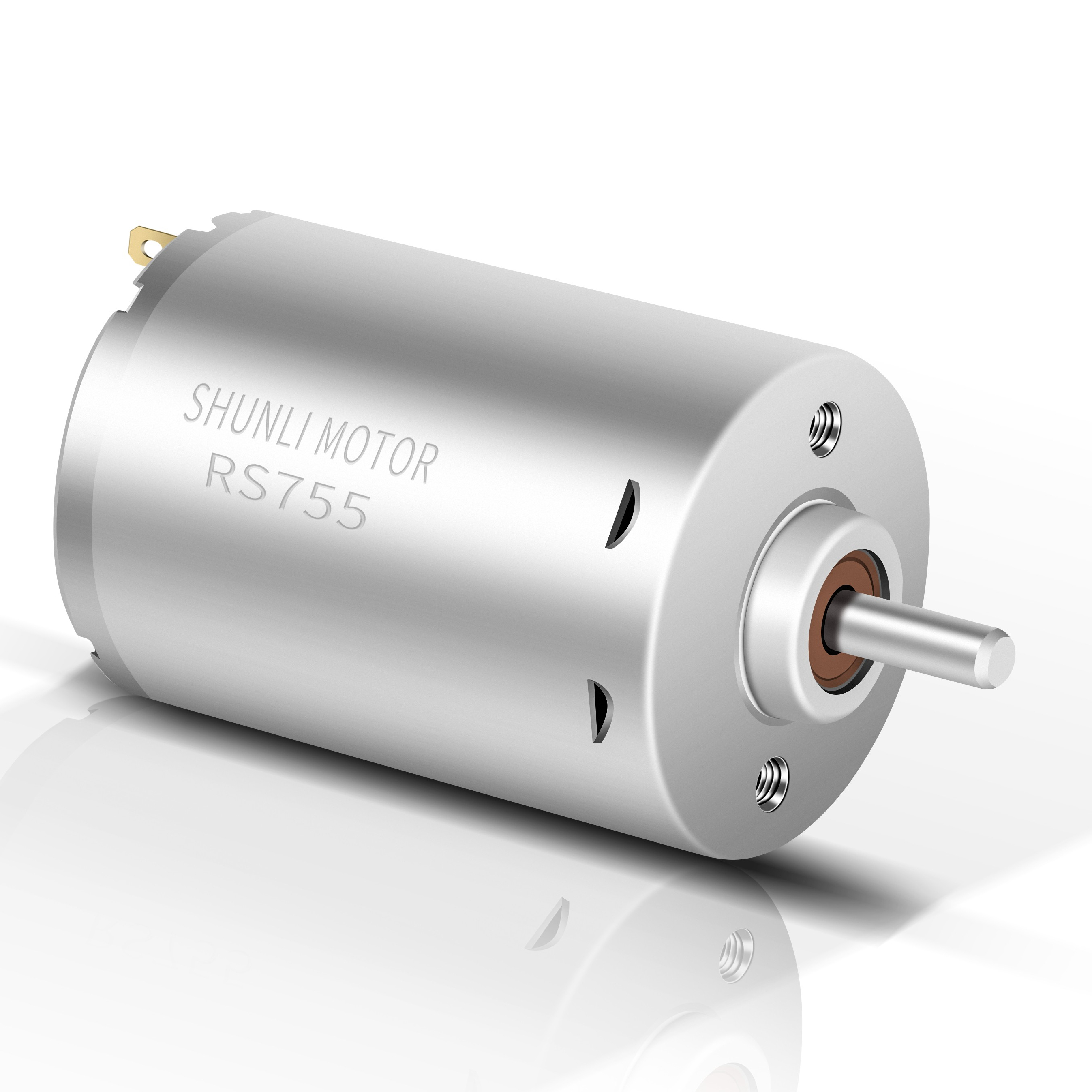

------ RS - 755 H
------ RS - 775 H
The length of shaft can be customized.
| Model | Voltage (V) | No-Load | Rated Load | Stall | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m) | Power (W) | Current (A) | Torque (mN.m) | |
| RS-770H | 6.0~12.0 | 12 VDC | 15000 | 2.2 | 13177 | 15.91 | 81 | 111.8 | 115 | 666.9 |
| RS-775H | 6.0~24.0 | 24 VDC | 3478 | 0.15 | 2925 | 0.75 | 44.4 | 13.35 | 4.07 | 245.7 |
1. Expert Manufacturing
We are a factory specializing in motor production for over 14 years. Our professional R&D team and mature management ensure a superior experience.
2. Strict Quality Control
From raw material reception to final shipment, every step is carefully checked. Quality is the foundation of our development.
Looking forward to your feedback!
