Powerfull 20000rpm rs 775 Mini High Speed 24 Volt Dc Motor

1 / 4

Powerfull 20000rpm rs 775 Mini High Speed 24 Volt Dc Motor

Send Inquiry

Product Description

1 Product Description

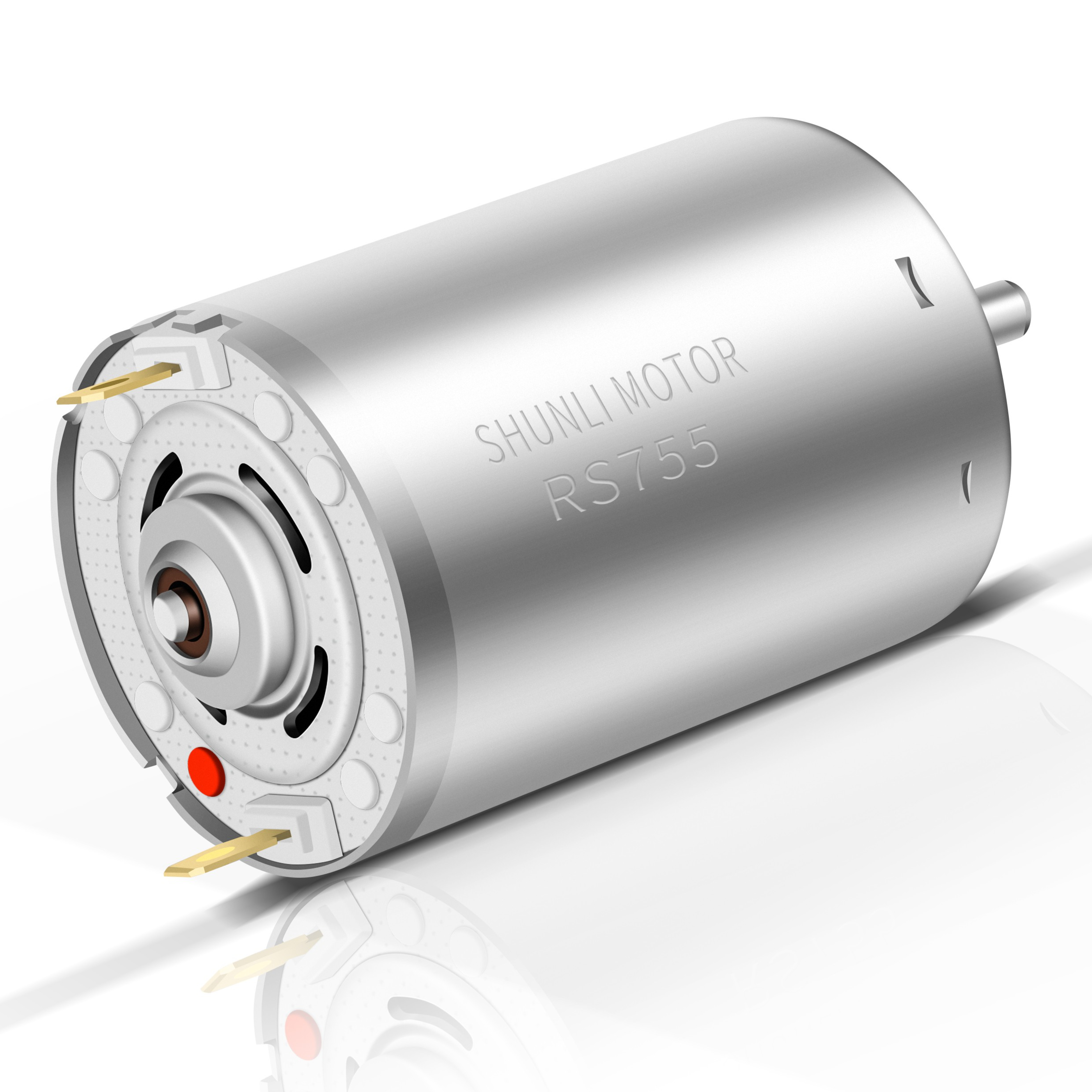

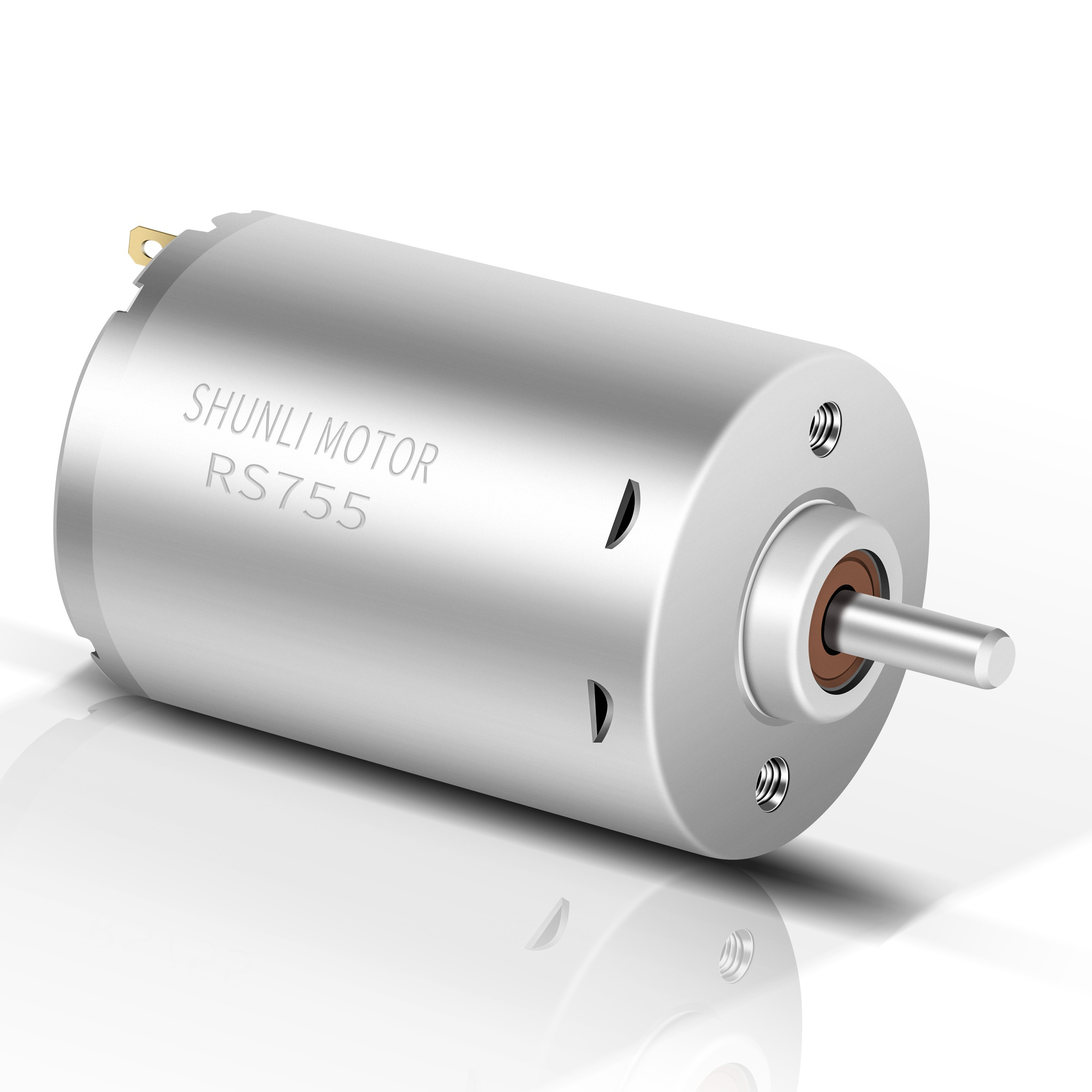

Powerful 20000rpm RS 775 Mini High Speed 24 Volt DC Motor

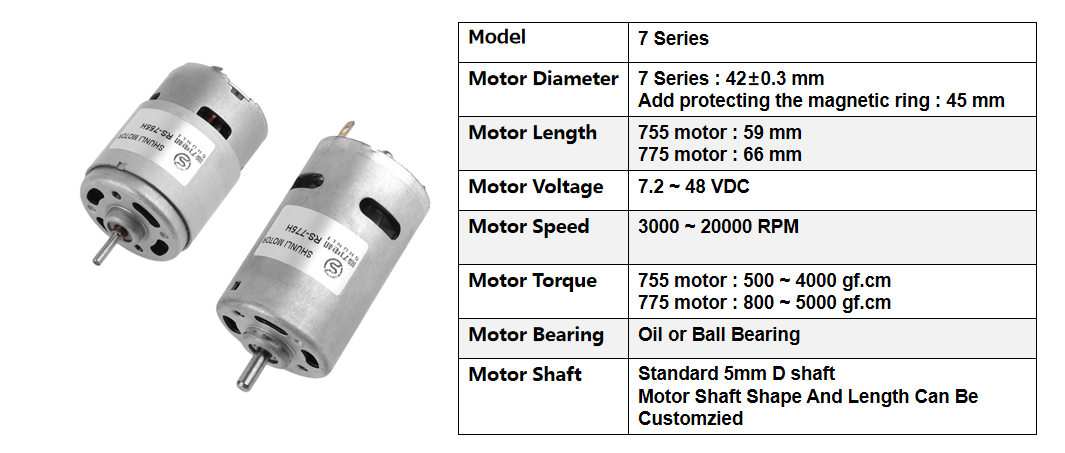

Product Details

Motor Customized Specification is available upon request.

2 Reference Drawings

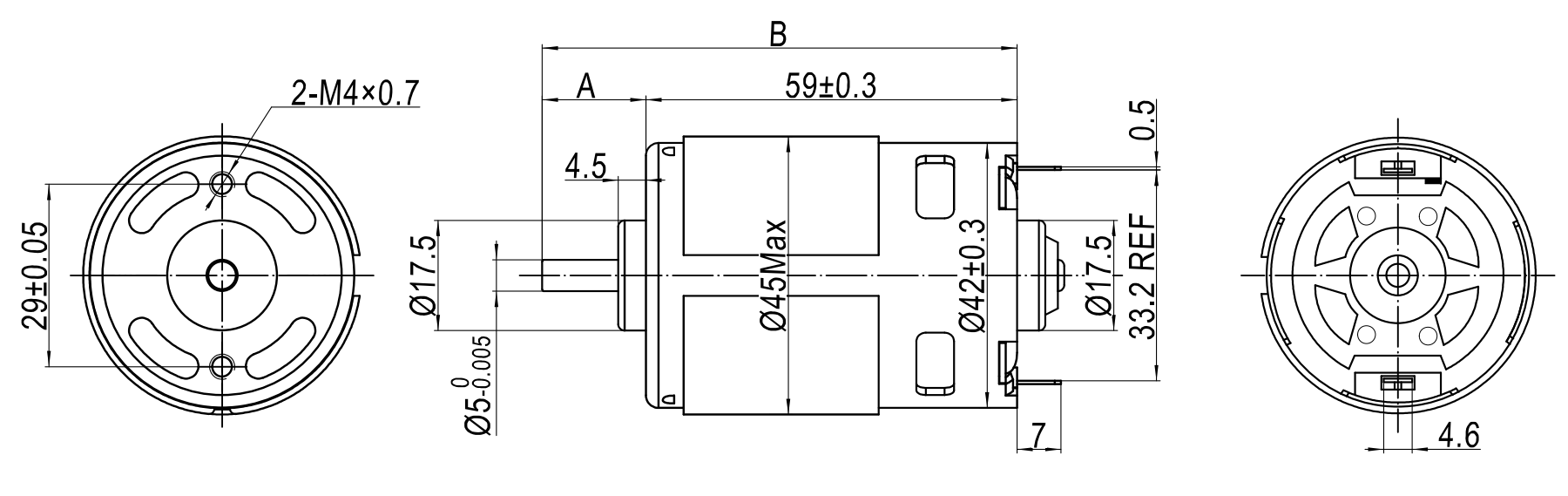

Model: RS-755 H

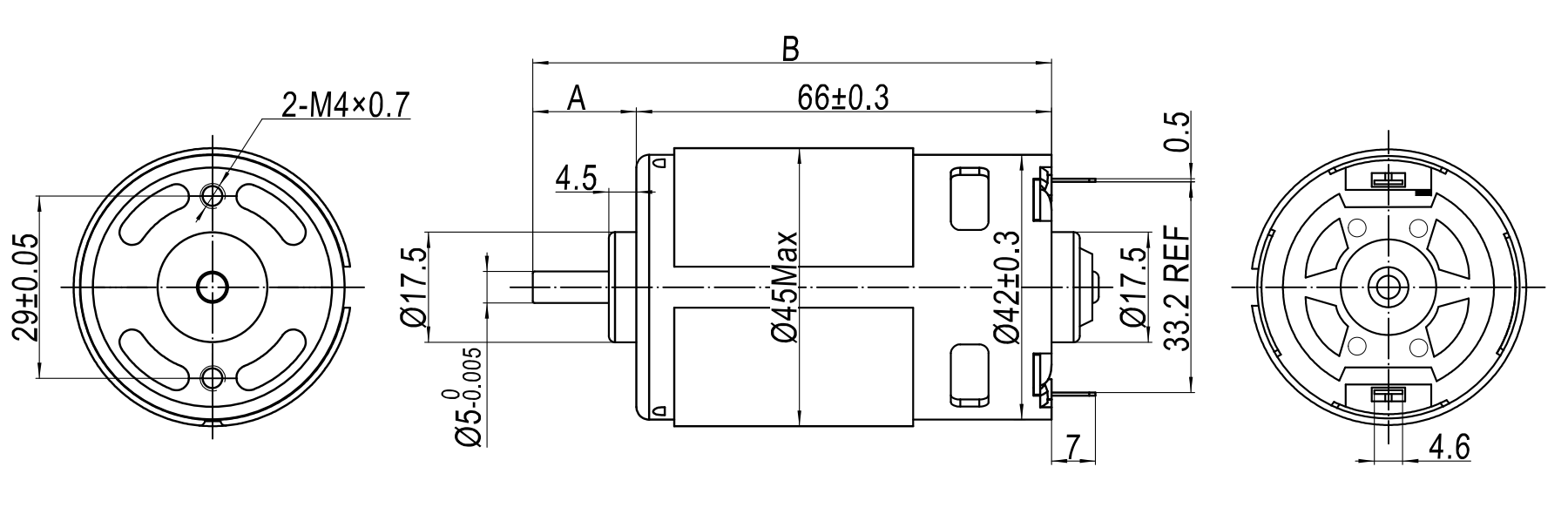

Model: RS-775 H

Note: The length of the shaft can be customized.

3 PMDC Motor Technical Data

Model	Rated Voltage (V)		No-Load		Rated Load				Stall
Model	Operating Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m)	Power (W)	Current (A)	Torque (mN.m)
RS-770H	6.0~12.0	12 VDC	15000	2.2	13177	15.91	81 / 826.2	111.8	115	666.9 / 6802
RS-775H	6.0~24.0	24 VDC	3478	0.15	2925	0.75	44.4 / 452.9	13.35	4.07	245.7 / 2506

4 Applications

5 Certifications & Quality

6 Recommended Products

Frequently Asked Questions

1. Are you a trading company or a manufacturer?

We are a specialized factory. We have focused on micro DC motors and DC gear motors for more than 14 years.

2. What are the payment terms for new customers?

We support various payment methods including Online Assurance Orders (Master Card, Visa, etc.), PayPal, and TT for our customers' convenience.

3. Can you customize a motor if I can't find a suitable one on the website?

Yes, we provide full customization services to design and manufacture motors according to your specific technical requirements.

4. Do you have professional certifications for your motors?

Yes, our motors are certified with CE, FCC, ISO, and other relevant standards. We can apply for additional certificates if required by your market.

5. How do you handle quality control?

We have professional inspection staff at every stage of the production process. Finished motors undergo rigorous testing using equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.

6. What is the typical lead time for customized orders?

Lead times depend on the complexity of the customization, but we strive to provide efficient turnaround times while maintaining strict quality standards. Please contact us for a detailed project timeline.
