390 Dc Motor for Machine Fan From Shenzhen Supplier 12v 6000rpm Motor

1 / 5

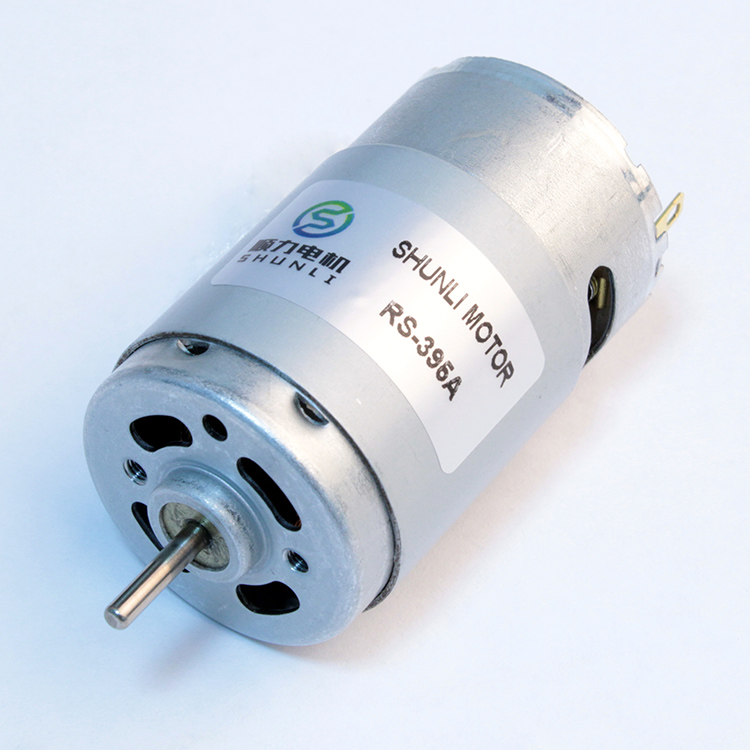

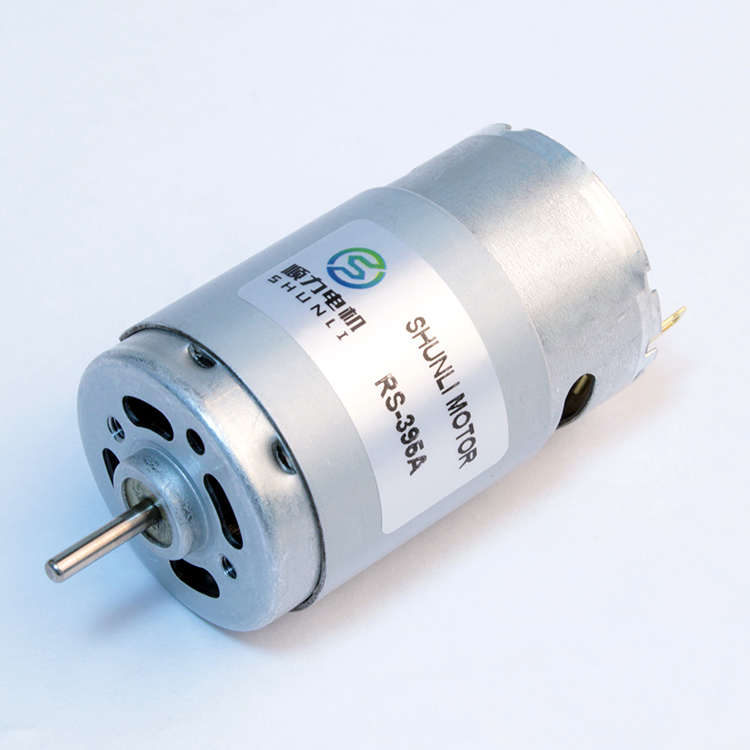

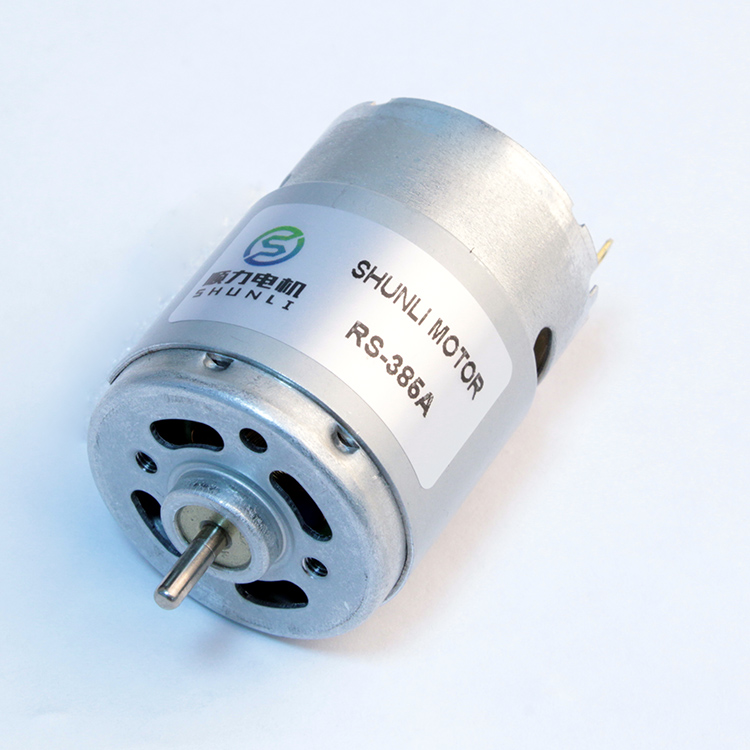

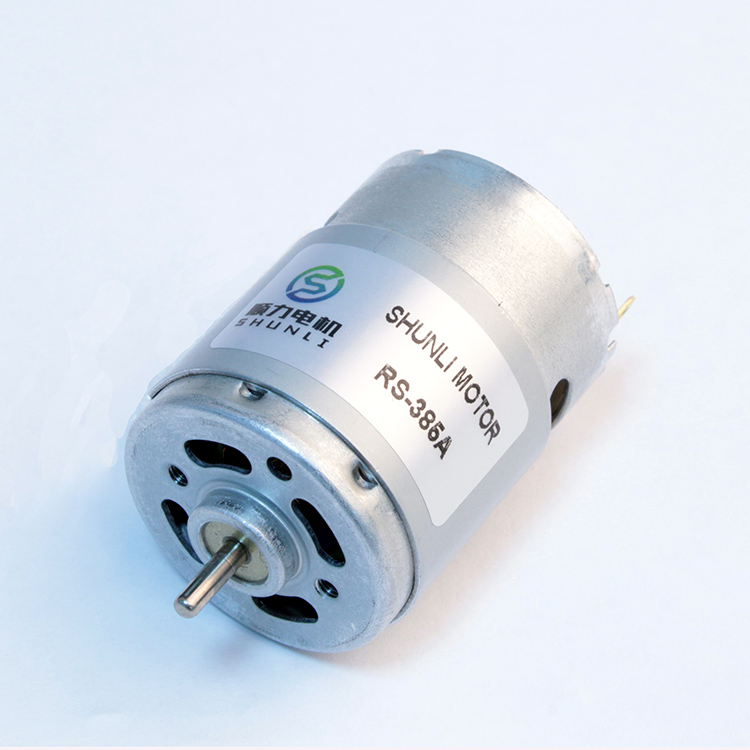

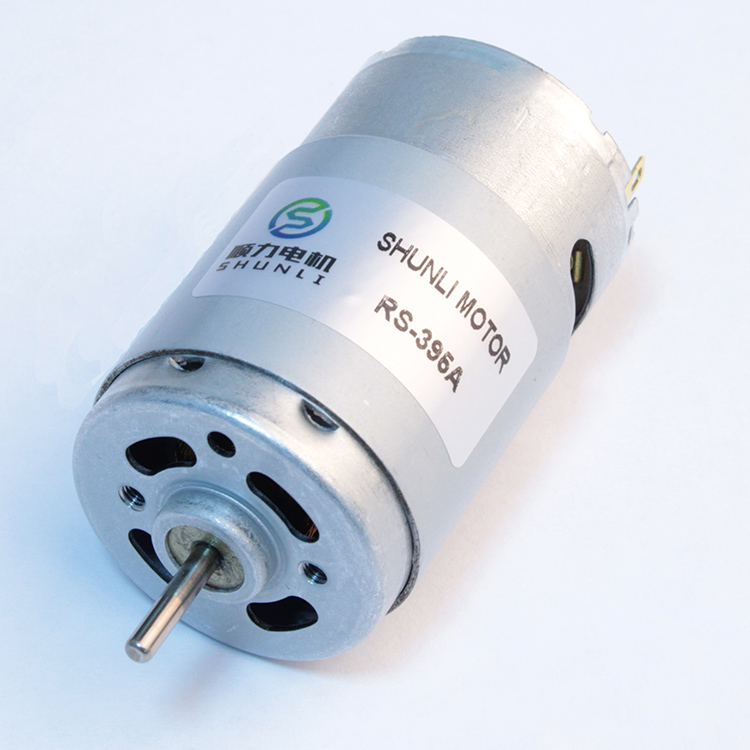

390 Dc Motor for Machine Fan From Shenzhen Supplier 12v 6000rpm Motor

Send Inquiry

Product Description

Product Description

390 DC Motor for Machine Fan 12V 6000RPM Motor

⚙️ Product Details: High-performance micro DC motor solutions.

🛠️ Motor Customized Specification Available.

Reference Drawing

🔹 RS - 365

🔹 RS - 385

🔹 RS - 395

📐 The length of shaft can be customized upon request.

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m	W	A	mN.m
RS-390SH	20156R	6.0~12.0	12VDC	5000	0.08	4243	0.33	6.07	2.72	2.22	42.2
RS-390SH	2975	6.0~12.0	12VDC	12000	0.29	10165	0.33	5.75	1.31	8.9	80.4
RS-395SH	15130	6.0~12.0	12VDC	3650	0.66	2949	0.25	5.83	1.8	1.06	30.4
RS-395SH	15100R	6.0~24.0	24VDC	10300	0.07	8893	0.38	7.09	6.68	2.66	54.9

FAQ

Q1: What are the main applications for the 390 DC motor?

A1: This motor is widely used in machine fans, household appliances, office automation equipment, and various small industrial tools due to its reliable performance and high RPM.

Q2: Can the shaft length and technical specifications be customized?

A2: Yes, the shaft length, voltage, speed, and other technical parameters can be fully customized to meet your specific application requirements.

Q3: What is the typical operating voltage for the RS-390 and RS-395 series?

A3: These motors typically operate within a range of 6V to 24V DC, depending on the specific model and winding configuration chosen.

Q4: Does the motor provide high torque at rated speeds?

A4: Yes, the PMDC motor design ensures efficient power output and stable torque, as detailed in the technical datasheet for each model variant.

Q5: Is this motor suitable for continuous high-speed operation?

A5: These motors are designed for high efficiency. However, the specific duty cycle depends on the load and environmental cooling. Please refer to the rated power and current specs for optimal usage.

Q6: How can I verify the dimensions for my assembly?

A6: Please refer to the reference drawings provided for models RS-365, RS-385, and RS-395 which detail the physical dimensions and mounting points.

Product Detail

390 Dc Motor for Machine Fan From Shenzhen Supplier 12v 6000rpm Motor

Product Description

390 DC Motor for Machine Fan 12V 6000RPM Motor
