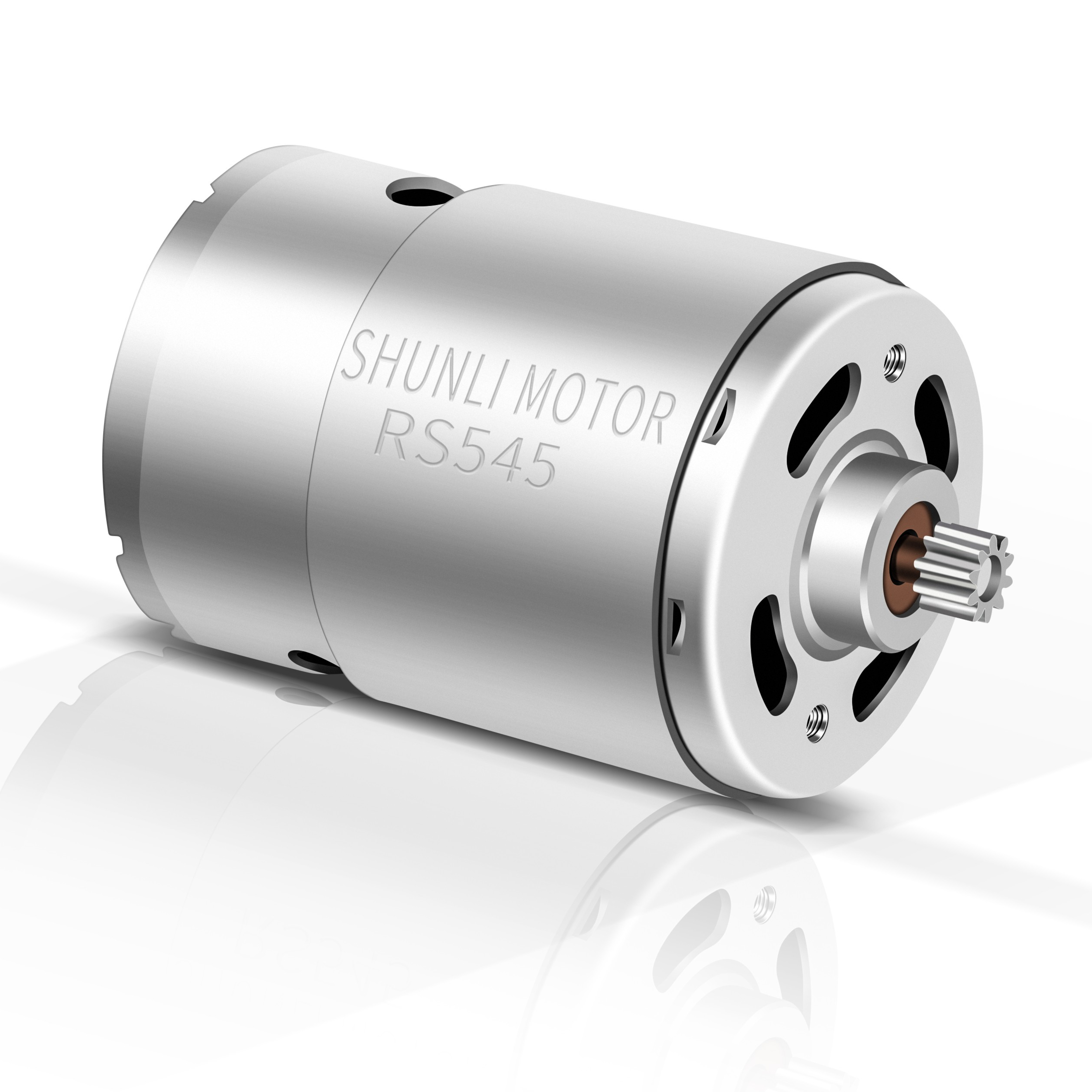

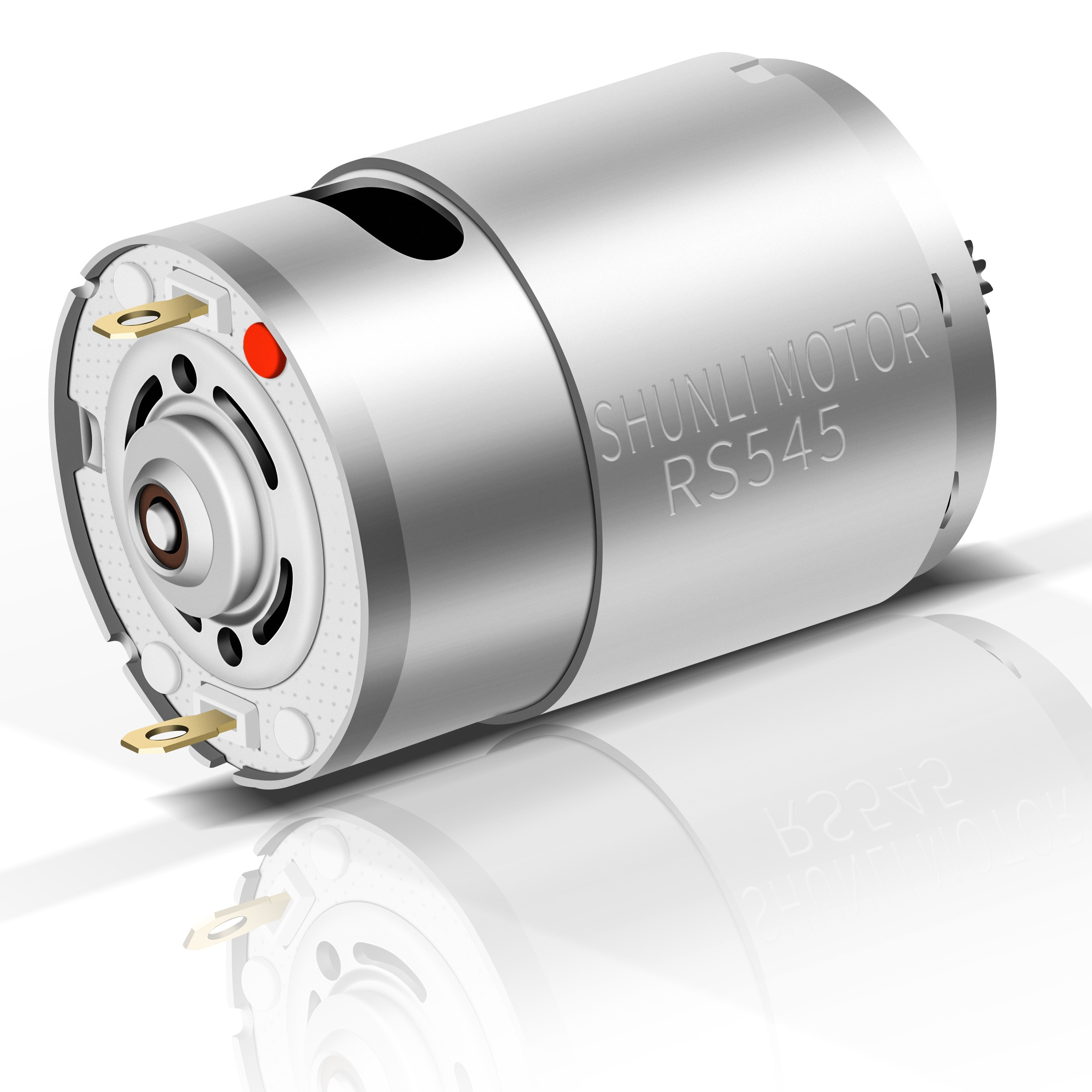

6v 12v 24v Micro Motor Electric Car Motor Micro Dc Motor

1 / 5

6v 12v 24v Micro Motor Electric Car Motor Micro Dc Motor

Send Inquiry

Product Description

Product Description

6v 12v 24v micro motor electric car motor micro dc motor

Product Details

⚙️ Motor Customized Specification Available

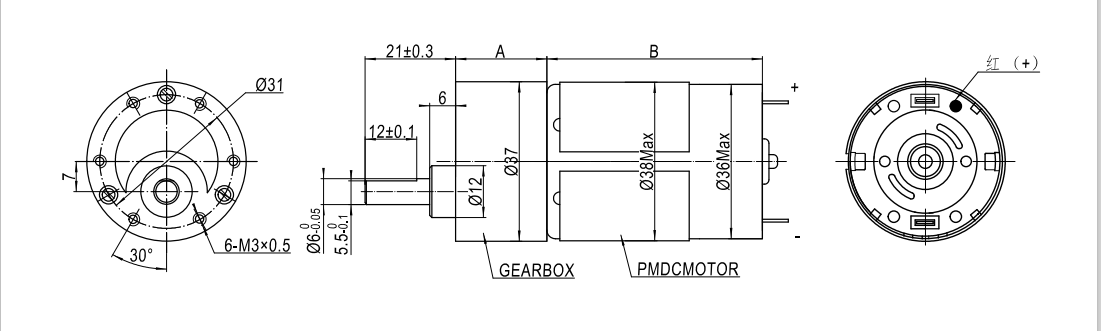

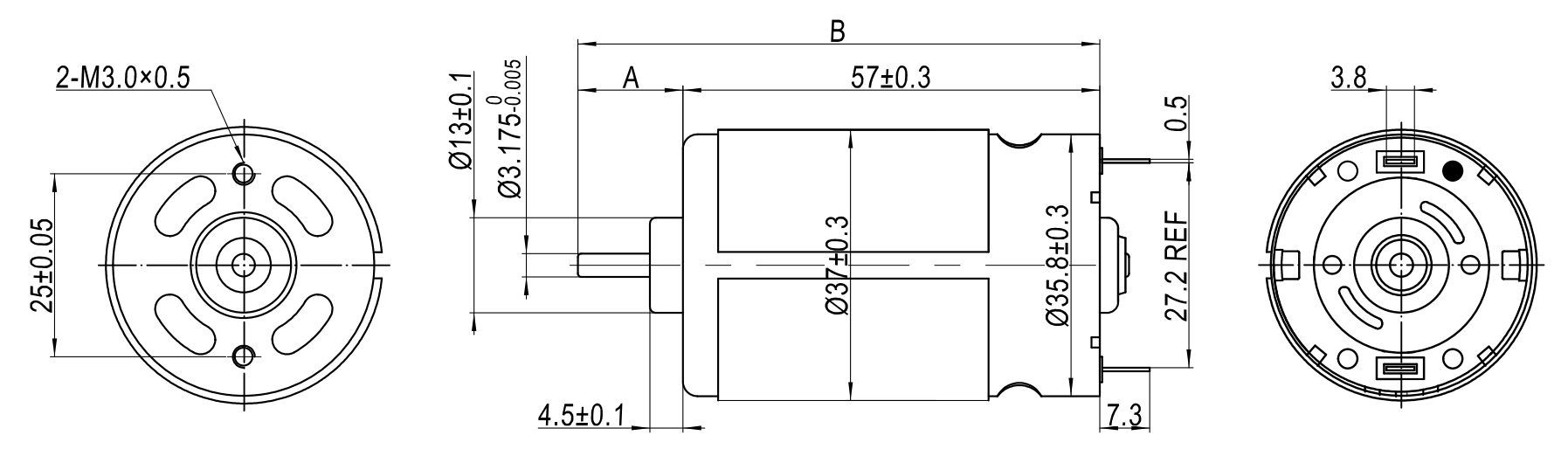

Reference Drawing

RS - 545 A

RS - 555 A

RS - 575 A

📏 The length of shaft can be customized.

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage(V)		No-Load		Rated				Stall
Model		Operating Range	Nominal	Speed (RPM)	Current (A)	Speed (RPM)	Current (A)	Torque (mN.m / gf.cm)	Power (W)	Current (A)	Torque (mN.m / gf.cm)
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7/262	10.6	4.8	204/2080
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6/261.3	40.36	48.89	281.4/2870
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9/223.4	15.35	11.31	156/1591
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2/195.8	12.09	4.2	124.5/1270

Recommend Product

Frequently Asked Questions (FAQ)

Q: What voltage options are available for these micro DC motors? A: We offer 6V, 12V, and 24V versions as standard, with operating ranges specified in the technical datasheet.

Q: Can the motor shaft dimensions be customized? A: Yes, the length and shape of the shaft can be customized according to your specific project requirements.

Q: What is the maximum speed of the RS-550H model? A: The RS-550H (Model 6034) can reach a no-load speed of up to 16,000 RPM at 12VDC.

Q: Are technical drawings available for all models? A: Yes, reference drawings for models like RS-545A, RS-555A, and RS-575A are provided to assist with integration.

Q: What are the typical applications for these micro motors? A: These motors are commonly used in electric cars, micro-appliances, power tools, and various DIY electronic projects.

Q: Do these motors support bidirectional rotation? A: Yes, as PMDC motors, the direction of rotation can be changed by reversing the polarity of the power supply.
