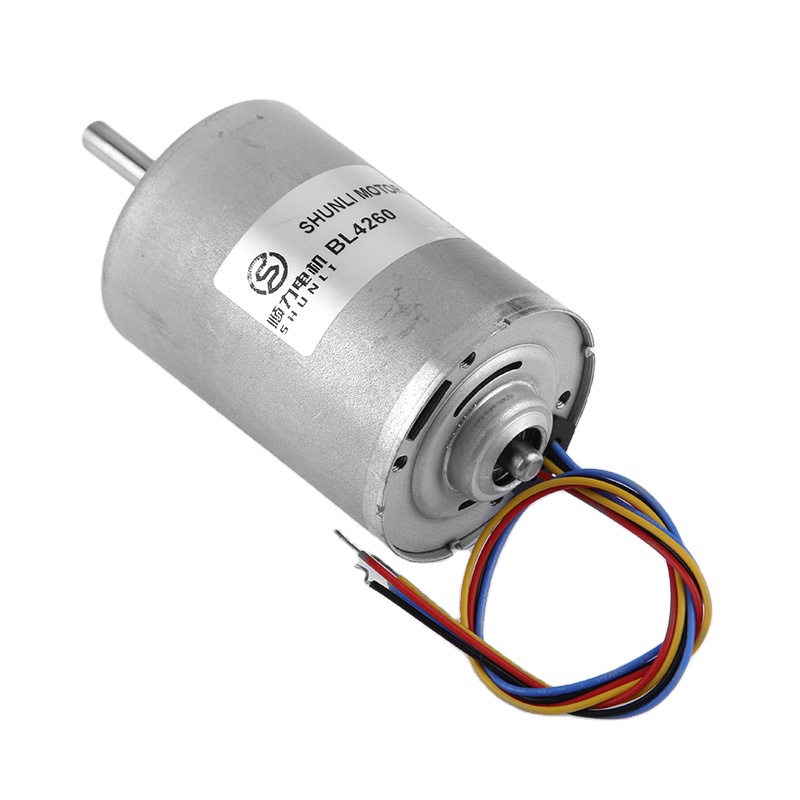

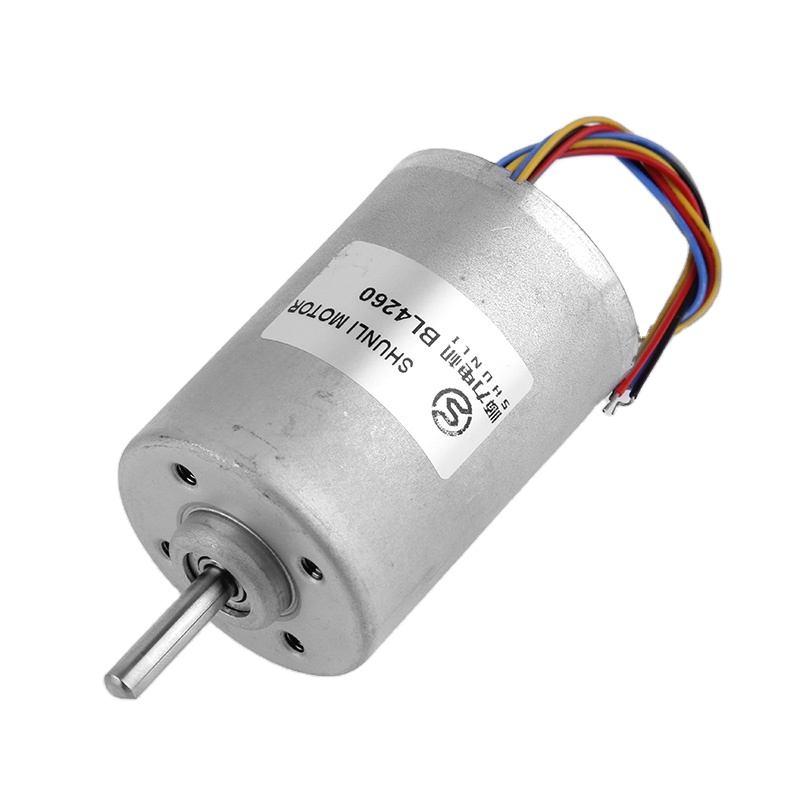

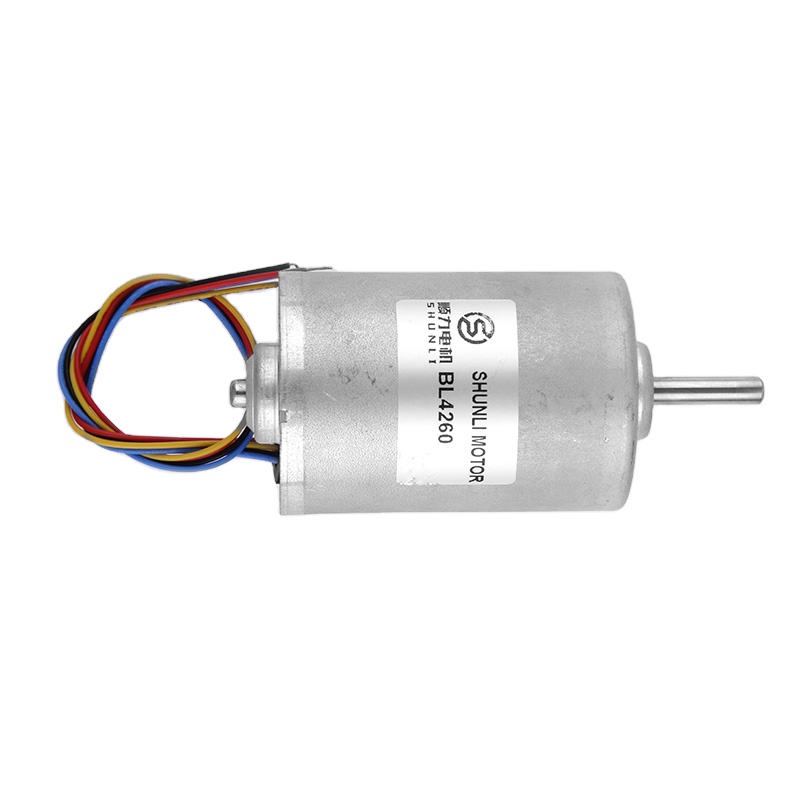

Power Brushless Dc Motor 12v 18v 24v 1500 RPM 3000 RPM 4000 RPM Micro Motor Permanent Magnet 5MM High Torque Brushless Motor

1 / 5

Power Brushless Dc Motor 12v 18v 24v 1500 RPM 3000 RPM 4000 RPM Micro Motor Permanent Magnet 5MM High Torque Brushless Motor

Send Inquiry

Product Description

🔹 Product Description

12V 18V 24V Power Brushless DC Motor (1500-4000 RPM)

High-torque permanent magnet micro motors designed for Washing machines, RC planes, DIY Technical tools, fans, Robots, and Pumps.

⚙️ Product Features: Optimized for high efficiency and long-term durability in various industrial and hobbyist applications.

📋 Technical Specification

BLDC MOTOR Terminations

PIN NO.	PIN Arrangement
1	VCC
2	FG
3	CW/CCW
4	GND
5	PWM

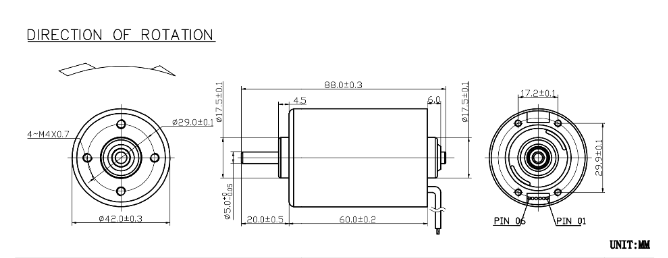

Reference Datasheet

🌟 Recommended Products

Frequently Asked Questions

What are the available voltage options for this brushless motor?

This motor supports multiple voltage inputs, including 12V, 18V, and 24V, making it versatile for different power supply setups.

What speed ranges can these motors achieve?

Depending on the specific configuration and voltage, the motor can operate at rated speeds of 1500 RPM, 3000 RPM, or 4000 RPM.

Does the motor support speed control and direction switching?

Yes, the motor includes dedicated terminations for PWM (Pulse Width Modulation) speed control and CW/CCW (Clockwise/Counter-Clockwise) direction switching.

What are the primary applications for this micro motor?

It is widely used in washing machines, RC planes, DIY technical tools, cooling fans, robotics, and small water pumps.

Is it possible to get customized specifications?

Yes, technical specifications such as shaft length, torque, and speed can be customized to meet specific application requirements.

What is the advantage of using a brushless motor over a brushed one?

Brushless motors offer higher efficiency, lower noise, longer lifespan due to the lack of brush wear, and better performance in high-speed applications.
