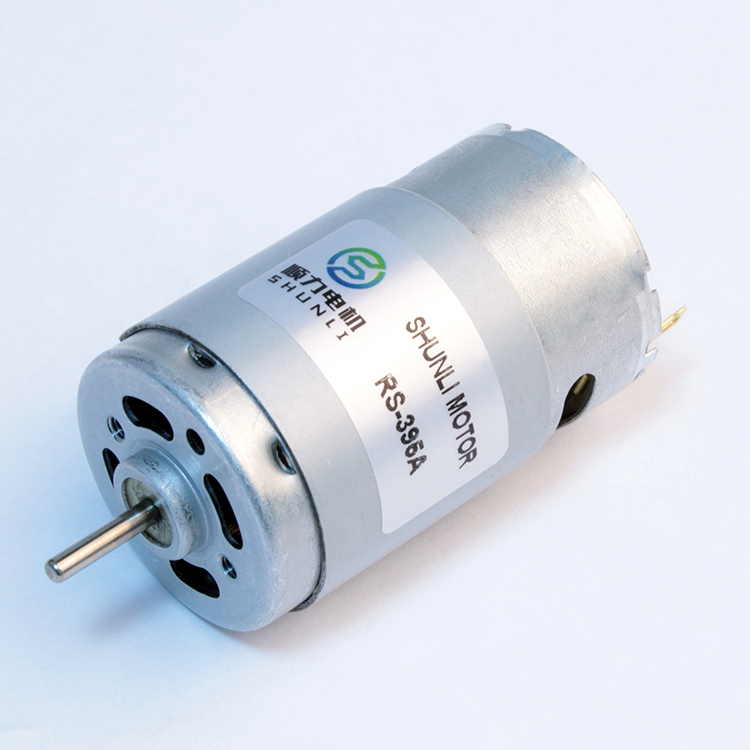

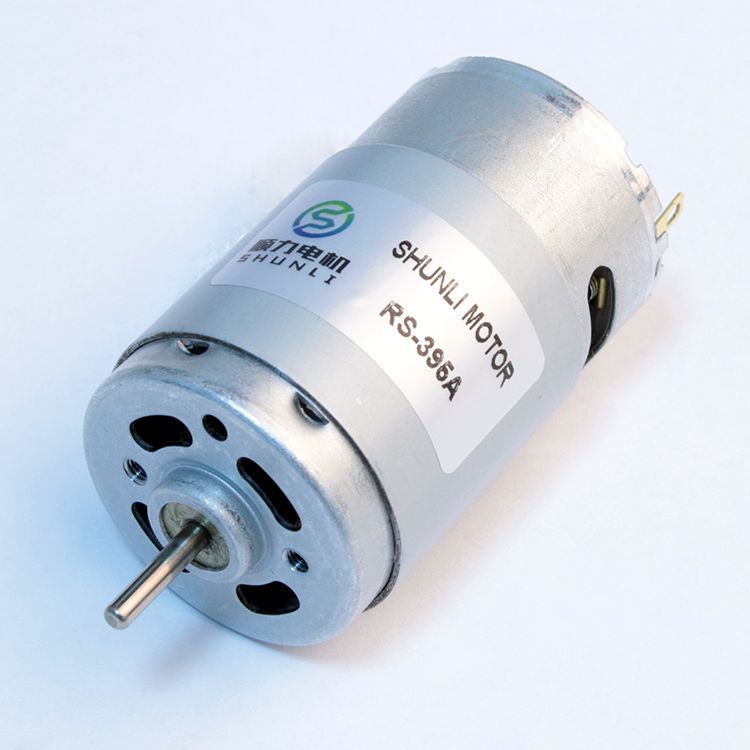

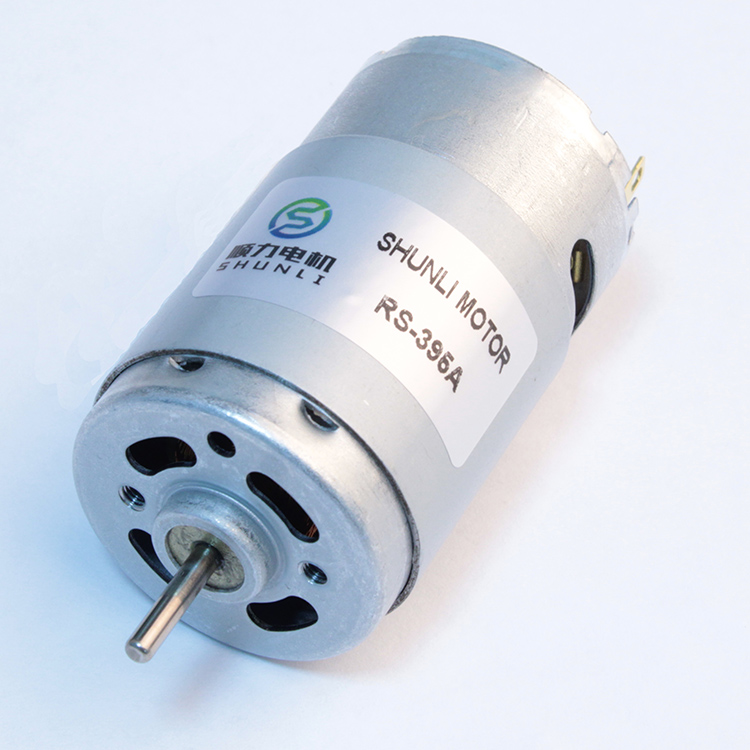

Shunli Custom Professional Manufacturer Hair Dryer and Micro Vacuum Cleaner 390PH 12v Dc Motor Brush Brushless

1 / 5

Shunli Custom Professional Manufacturer Hair Dryer and Micro Vacuum Cleaner 390PH 12v Dc Motor Brush Brushless

Send Inquiry

Product Description

Professional manufacturer hair dryer and micro vacuum cleaner 390PH 12v dc motor

Product Details

Motor Customized Specification Available

Reference Drawing

------ RS - 365

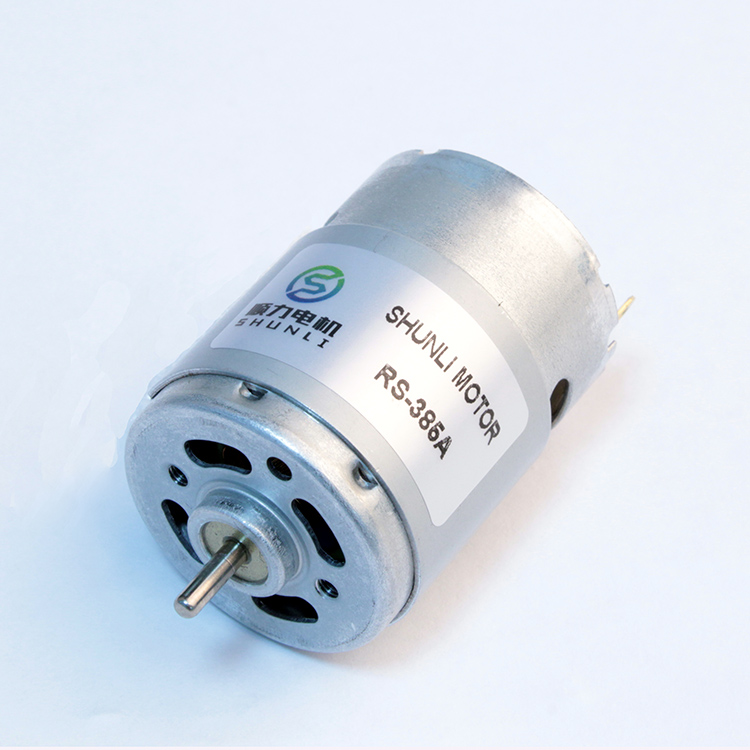

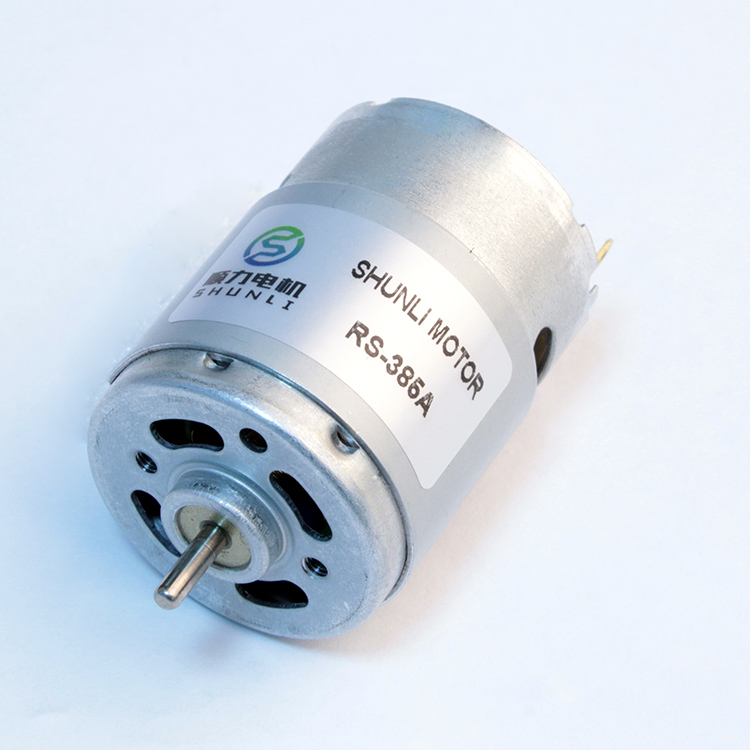

------ RS - 385

------ RS - 395

The length of shaft can be customized.

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-390SH	20156R	6.0~12.0	12VDC	5000	0.08	4243	0.33	6.07/61.9	2.72	2.22	42.2/430
RS-390SH	2975	6.0~12.0	12VDC	12000	0.29	10165	0.33	5.75/58.6	1.31	8.9	80.4/820
RS-395SH	15130	6.0~12.0	12VDC	3650	0.66	2949	0.25	5.83/59.5	1.8	1.06	30.4/310
RS-395SH	15100R	6.0~24.0	24VDC	10300	0.07	8893	0.38	7.09/72.3	6.68	2.66	54.9/560

Recommend Products

Frequently Asked Questions

What are the primary applications for the 390PH DC motor?

The 390PH DC motor is specifically designed for high-performance applications such as professional hair dryers and micro vacuum cleaners.

Can the motor specifications be customized?

Yes, technical parameters such as voltage, speed, and torque can be adjusted. Additionally, the length of the shaft is fully customizable to meet your specific design requirements.

What is the operating voltage range for the RS-390 and RS-395 series?

The standard operating range is typically between 6.0V and 12.0V, with certain models like the RS-395SH supporting up to 24VDC.

What is the typical no-load speed for these motors?

Depending on the specific model and winding, no-load speeds range from approximately 3,650 RPM to as high as 12,000 RPM at rated voltage.

Are these motors available for bulk professional manufacturing?

As a professional manufacturer, we provide these PMDC motors for large-scale industrial use, ensuring consistent quality and technical support.

How can I obtain a detailed technical drawing for my project?

Reference drawings for models like RS-365, RS-385, and RS-395 are available in our datasheet section to help with your initial structural design.
