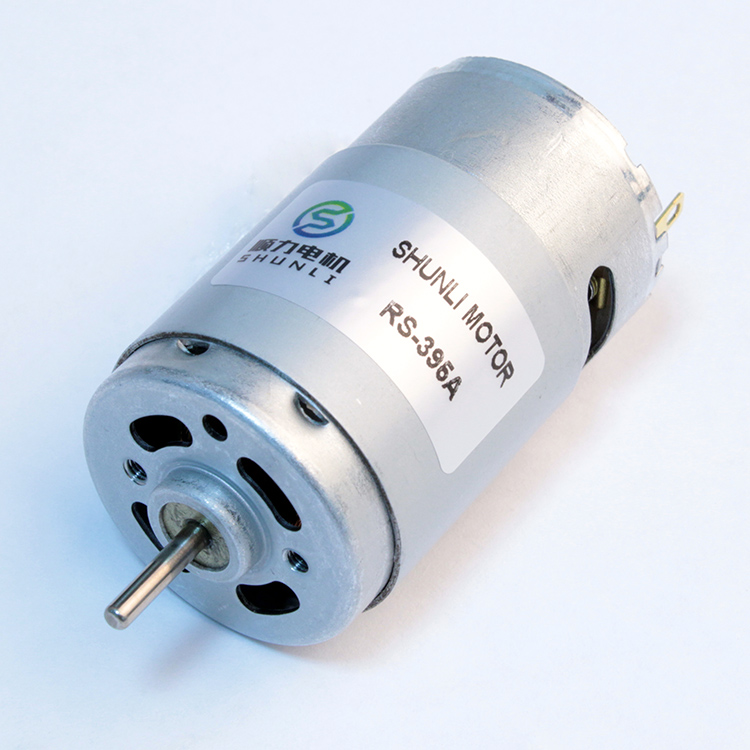

Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
1 / 5
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model
Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model

Shunli RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque for Electric Drill Garden Tools Toy Model

Send Inquiry

Product Description

Micro 380 DC Motor Banner
Product Description

RS-380 RS-385 Micro 380 DC Motor 12V~24V 13000RPM High Speed Large Torque

Designed for high-performance applications including electric drills, garden tools, and toy models.

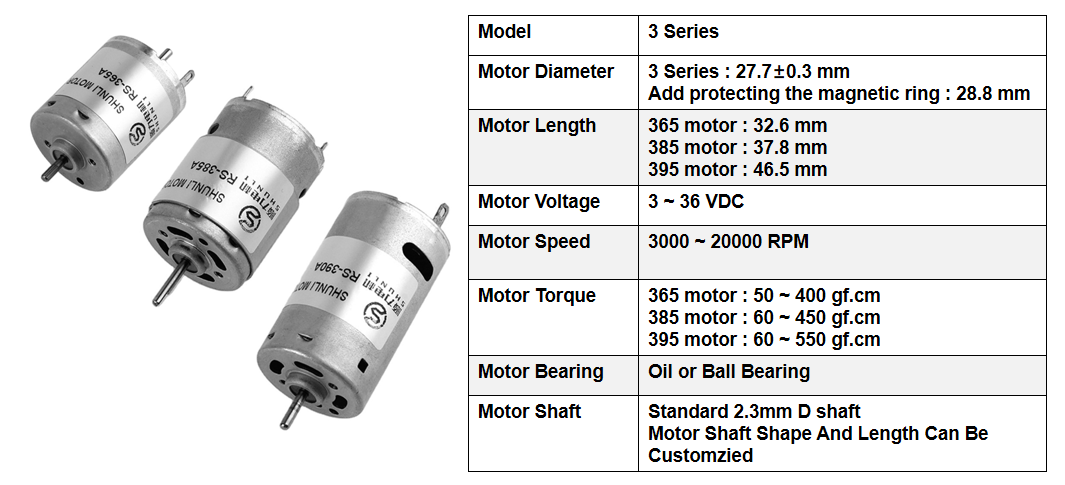

Product Details
Product Details
Motor Customized Specification available. Please contact for further details.
Reference Drawing
RS - 365

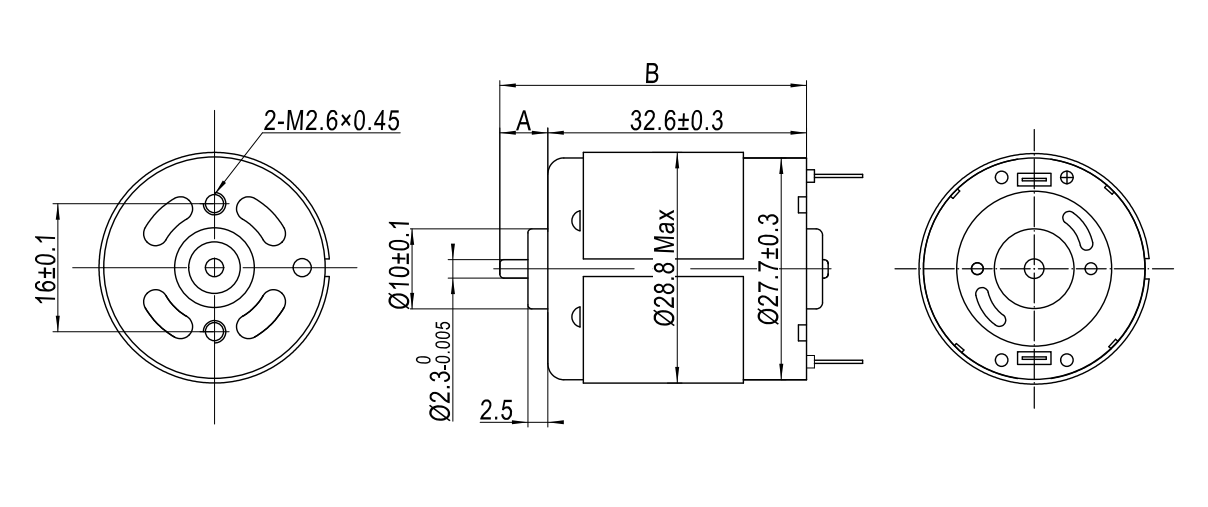

RS-365 Drawing
RS - 385

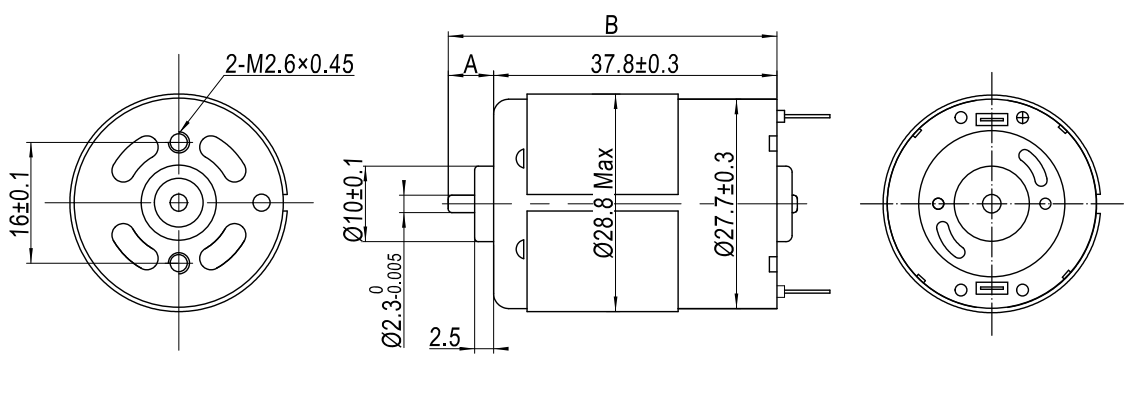

RS-385 Drawing
RS - 395

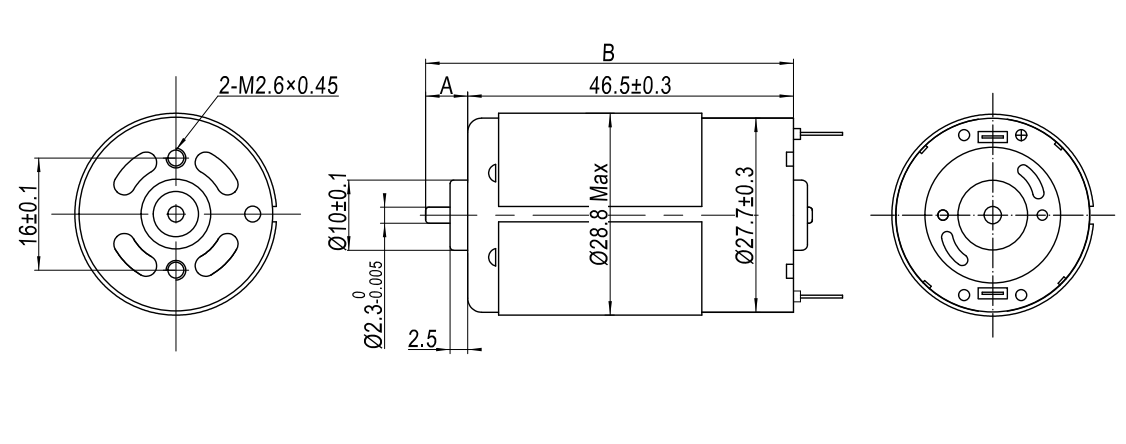

RS-395 Drawing
The length of the shaft can be customized upon request.
Reference Datasheet
Model Rated Voltage (V) No-Load Rated Load Stall
Series Sub-Model Range Nominal Speed (RPM) Current (A) Speed (RPM) Current (A) Torque (mN.m) Power (W) Current (A) Torque (mN.m)
RS-390SH 20156R 6.0~12.0 12VDC 5000 0.08 4243 0.33 6.07 2.72 2.22 42.2
2975 6.0~12.0 12VDC 12000 0.29 10165 0.33 5.75 1.31 8.9 80.4
RS-395SH 15130 6.0~12.0 12VDC 3650 0.66 2949 0.25 5.83 1.8 1.06 30.4
15100R 6.0~24.0 24VDC 10300 0.07 8893 0.38 7.09 6.68 2.66 54.9
Recommend Products
Product Range
Motor Type A Motor Type B Motor Type C
Motor Type D Motor Type E Motor Type F
Motor Type G
Inquiry & Support

Looking forward to your feedback!

Contact Banner
Frequently Asked Questions
Q1: What is the operating voltage range for these micro DC motors? A1: The operating voltage typically ranges from 6.0V to 24.0V DC, depending on the specific model (e.g., RS-390, RS-395).
Q2: Can the motor shaft be customized? A2: Yes, the length and specifications of the shaft can be customized to meet your specific application requirements.
Q3: What are the primary applications for the RS-380 and RS-385 series? A3: These motors are ideal for electric drills, garden tools, toy models, and other high-speed, large-torque applications.
Q4: What is the maximum speed (RPM) attainable? A4: High-speed models can reach up to 13,000 RPM or more under no-load conditions at rated voltage.
Q5: Are technical drawings available for all models? A5: Yes, we provide reference drawings for the RS-365, RS-385, and RS-395 series to assist with your design integration.
Q6: How do I choose between the different sub-models? A6: Selection depends on your required torque, speed, and power consumption. Please refer to the Technical Datasheet table for detailed performance metrics of each sub-model.
