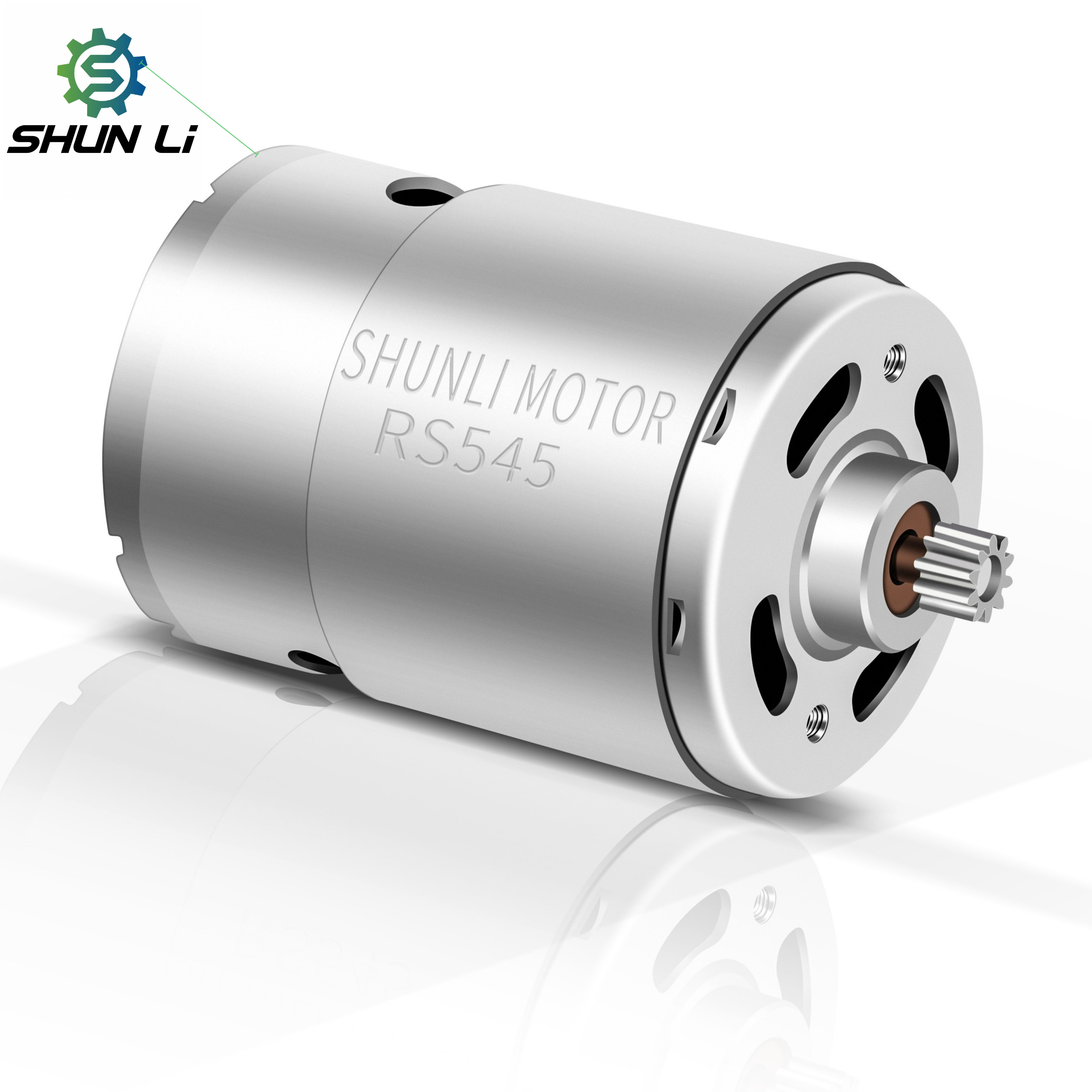

SRS-555 Dc Motor 12v 24v Micro Dc Motor for Toys

1 / 4

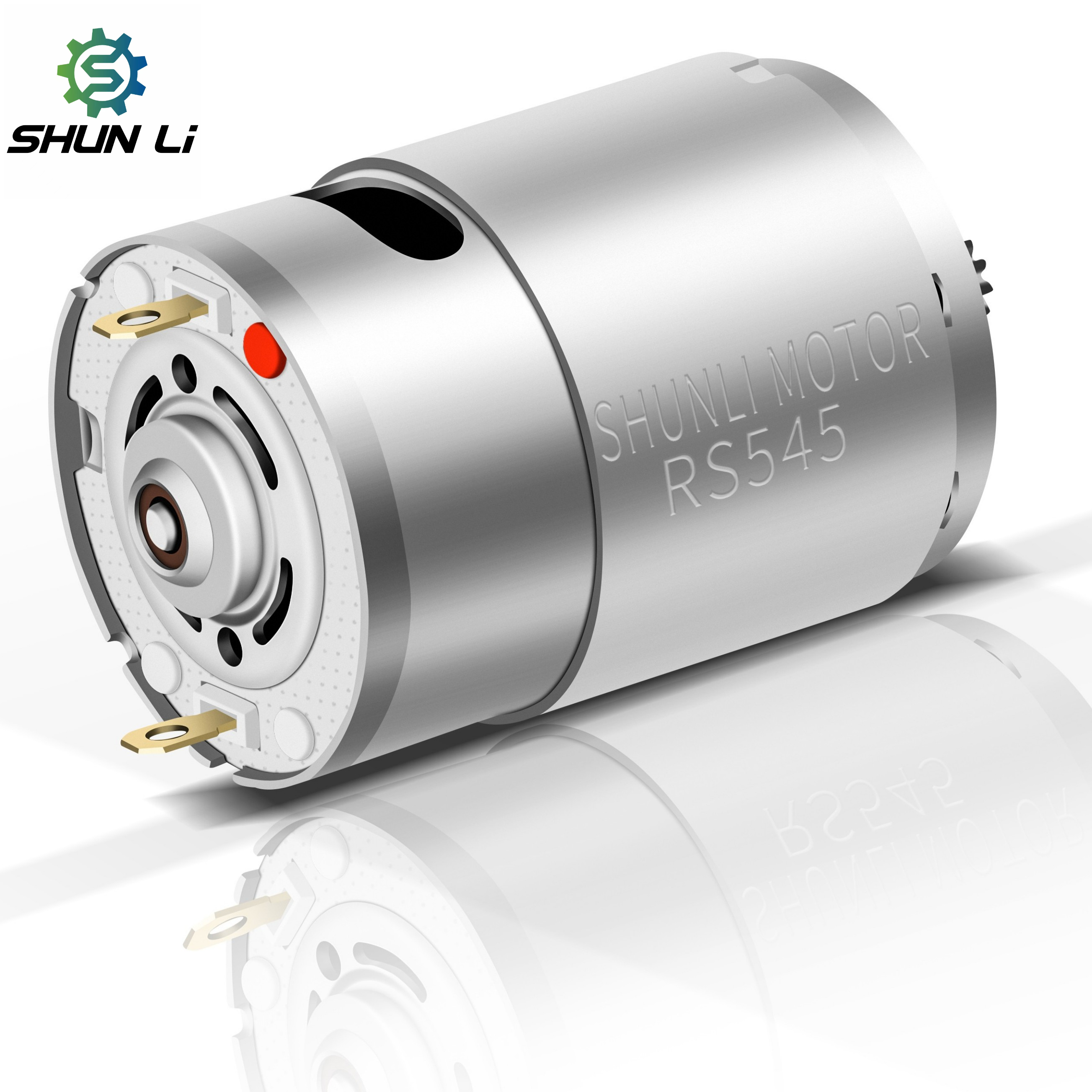

SRS-555 Dc Motor 12v 24v Micro Dc Motor for Toys

Send Inquiry

Product Description

Product Description

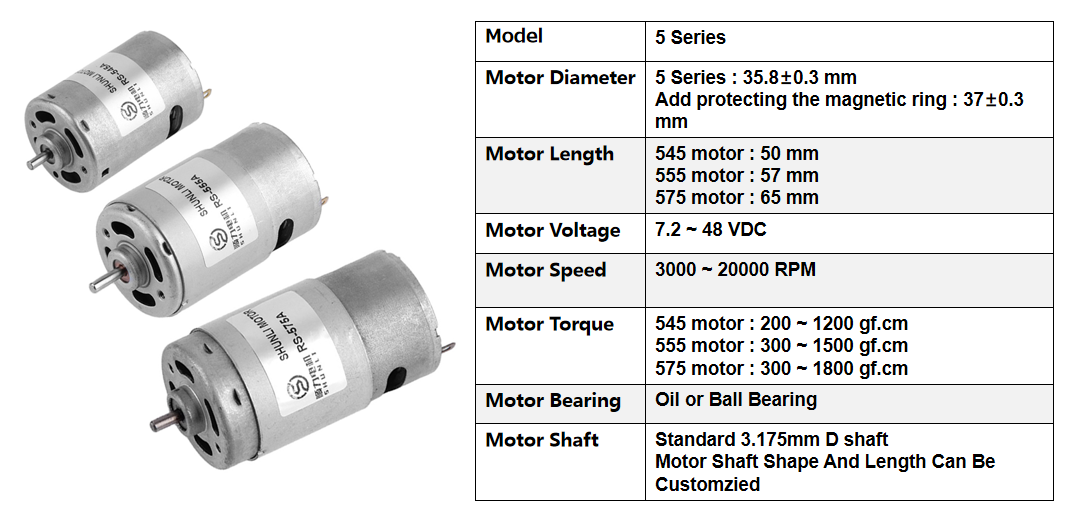

SRS-555 12V 24V Micro DC Motor for Water Pump

Motor Customized Specification Available Upon Request

Reference Technical Drawings

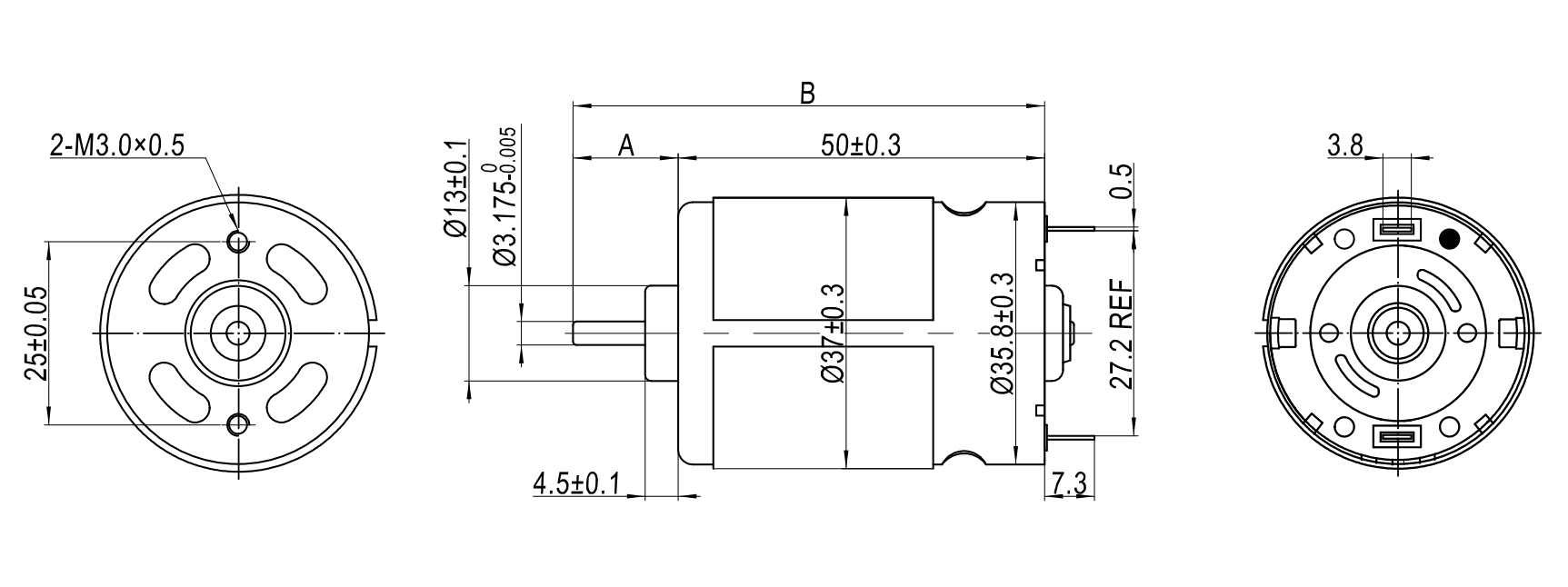

RS - 545 A RS-545 A Technical Drawing

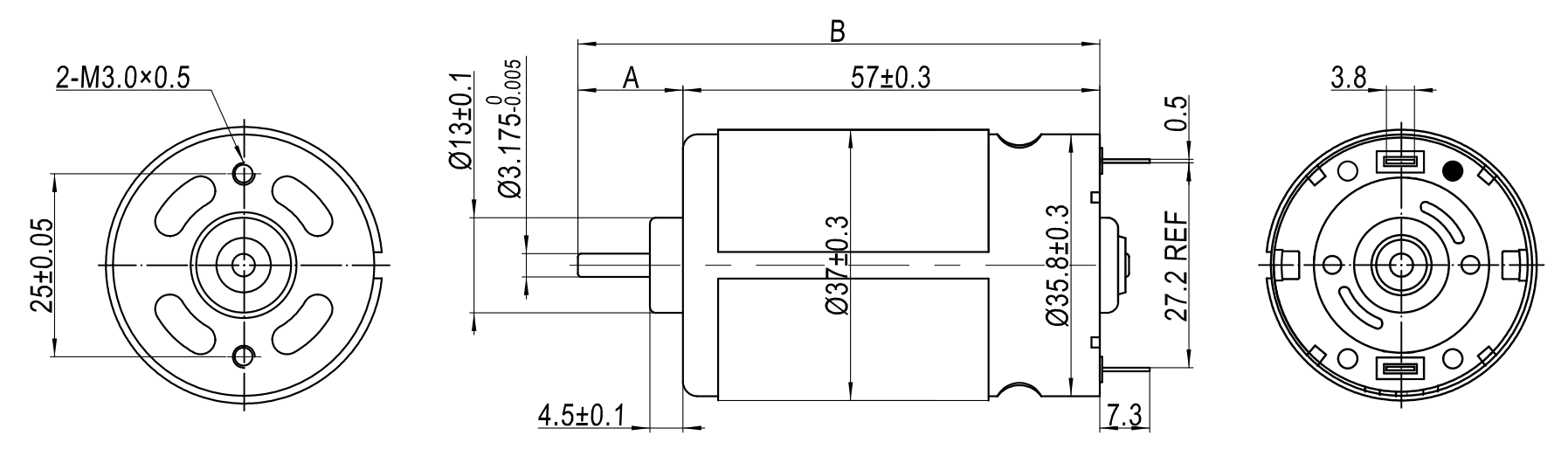

RS - 555 A RS-555 A Technical Drawing

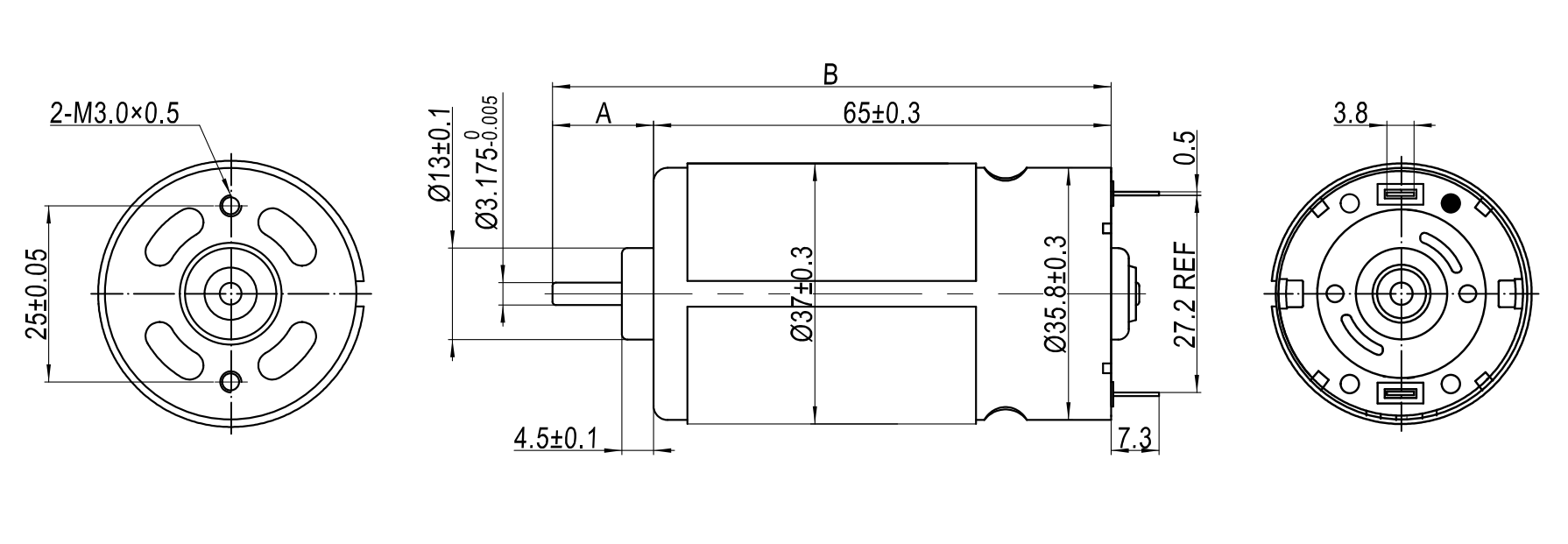

RS - 575 A RS-575 A Technical Drawing

Note: The length of the shaft can be customized to meet your specific application needs.

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage(V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m	W	A	mN.m
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7	10.6	4.8	204
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6	40.36	48.89	281.4
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9	15.35	11.31	156
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2	12.09	4.2	124.5

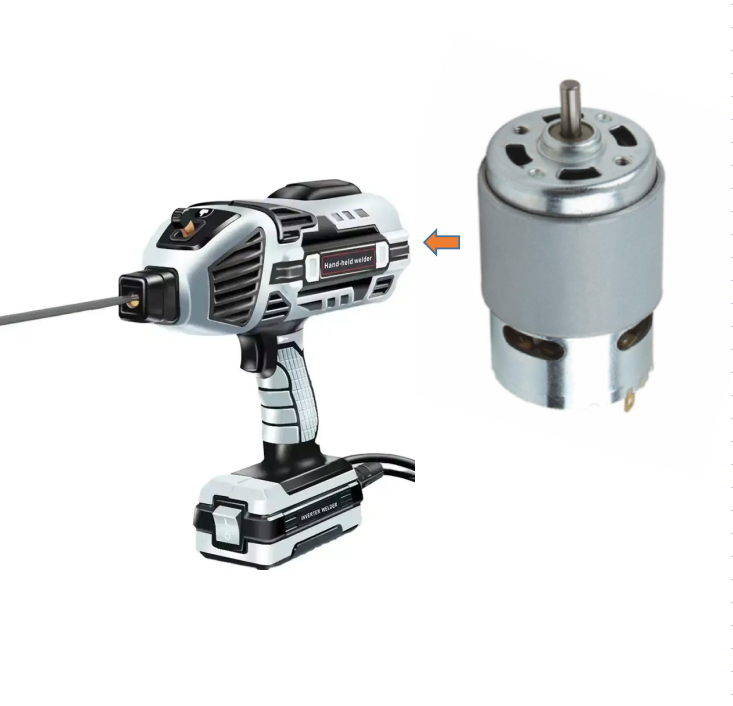

Industrial Applications

Professional Certifications

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a specialized factory with over 14 years of experience in micro DC motors and DC gear motor production.

What are the payment terms for new customers?

We support various payment methods including online assurance orders (MasterCard, Visa), PayPal, and TT for our customers' convenience.

Can you customize a motor if I cannot find a suitable one on the website?

Yes, we provide full customization services to design and manufacture motors according to your specific technical requirements.

Do your motors come with quality certifications?

Yes, our motors are certified with CE, FCC, and ISO standards. We can also apply for other specific certificates if required by your market.

How do you ensure product quality control?

We employ professional inspection staff at every production stage. Finished motors undergo rigorous testing using advanced equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Noise Testers.

What is the typical lead time for customized motor samples?

Lead times vary based on the level of customization, but we strive to provide rapid prototyping to support your project timelines. Please contact us for a specific schedule.
