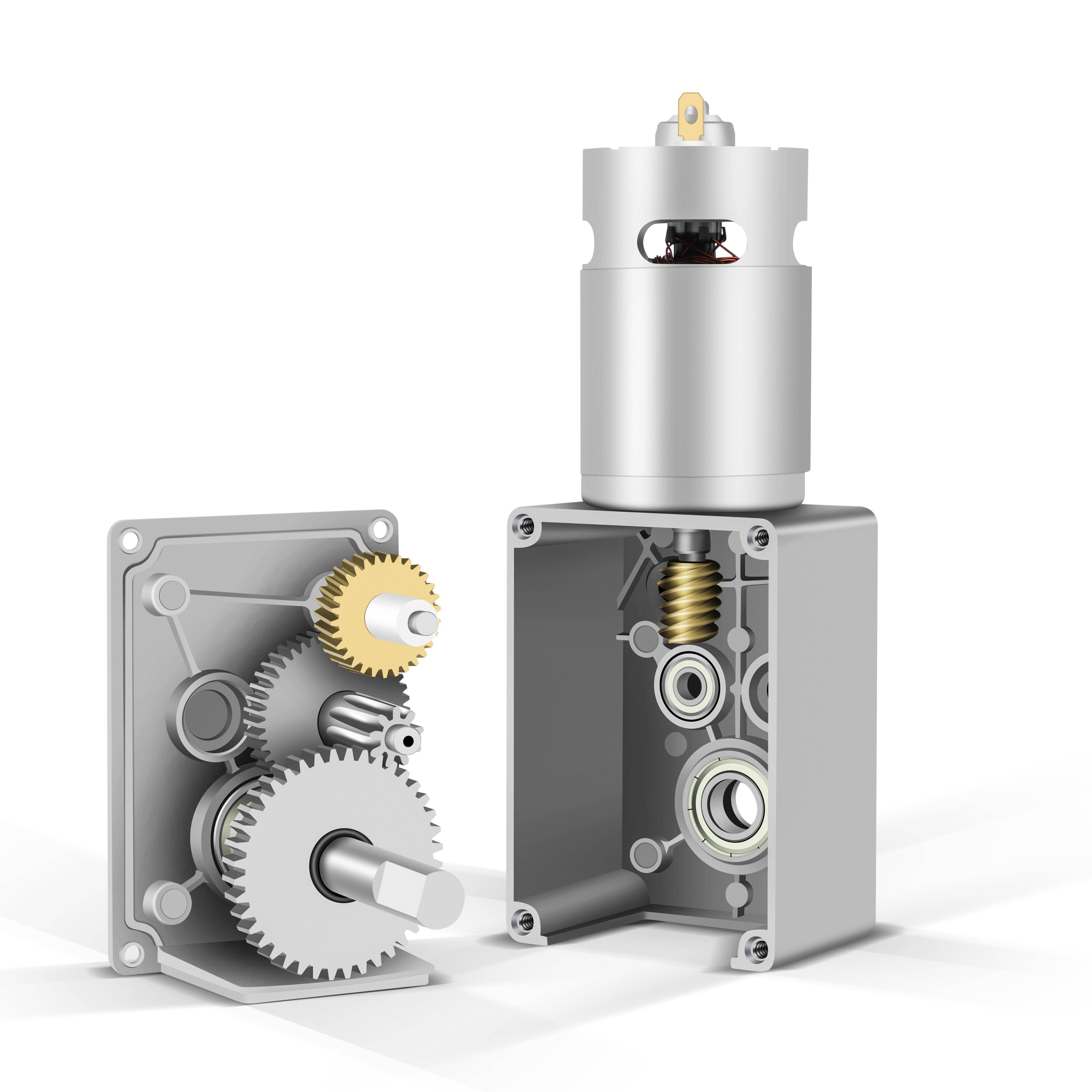

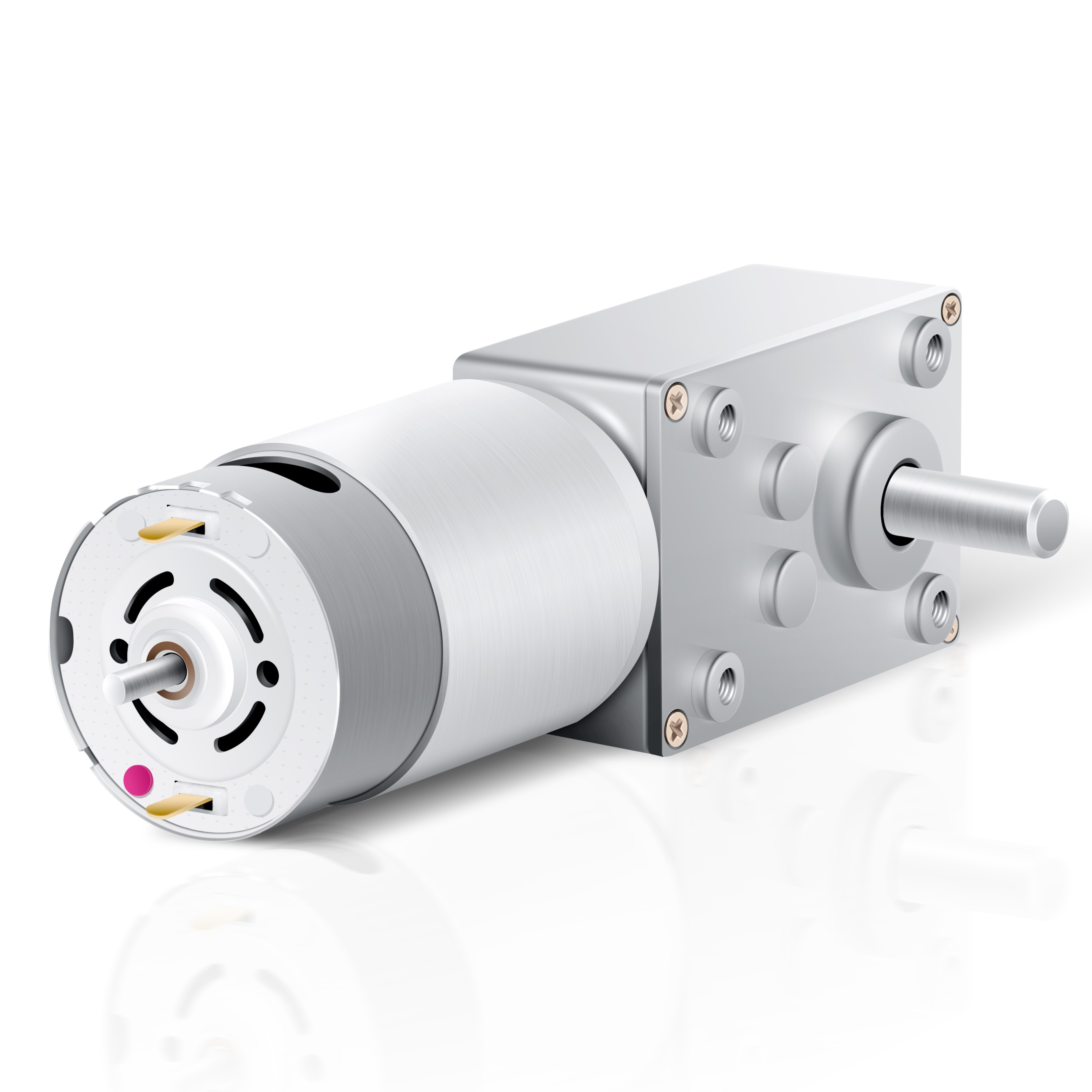

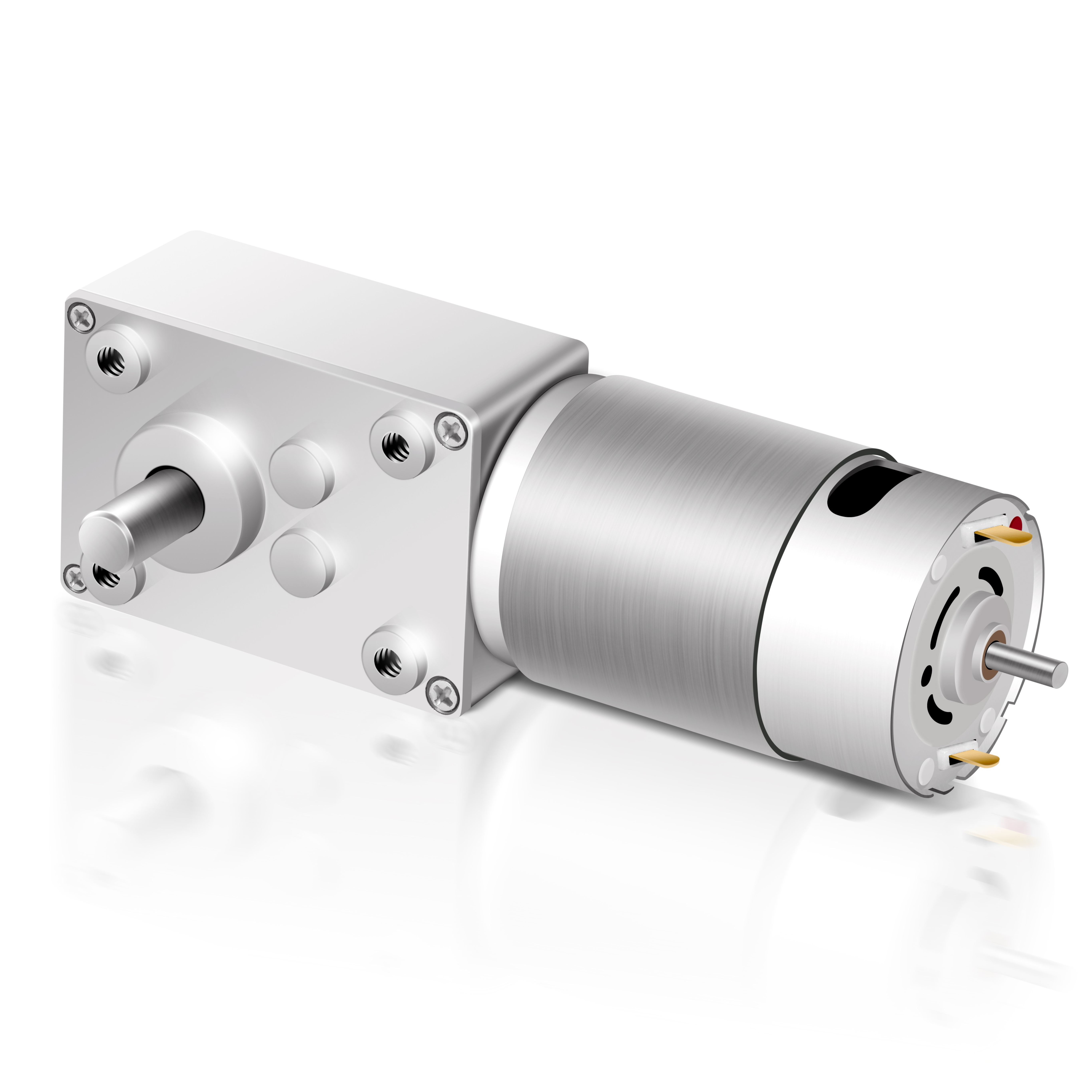

Factory 0.8nm Worm Gear Motor Brush Brushless Worm Gear Motor For For 3d Printing Pen

Product Description

Promotion

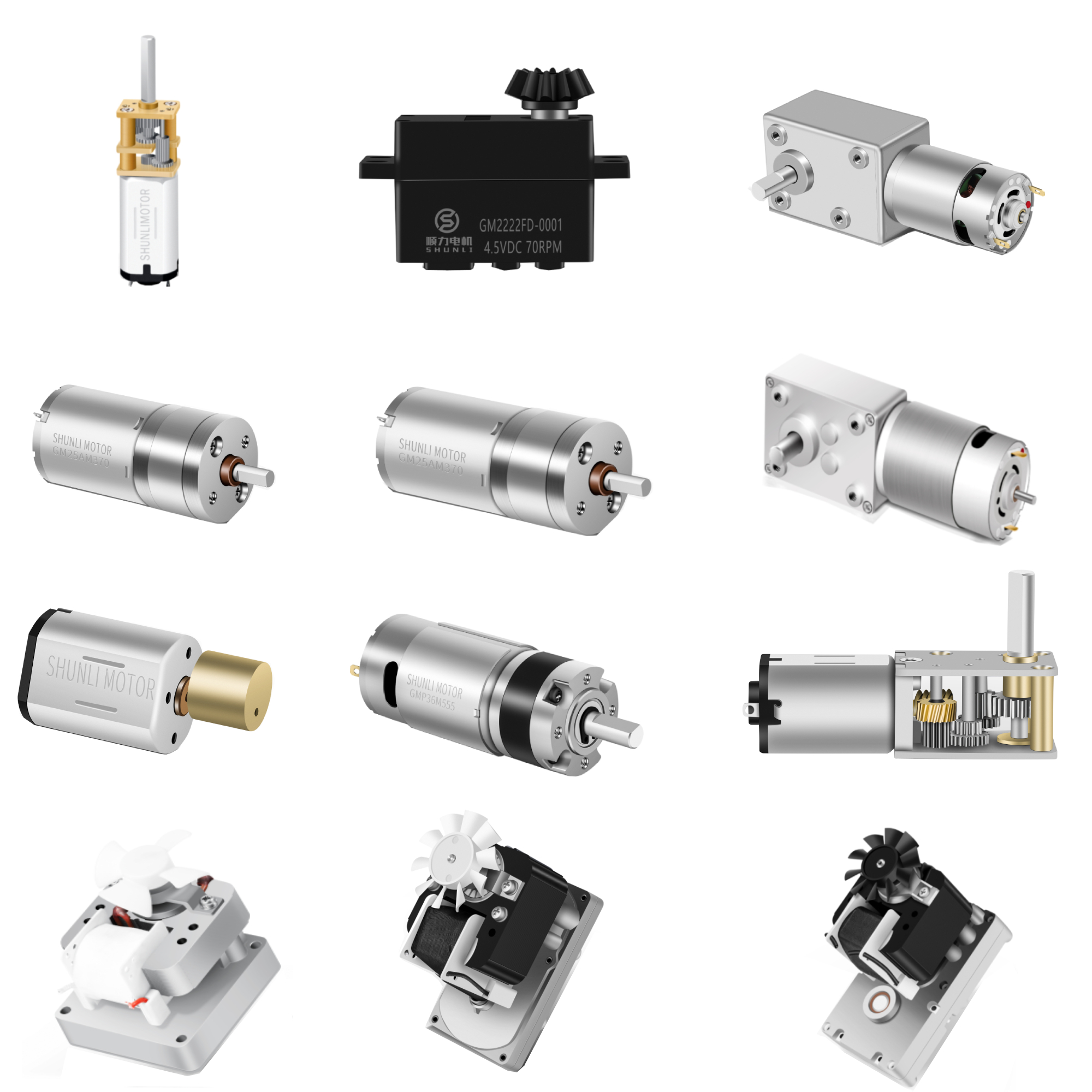

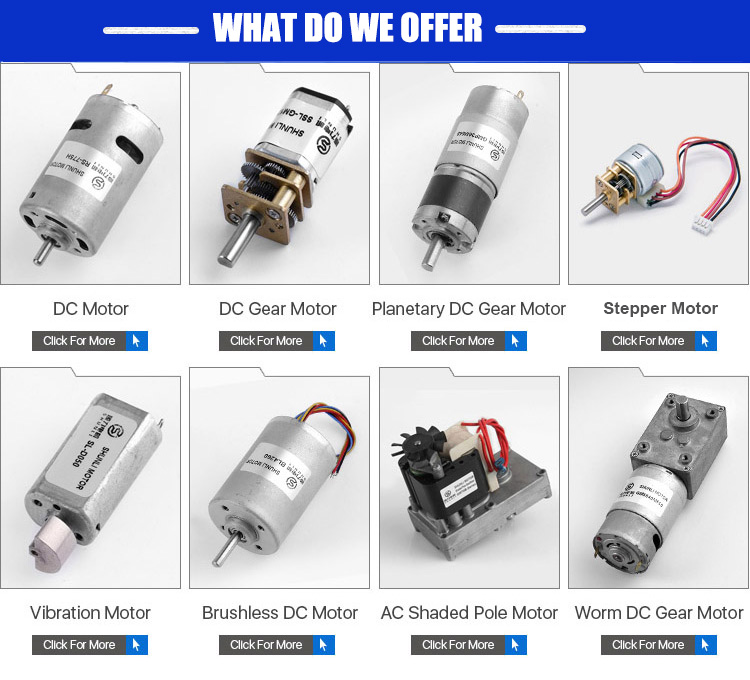

Promotion 1 Promotion 2 Product Range
Product Description

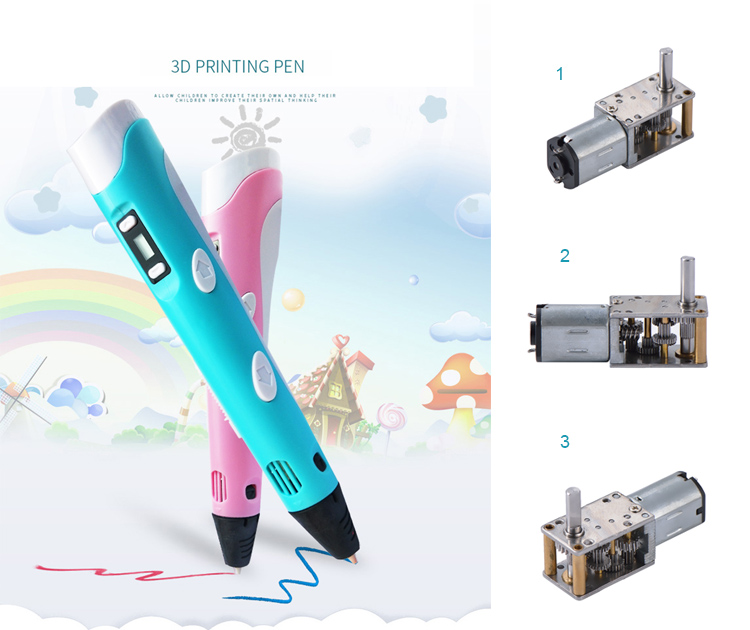

Product Details
Product Details
Specification - Gearbox Technical Data
Ratio Max. Rated Torque Max. Gear Breaked Torque Gearbox Efficiency
41K / 82K / 95K / 190K / 219K / 438K / 504K / 1007K 300~800 gf.cm 1000~3000 gf.cm 12%~35%
Gearmotor Technical Data
Gearmotor Model Ratio Rated Voltage (V) No-Load Rated Stall
Speed (RPM) Current (mA) Speed (RPM) Current (mA) Torque (gf.cm) Current (mA) Torque (gf.cm)
GM1220EMN20-95K 1 : 95 4.5 VDC 145 ≤ 70 122 ≤ 200 80 ≤ 700 750
GM1220EMN30-1007K 1 : 1007 12 VDC 25 ≤ 90 22 ≤ 230 1200 ≤ 400 4200

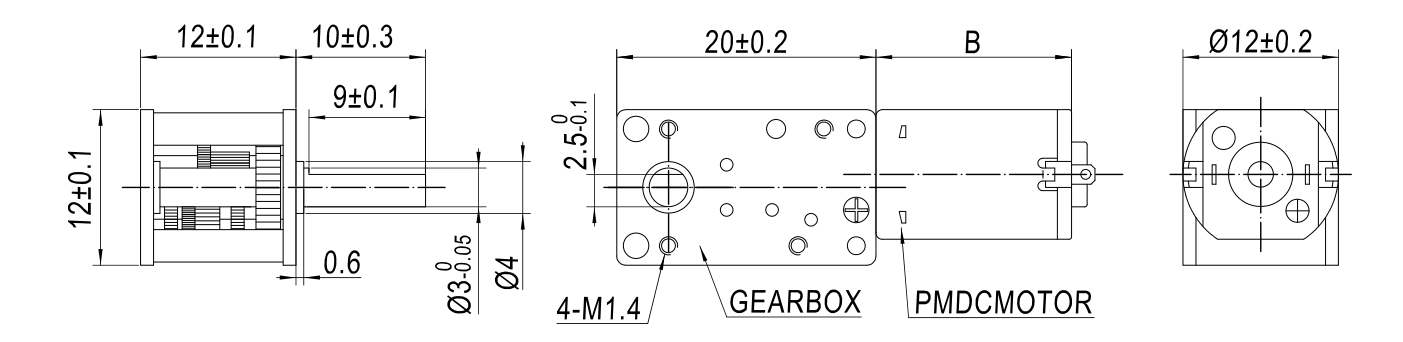

Technical Drawing
PMDC MOTOR Technical Data
Model Length "B"(mm) Voltage (V) No-Load Speed No-Load Current Rated Speed Rated Current Rated Torque
SL-N20 04514000 15 4.5 VDC 14000 ≤ 40 12000 ≤ 130 2.5 gf.cm
SL-N30 1225400 20 12 VDC 25400 ≤ 50 22600 ≤ 170 5 gf.cm
Application
Applications
Customer Evaluation
Evaluation
Certification
Certification 1 Certification 2
Our Company

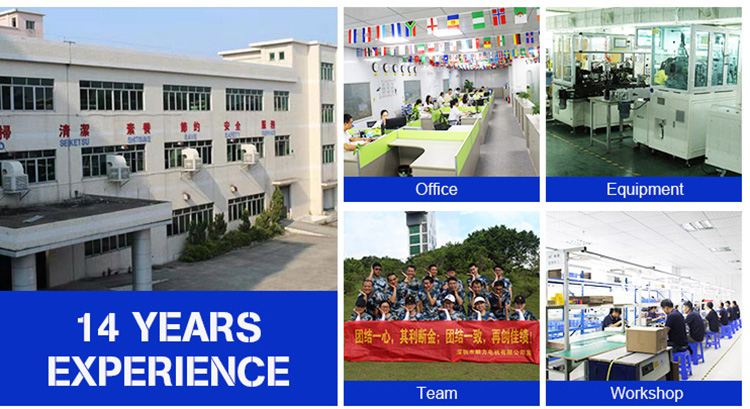

Company Facility Company Overview
Our company is a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures. Products are exported to more than 50 countries and regions at home and abroad.
Production Line
Frequently Asked Questions
1. Are you a trading company or a manufacturer?
We are a specialized factory focusing on micro DC motors and DC gear motors for more than 14 years.
2. What is the payment term for new customers?
We support multiple payment methods including online assurance orders (Master Card, Visa, etc.), PayPal, and TT for our customers' convenience.
3. Can you customize a motor if I cannot find a suitable one on the website?
Yes, we provide customization services to design and manufacture suitable motors according to specific customer requirements.
4. Do your motors come with official certifications?
Yes, our motors are certified with CE, FCC, ISO, and other relevant standards. We can also apply for other specific certificates if required.
5. How do you maintain quality control?

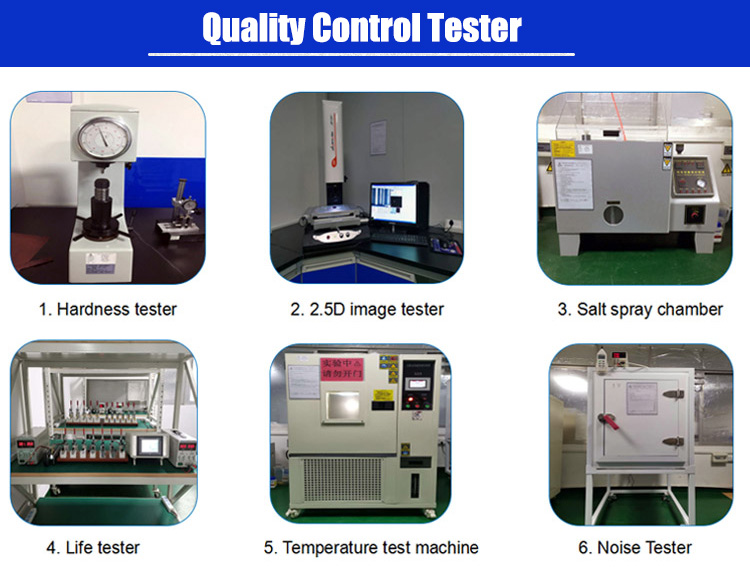

We utilize professional inspection staff at every stage of production. Our facility is equipped with advanced testing machines including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers to ensure complete product quality.
6. What are the typical applications for these worm gear motors?
These motors are widely used in 3D printing pens, smart home devices, medical equipment, and various high-end intelligent transmission structures.
