12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
1 / 4
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake
12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake

12v/24v/36v High Torque Dc Worm Gear Reducer Motor with Encoder or Brake

Send Inquiry

Product Description

Product Display

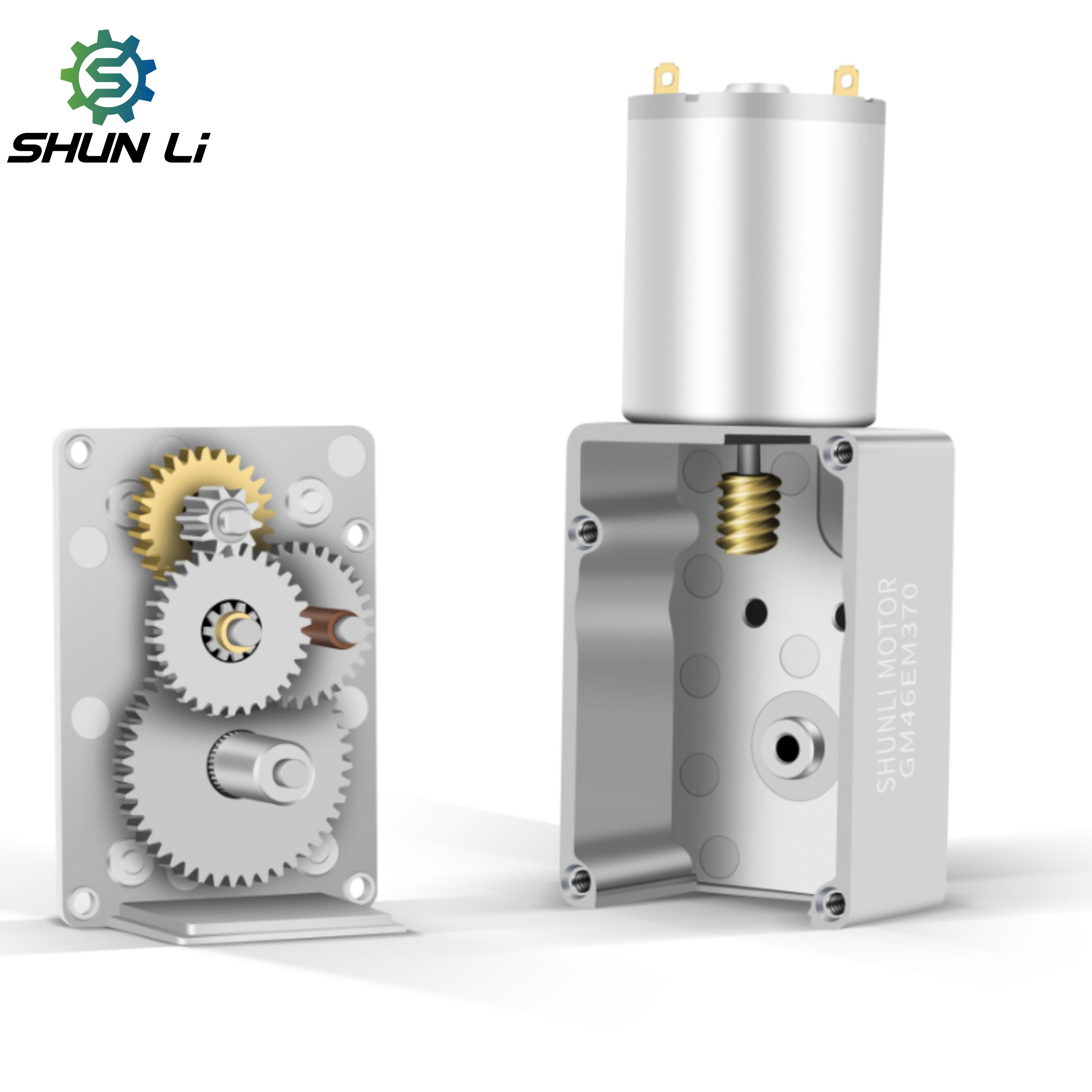

Gearbox Detail

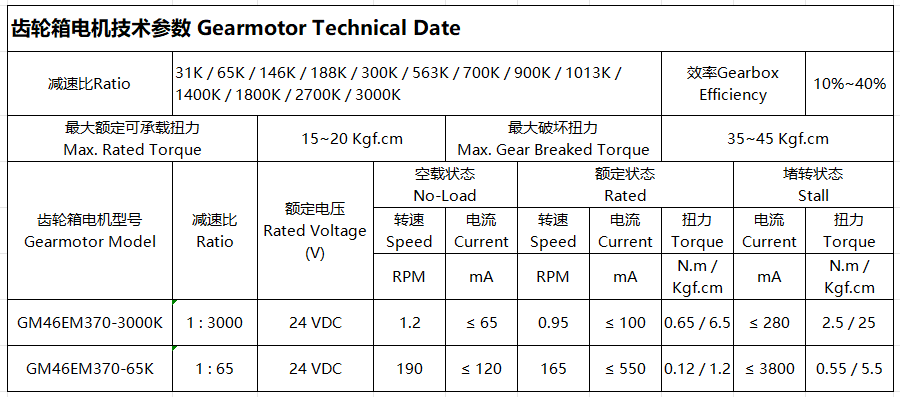

Technical Specifications
Product Model GM46EM370
Gearbox Length 46±0.5MM
Speed 1.2RPM~190RPM
Voltage 24V
Torque 0.65N.m/0.12N.m
Customization Transmission Dimensions and Motor Parameters can be customized
Dimensional Drawings

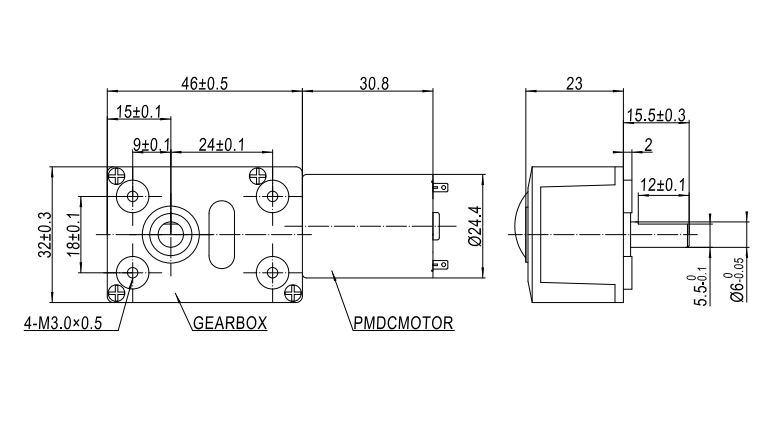

Dimension Drawing 1 Dimension Drawing 2
Product Application & Details
Frequently Asked Questions
1. Are you a trading company or a manufacturer?
We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
2. What are the payment terms for new customers?
We can process orders online via Assurance methods, supporting Master Card, Visa, etc. Customers can also pay via PayPal or TT.
3. Can you customize a motor if I cannot find a suitable one on the website?
Yes, we can customize a suitable motor according to our customer's specific technical requirements.
4. Do you have certificates for your motors?
Yes, we hold CE, FCC, ISO, and other relevant certificates. If you require specific additional certifications, we can apply for them for you.
5. How do you handle Quality Control?
We employ professional inspection staff on every production line process. Upon completion, we use high-precision machinery for testing, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
6. What is the standard lead time for customized orders?
Lead times depend on the complexity of the customization. Please contact our technical team with your parameters for a detailed production schedule.
