Flat Geared with Magnetic Encoder 12V 24V DC Motors With Gearbox
Flat Geared with Magnetic Encoder 12V 24V DC Motors With Gearbox
Flat Geared with Magnetic Encoder 12V 24V DC Motors With Gearbox
Flat Geared with Magnetic Encoder 12V 24V DC Motors With Gearbox
Flat Geared with Magnetic Encoder 12V 24V DC Motors With Gearbox
1 / 5
Flat Geared with Magnetic Encoder 12V 24V DC Motors With Gearbox
Flat Geared with Magnetic Encoder 12V 24V DC Motors With Gearbox
Flat Geared with Magnetic Encoder 12V 24V DC Motors With Gearbox
Flat Geared with Magnetic Encoder 12V 24V DC Motors With Gearbox
Flat Geared with Magnetic Encoder 12V 24V DC Motors With Gearbox

Flat Geared with Magnetic Encoder 12V 24V DC Motors With Gearbox

Send Inquiry

Product Description

Product Showcase Banner
Product Model Image
Product Model GM95SM545/555/575
Gearbox Length 95MM
Speed 14.5RPM~65RPM
Voltage 24V/24V/12V
Torque 6N.m/4 N.m/1.2 N.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized

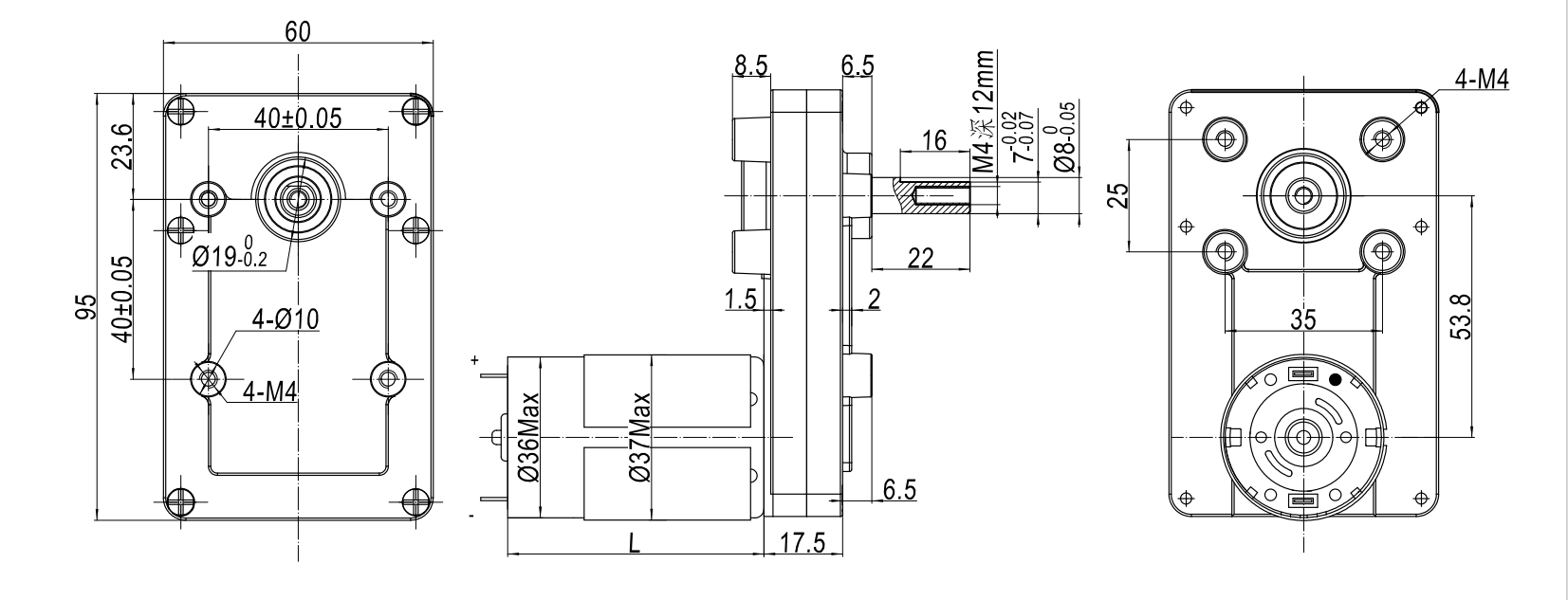

Product Technical Drawing

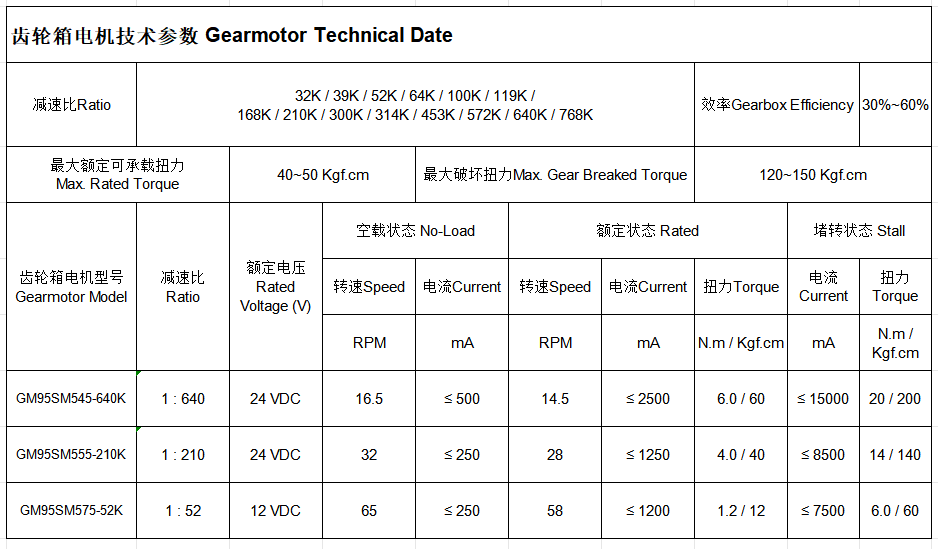

Product Specifications Chart
Product Application Gallery 1
Product Application Gallery 2
Product Application Gallery 3
Product Application Gallery 4
Product Application Gallery 5
Product Application Gallery 6
Frequently Asked Questions
QAre you trading company or manufacturer?
We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
QWhat is the payment term for a new customer?
We can draw up an Online Assurance Order for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
QI can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's requirements.
QDo you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have other certificates requirement, we can apply it for you.
QHow is your Quality Control?
We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
QWhat is the lead time for product orders?
The lead time depends on the specific order quantity and customization requirements. Generally, it ranges from 15 to 30 days.
