OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor
OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor
OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor
OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor
OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor
1 / 5
OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor
OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor
OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor
OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor
OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor

OEM Customized 12v 24 v 2.4w/28.8w Self-locking Function Drive Dc Worm Gear Motor

Send Inquiry

Product Description

Product Banner
★ Product Specifications
Product View
Product Model GM58EM545/555/575
Gearbox Length 58±0.5MM
Speed 92RPM~190RPM
Voltage 24V
Torque 0.65N.m / 0.35N.m
Support customization The Transmission Dimensions And Motor Parameters Can Be Customized
⚙ Technical Dimensions & Performance

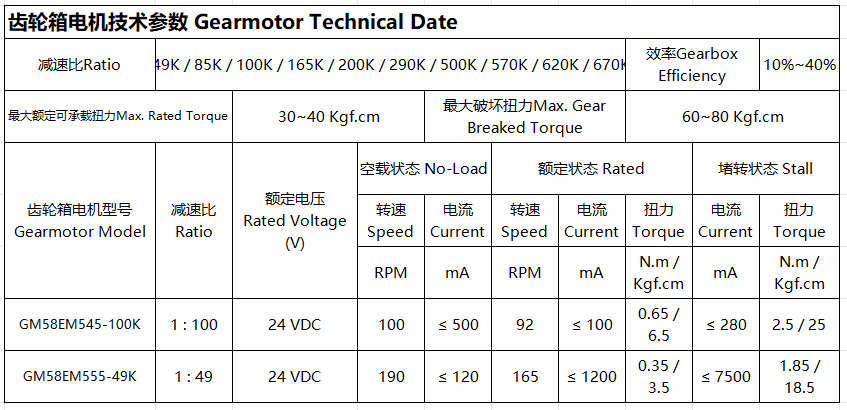

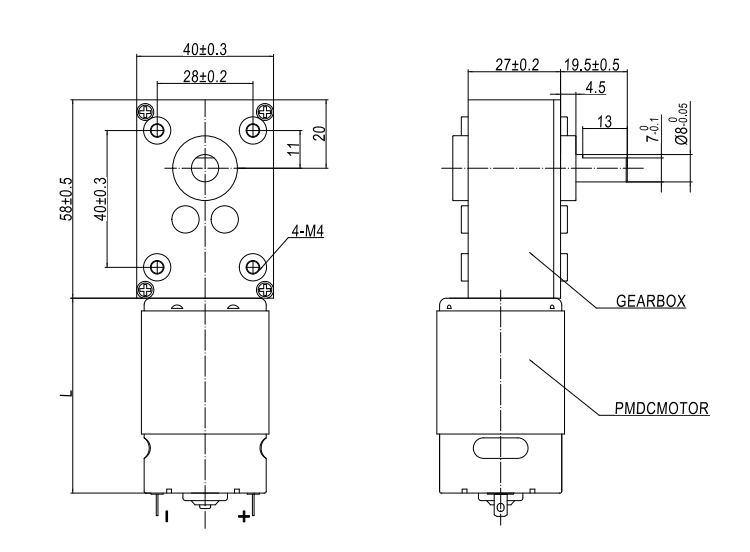

Technical Drawing Performance Data
📷 Product Gallery
Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
? Frequently Asked Questions
1. Are you a trading company or a manufacturer?
We are a factory specializing in micro DC motors and DC gear motors with over 14 years of industry experience.
2. What are the available payment terms for new customers?
We support online assurance orders which can be paid via Master Card or Visa. We also accept payments through PayPal and TT (Telegraphic Transfer).
3. Can you customize a motor if I cannot find a suitable model?
Yes, we provide full customization services to modify transmission dimensions and motor parameters according to your specific requirements.
4. What certifications do your products hold?
Our motors are certified with CE, FCC, and ISO standards. We can also apply for other specific certifications if required by your project.
5. How do you handle quality control during production?
We have professional inspection staff assigned to every production line process to ensure high standards at each stage of manufacturing.
6. What testing equipment is used for final product verification?
We utilize a comprehensive range of testing machinery, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
